Fig. 102: Removing Bolts And Front Door Window Regulator Motor
Courtesy of FORD MOTOR CO.

8. To install, reverse the removal procedure.

z

Cycle the window glass to make sure the gears engage.

REAR DOOR WINDOW REGULATOR MOTOR - SUPERCREW

Removal and Installation

1. Raise the rear door window glass to the full up position.

2. Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL -- SUPERCREW .

3. Remove the screws and the trim panel brace.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

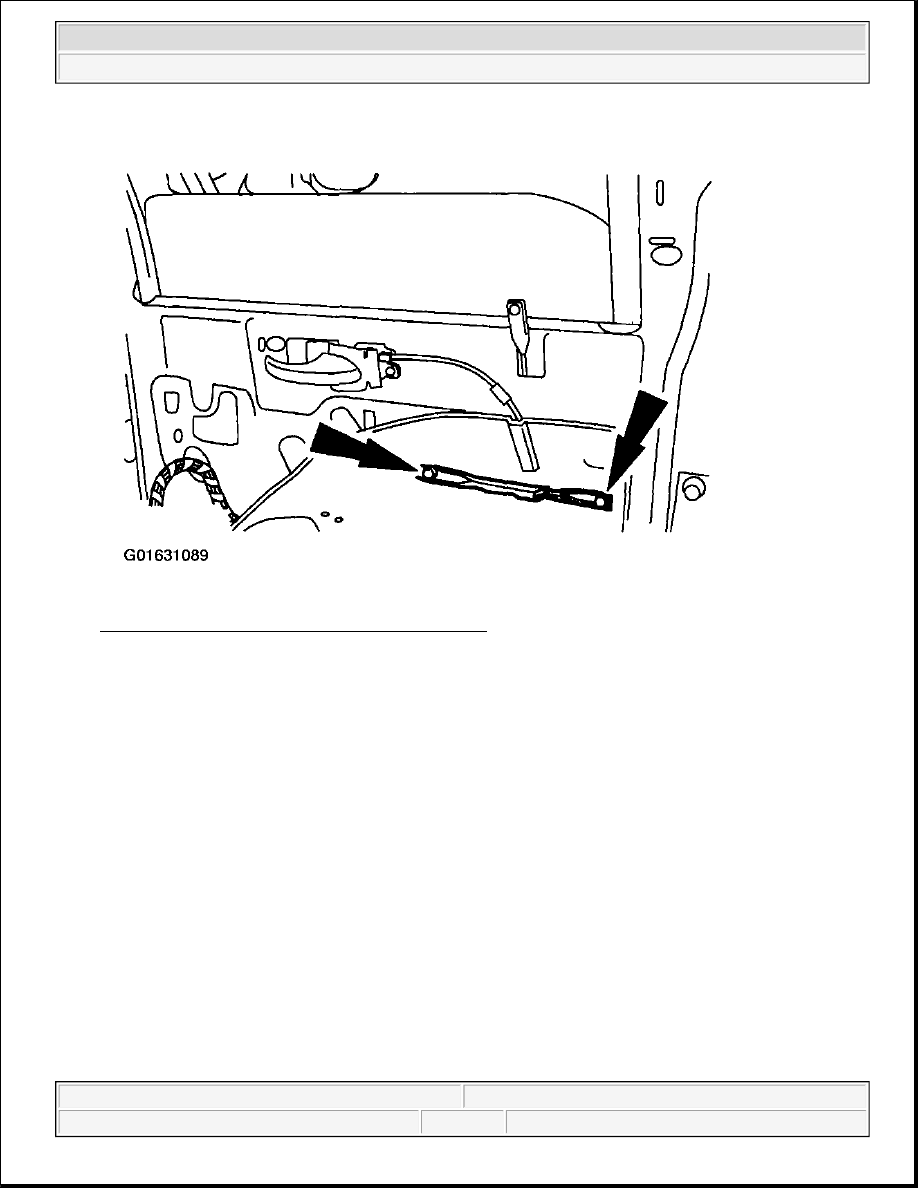

Fig. 103: Removing Screws And Trim Panel Brace
Courtesy of FORD MOTOR CO.

4. Remove the door speaker and adapter plate.

1. Remove the screws.

2. Remove the speaker and adapter plate as an assembly.

z

Disconnect the electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

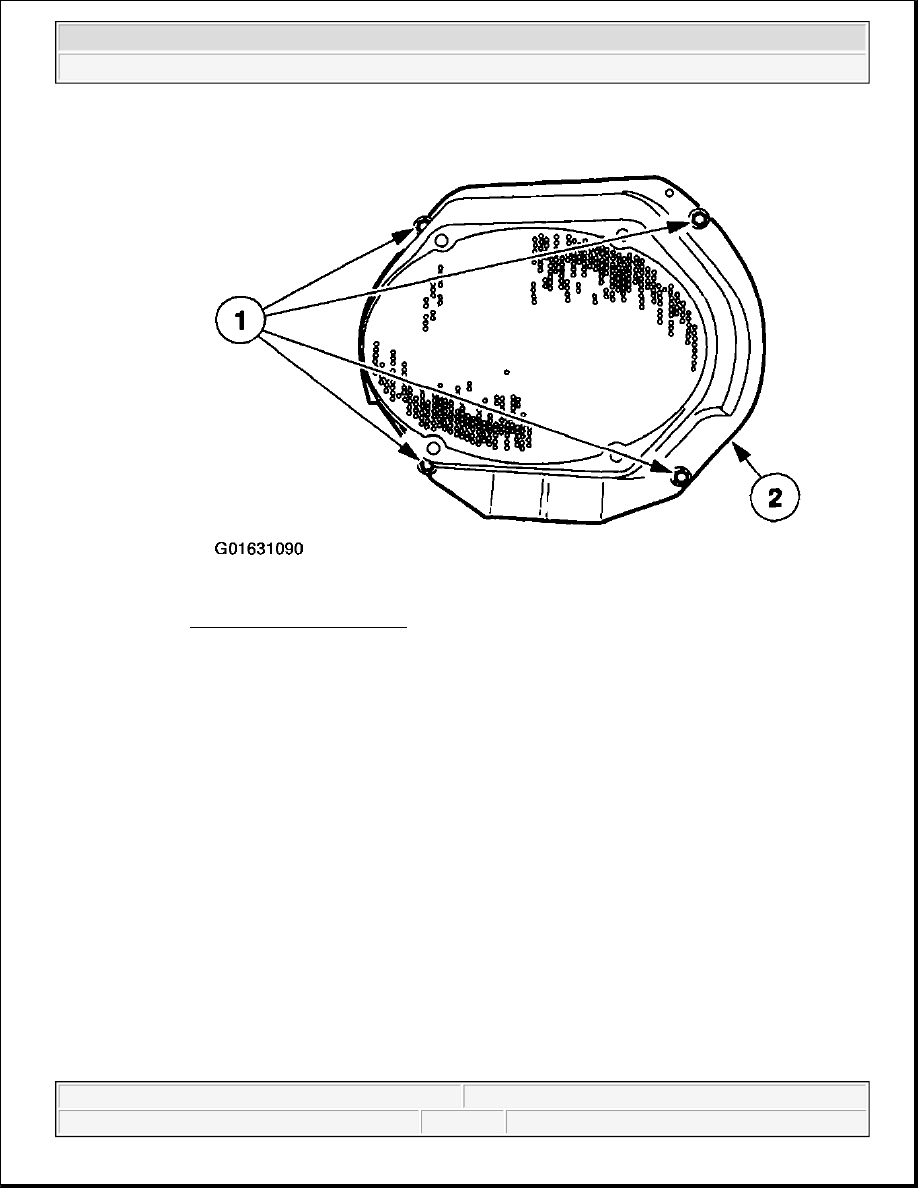

Fig. 104: Removing Speaker
Courtesy of FORD MOTOR CO.

5. Position the rear door water shield aside.

6. Disconnect the rear door window regulator electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

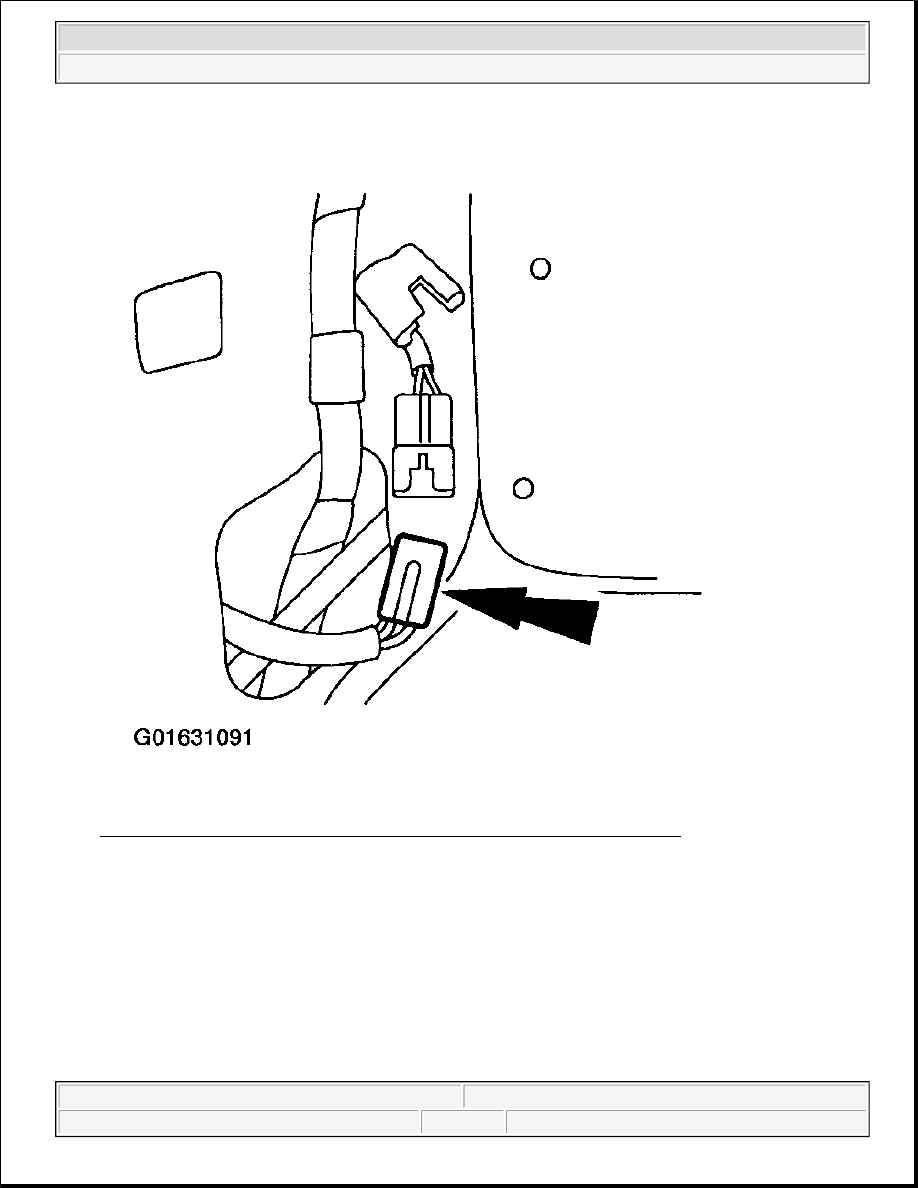

Fig. 105: Disconnecting Rear Door Window Regulator Electrical Connector
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the electrical connector is positioned aside before drilling.
