Fig. 94: Disconnecting Power Sliding Window Cable Retainer Clips
Courtesy of FORD MOTOR CO.

7. Disconnect the power sliding window cable retainer clips.

8. Remove the power sliding window motor and bracket.

1. Disconnect the electrical connector.

2. Remove the bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 95: Removing Power Sliding Window Motor And Bracket
Courtesy of FORD MOTOR CO.

NOTE:

RH side shown, LH side similar.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

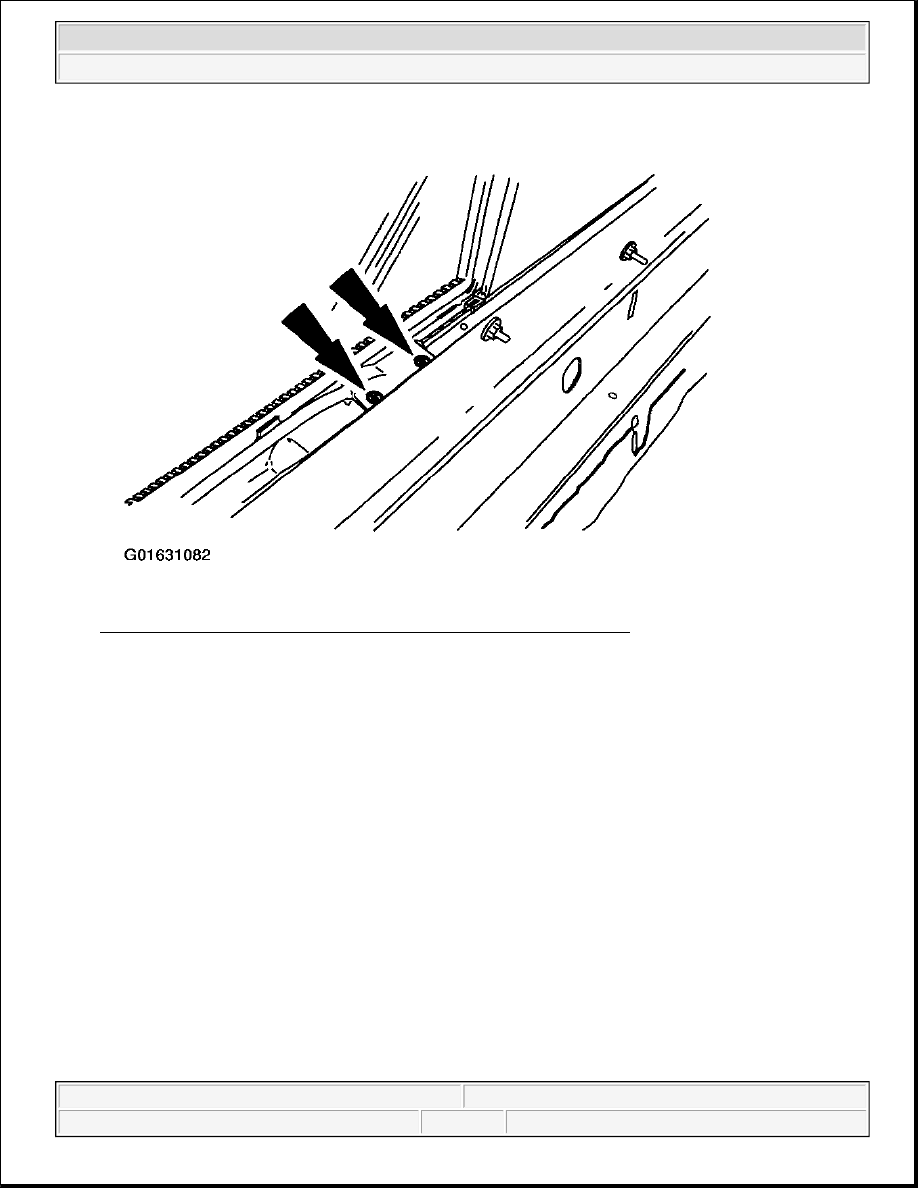

Fig. 96: Removing LH And RH Power Sliding Window Cable Screws
Courtesy of FORD MOTOR CO.

9. Remove the LH and RH power sliding window cable screws.

NOTE:

RH side shown, LH side similar.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

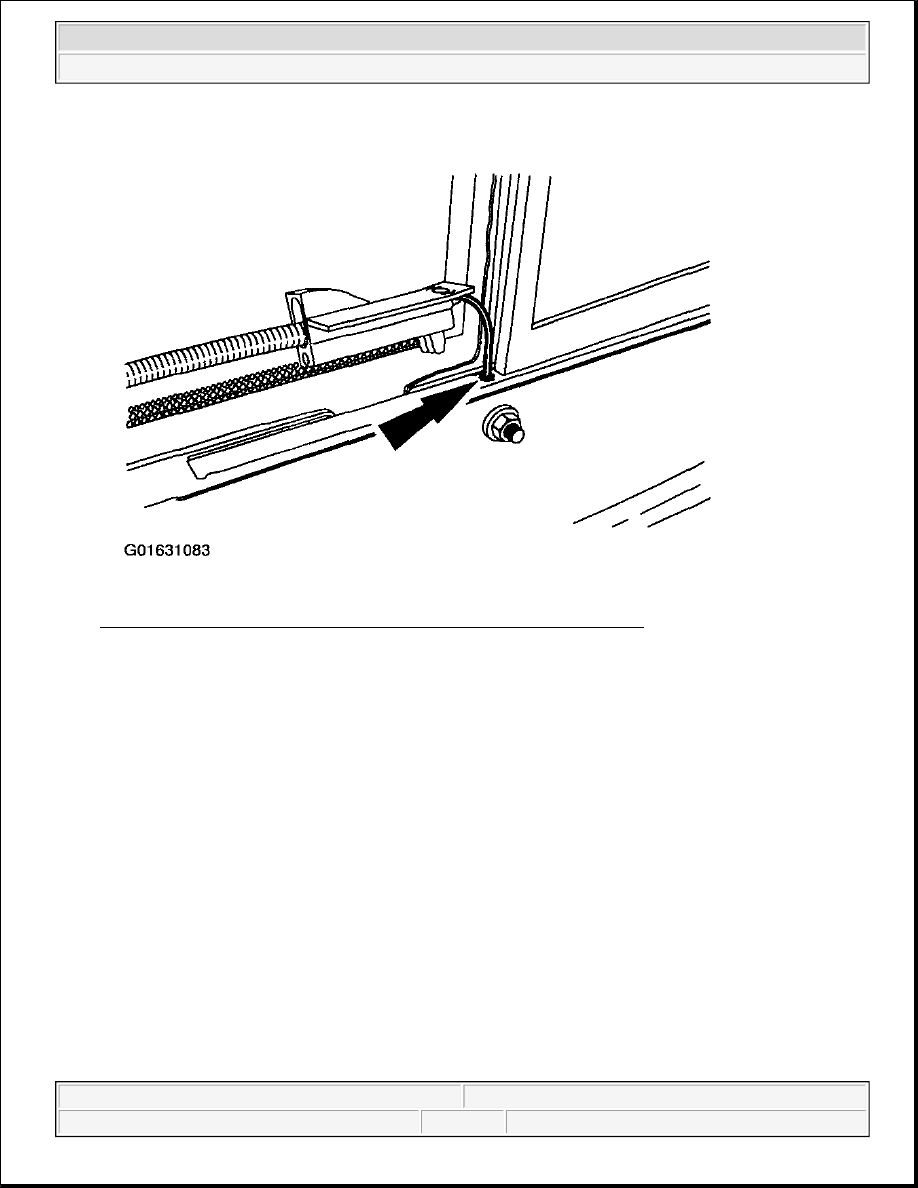

Fig. 97: Disconnecting LH And RH Rear Power Sliding Window Cable
Courtesy of FORD MOTOR CO.

10. Disconnect the LH and RH rear power sliding window cable and remove the rear power window motor

and regulator assembly.

11. To install, reverse the removal procedure.
