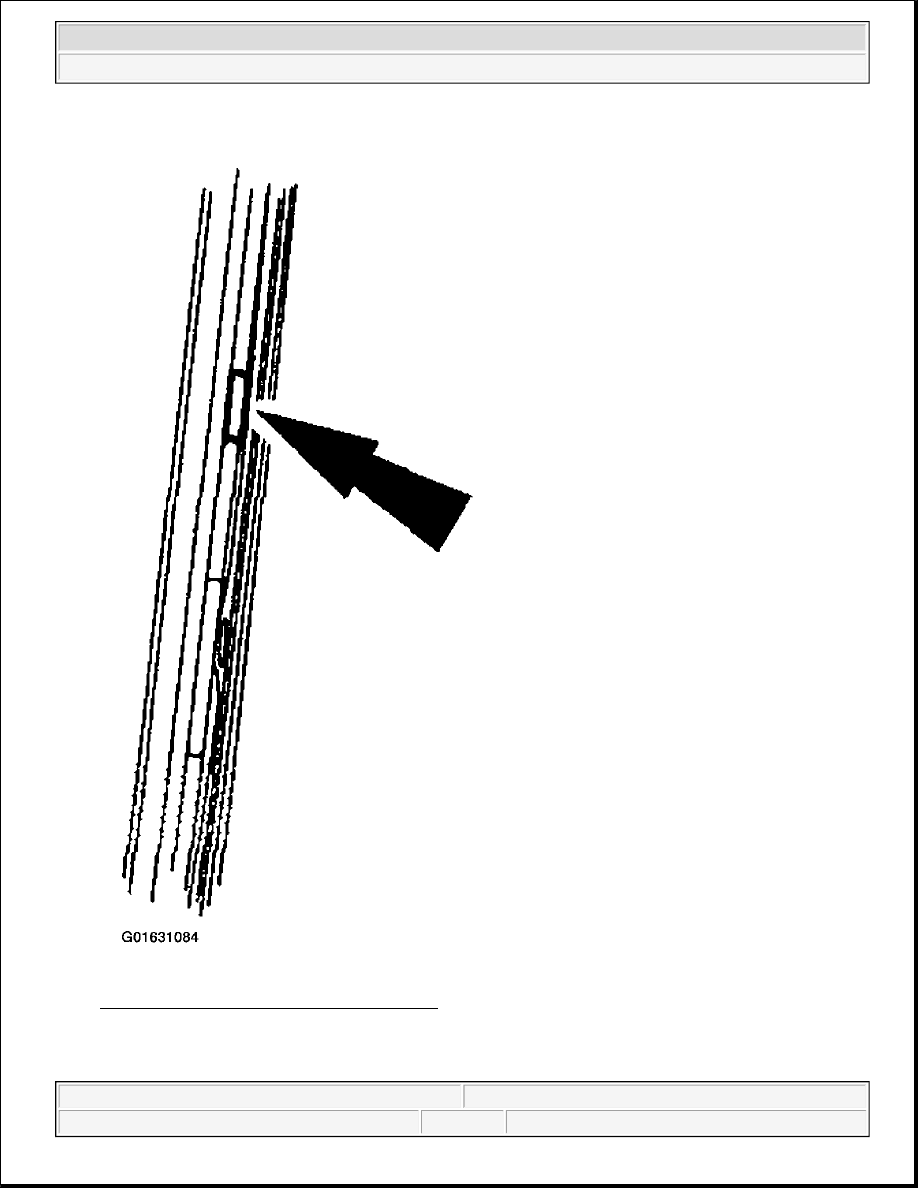

Fig. 98: Locating Rear Window Foam Butyl
Courtesy of FORD MOTOR CO.

FRONT DOOR WINDOW REGULATOR MOTOR



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Removal and Installation

All vehicles

1. Raise the front door window glass to the full up position.

2. Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL .

SuperCrew

3. Remove the screws and the trim panel brace.

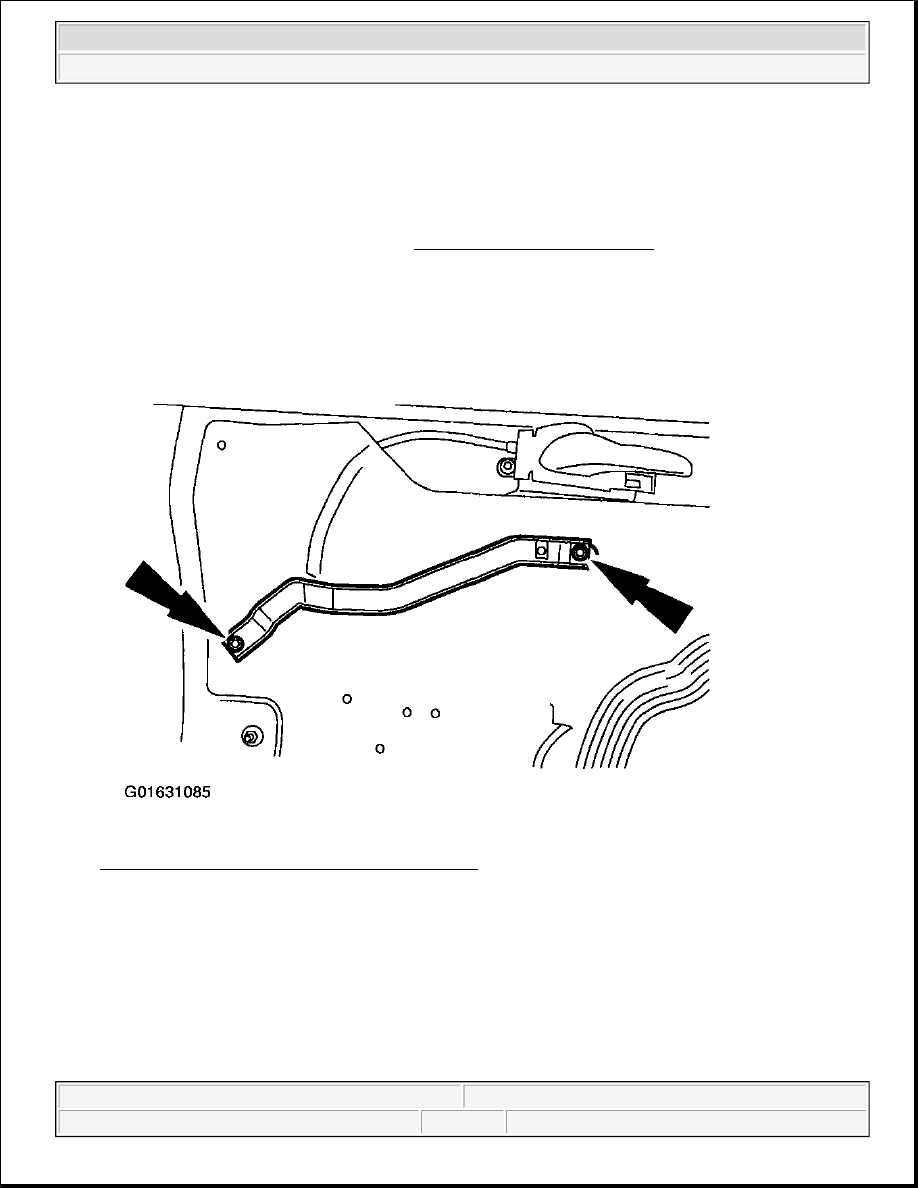

Fig. 99: Removing Screws And Trim Panel Brace
Courtesy of FORD MOTOR CO.

All vehicles

4. Position the water shield aside.

CAUTION: Make sure the electrical connector is positioned aside before drilling.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

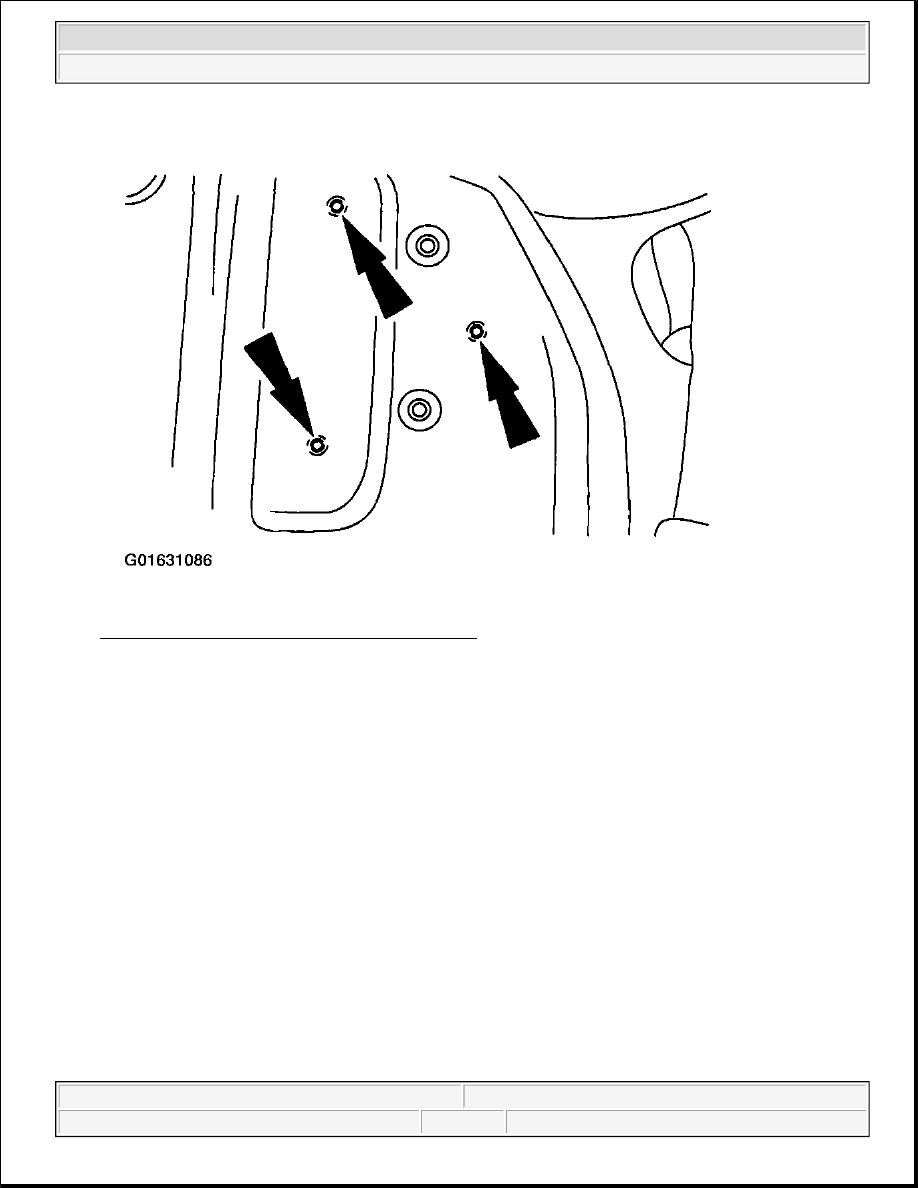

Fig. 100: Identifying Power Window Motor Bolts
Courtesy of FORD MOTOR CO.

5. To access the power window motor bolts, use a 19 mm (3/4-in) hole saw with a 8 mm (1/4-in) pilot to

drill three holes at the existing drill dimples on the door.

6. Disconnect the front door window regulator electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 101: Disconnecting Front Door Window Regulator Electrical Connector
Courtesy of FORD MOTOR CO.

7. Remove the bolts and the front door window regulator motor.
