Ford F150 Pickup. Instruction - part 268

Fig. 34: Sliding Roof Opening Panel Module From Retaining Bracket
Courtesy of FORD MOTOR CO.

5. Disconnect the electrical connectors and remove the roof opening panel module.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 35: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

6. To install, reverse the removal procedure.

DISASSEMBLY AND ASSEMBLY

DRIVE CABLES AND GUIDE RAILS

Disassembly and Assembly

1. Remove the roof opening panel frame. Refer to ROOF OPENING PANEL FRAME .

2. Remove the roof opening panel water trough.

1. Remove the bolts.

2. Remove the roof opening panel water trough.

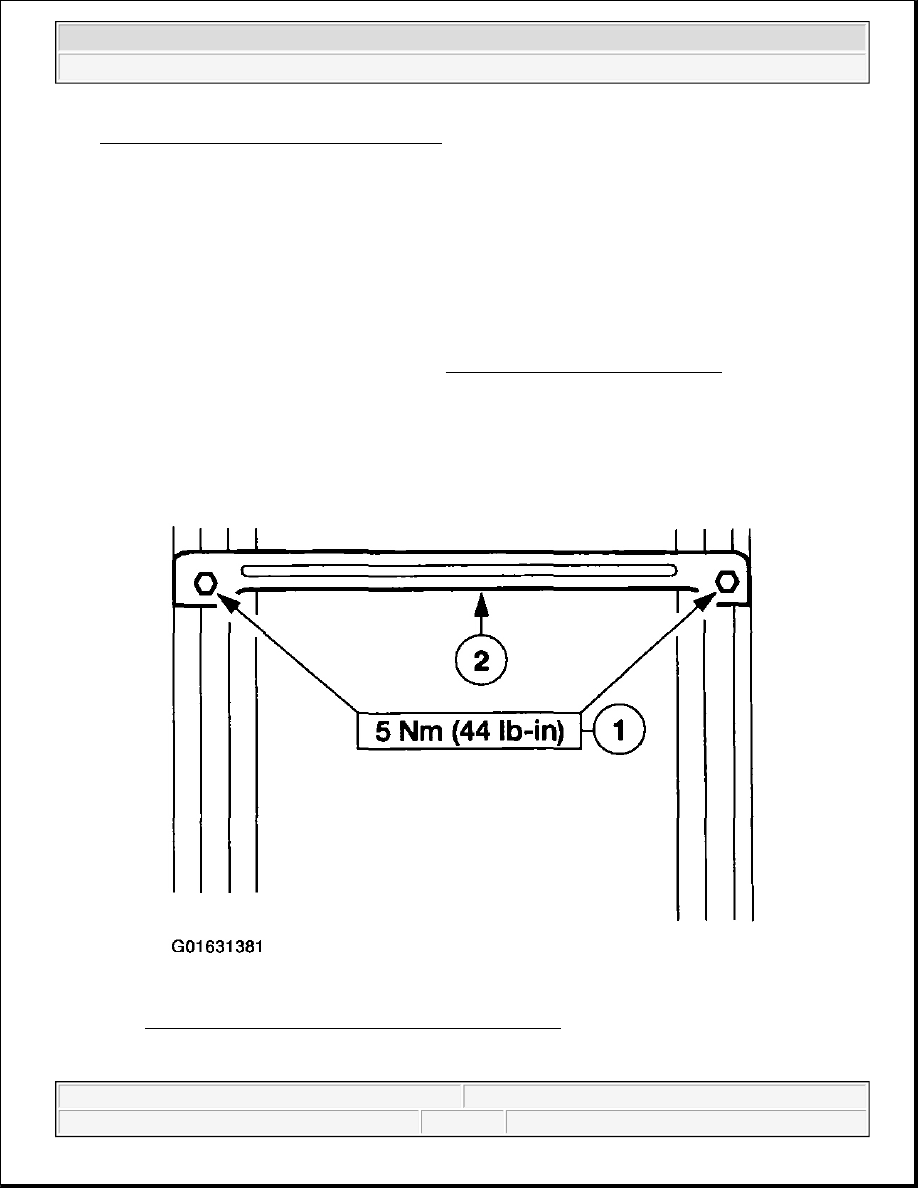

Fig. 36: Removing Roof Opening Panel Water Trough
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



3. Remove the roof opening panel water trough guide by sliding it forward and lifting it outward at the

notch in the roof opening panel tracks.

Fig. 37: Remove the roof opening panel water trough guide by sliding
Courtesy of FORD MOTOR CO.

4. To assemble, reverse the disassembly procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup
