2003 ACCESSORIES AND EQUIPMENT

Glass, Frames and Mechanisms - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

Fig. 1: Glass, Frames And Mechanisms General Specifications Chart
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

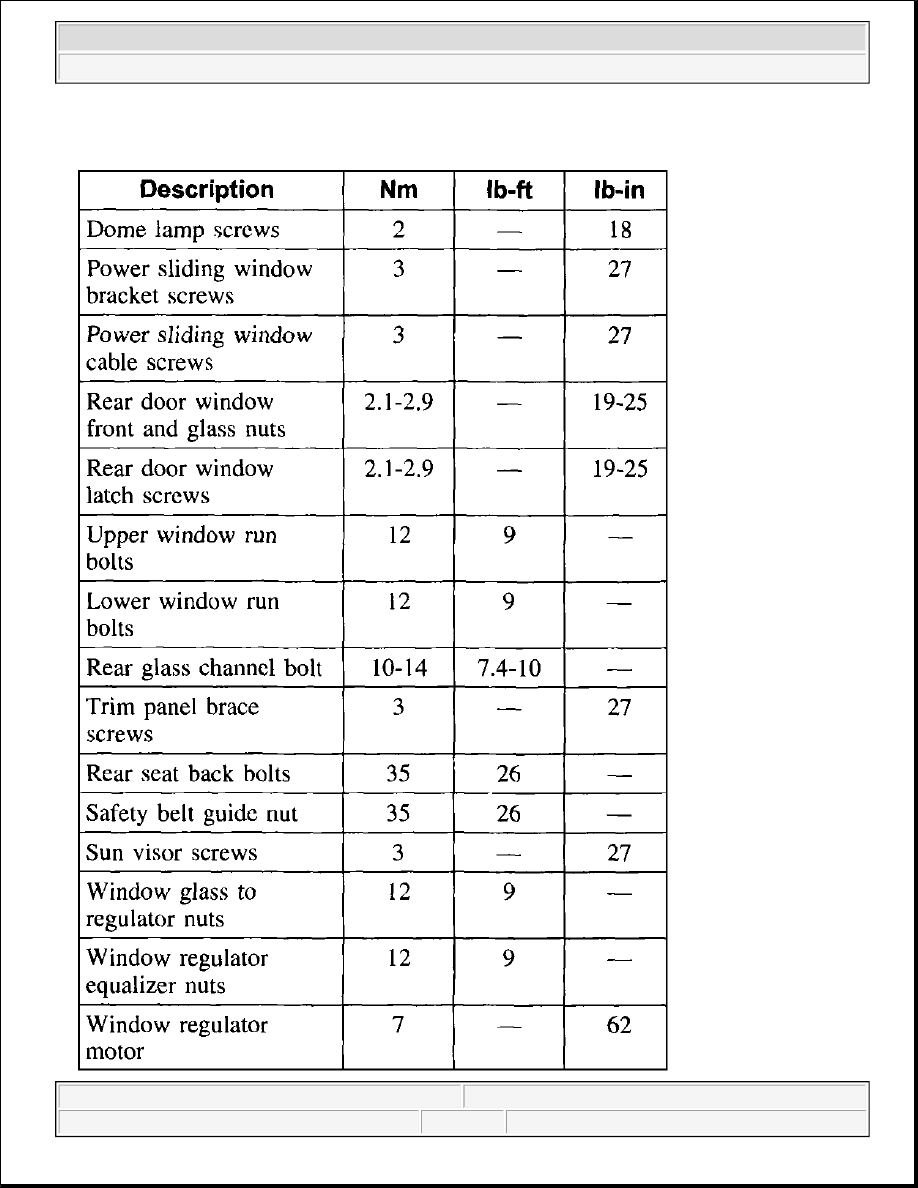

Fig. 2: Glass, Frames And Mechanisms Torque Specifications Chart (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

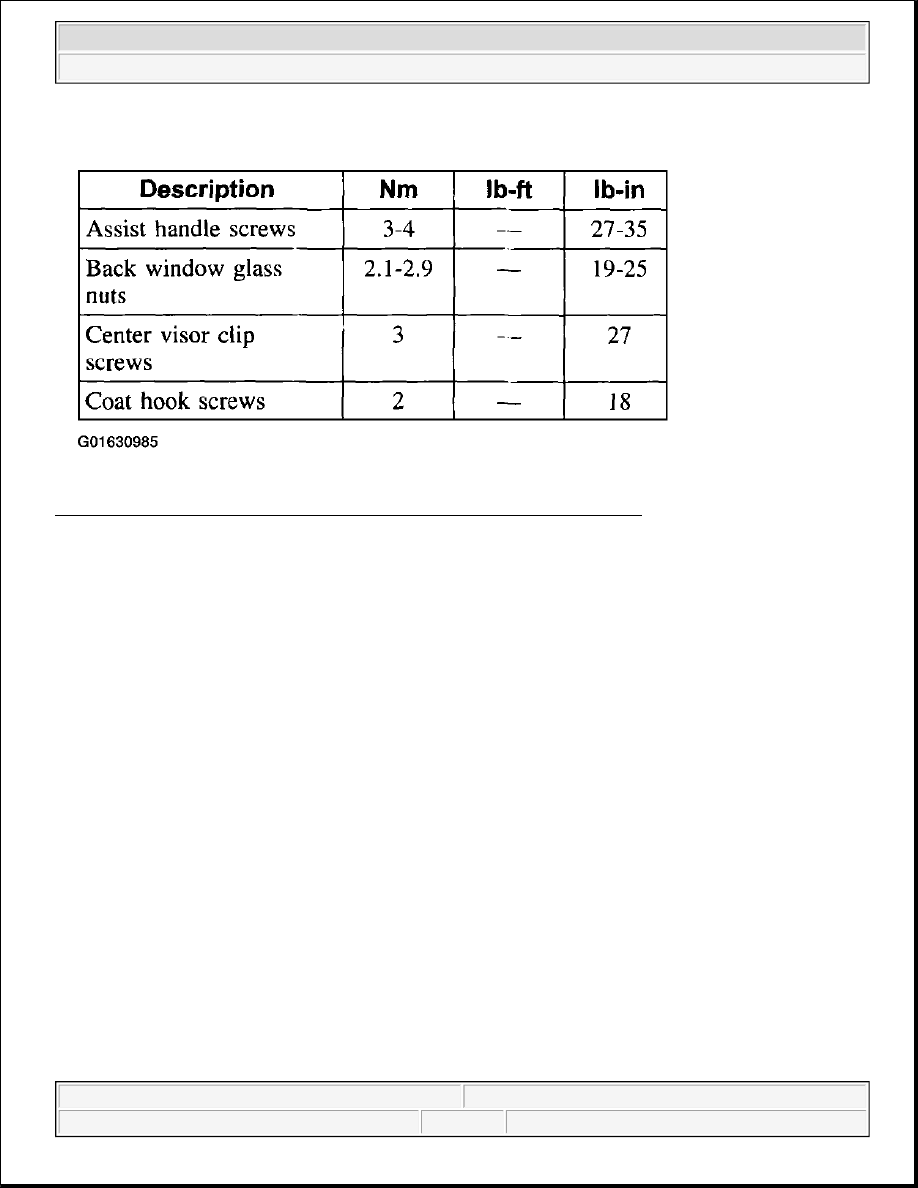

Fig. 3: Glass, Frames And Mechanisms Torque Specifications Chart (2 Of 2)
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

GLASS, FRAMES AND MECHANISMS

Windshield Glass

The windshield glass:

z

is standard plastic and glass laminate safety glass.

z

is bonded to the window opening flange with urethane adhesive.

Window Glass - Front Door

The front door glass:

z

is standard tempered safety glass.

z

can be lowered and raised with an optional power window regulator or with a instruction window regulator.

Window Glass - Rear Door, SuperCrew

The rear door glass:

z

is standard tempered safety glass.

z

can be lowered and raised with power window regulator.

Window Glass - Rear Side

The rear side glass:

z

is located on the rear side doors.

z

windows may be opened or closed and locked using the rear window latch.

Rear Window Glass

The rear glass:

z

is standard tempered safety glass.

z

is fixed to the rear of the cab with nuts.

z

may be equipped with an optional sliding glass.

z

may be equipped with an optional power sliding rear glass.

z

may be equipped with an optional rear window defrost (fixed window only).
