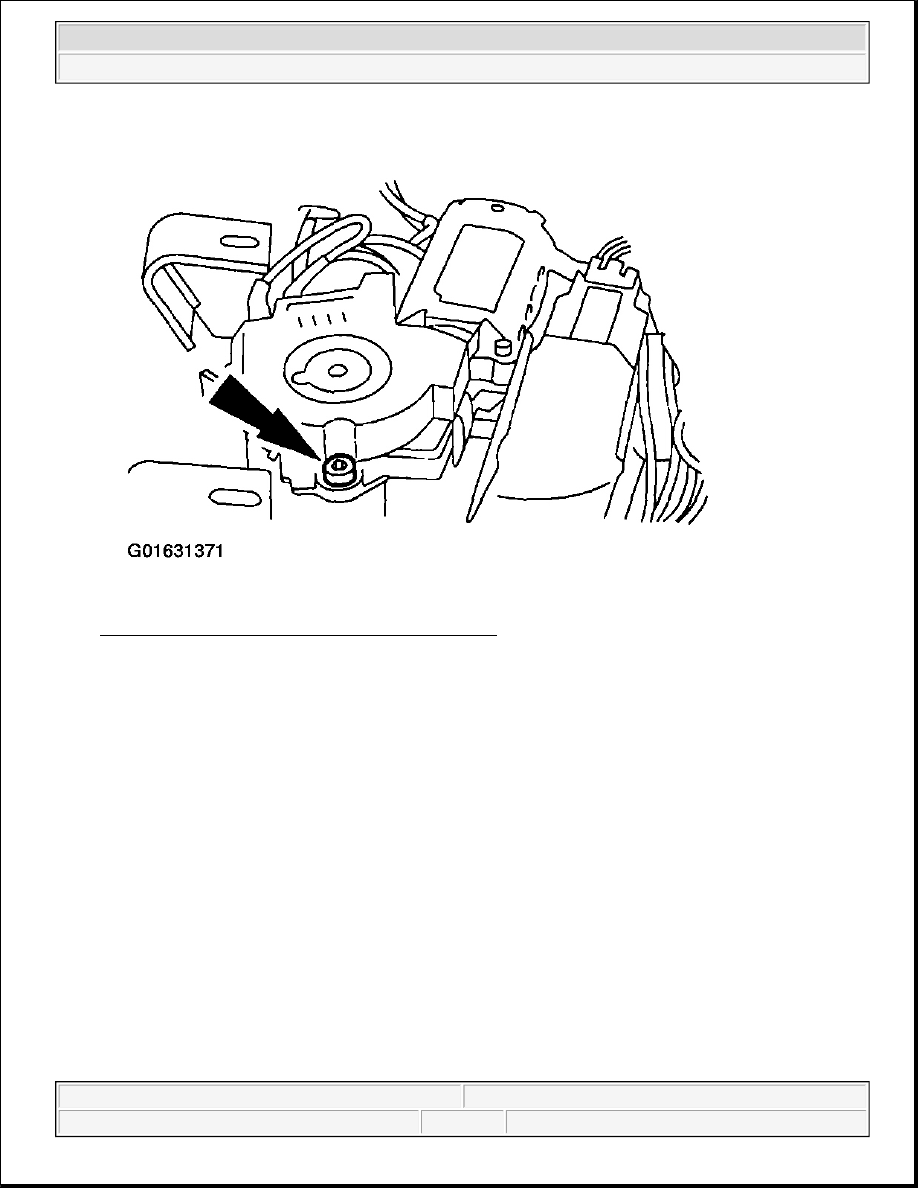

Fig. 26: Removing Roof Opening Panel Motor Bolts
Courtesy of FORD MOTOR CO.

3. Disconnect the electrical connector and remove the roof opening panel motor (15790).



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



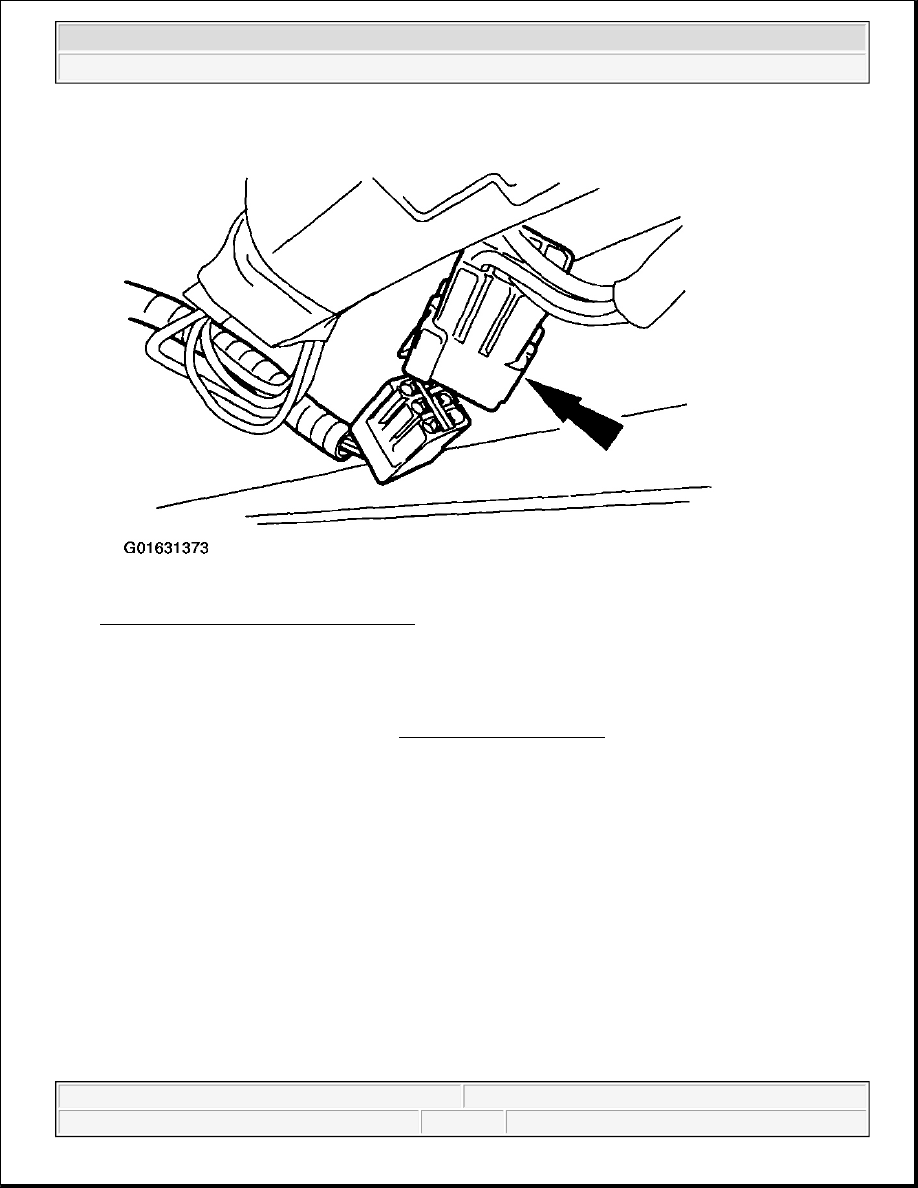

Fig. 27: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

Installation

NOTE:

The roof opening panel module must be installed prior to motor installation.
Refer to ROOF OPENING PANEL MODULE .

NOTE:

The roof opening panel should be in the closed position.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 28: Connecting Electrical Connector
Courtesy of FORD MOTOR CO.

1. Connect the electrical connector.

2. Cycle the roof opening panel motor until it stops in the closed position.

3. Remove the roof opening panel. Refer to ROOF OPENING PANEL .

4. Insert two 1/8 inch diameter pins through both portions of the roof opening panel lifter assemblies.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 29: Removing Roof Opening Panel
Courtesy of FORD MOTOR CO.

5. Install the roof opening panel motor.

z

Install the three bolts.

NOTE:

It may be necessary to rotate the roof opening panel motor slightly to
engage the drive splines.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup
