Ford F150 Pickup. Instruction - part 261

Inspection and Verification

Special Tool(s)

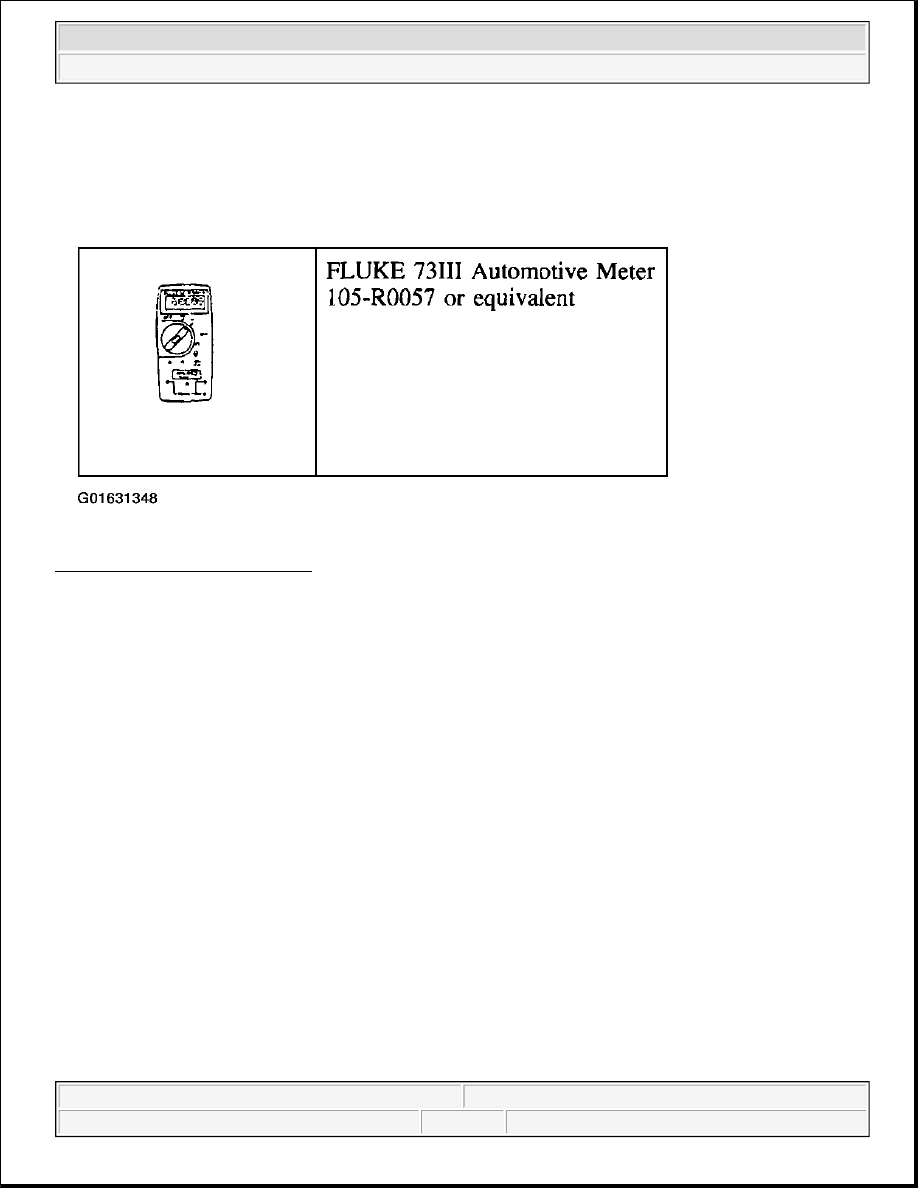

Fig. 3: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Visual Inspection Chart



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 4: Visual Inspection Chart
Courtesy of FORD MOTOR CO.

1. Verify the customer concern by operating the system.

2. Visually inspect for obvious signs of mechanical or electrical damage.

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

4. If the concern is not visually evident, verify the symptom and GO to Symptom Chart.

Symptom Chart



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 5: Symptom Chart
Courtesy of FORD MOTOR CO.

Pinpoint Tests

PINPOINT TEST A: ROOF OPENING PANEL HAS EXCESSIVE WIND NOISE



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 6: Pinpoint Test A: Roof Opening Panel Has Excessive Wind Noise (A1 & A2)
Courtesy of FORD MOTOR CO.

PINPOINT TEST B: ROOF OPENING PANEL LEAKS

Fig. 7: Pinpoint Test B: Roof Opening Panel Leaks (B1 - B4)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup
