Fig. 378: Removing Child Safety Seat Tether Anchor
Courtesy of FORD MOTOR CO.

11. Remove the child safety seat tether anchor.

12. To assemble, reverse the disassembly procedure.

z

Make sure the lower center screw goes through the backrest support, child safety seat tether anchor
and seat backrest frame.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

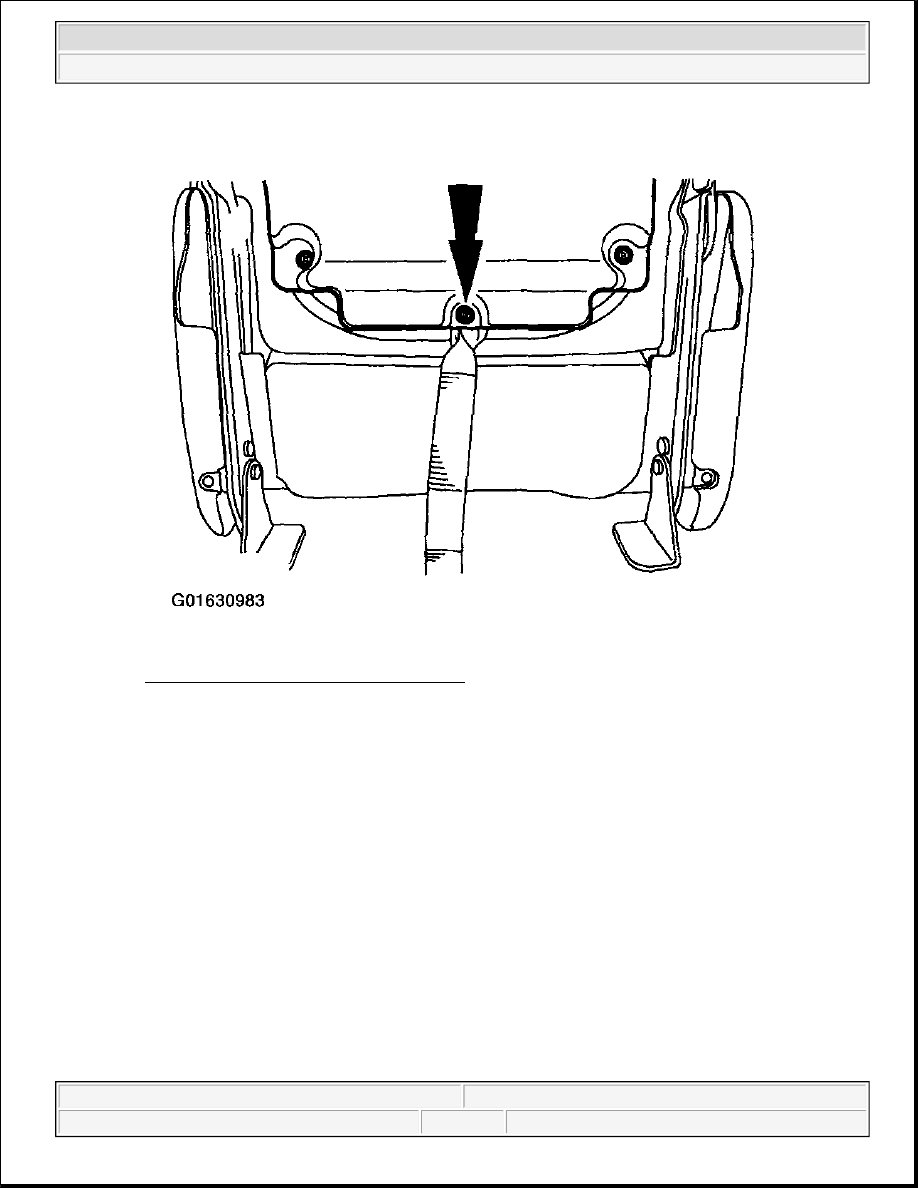

Fig. 379: Identifying Lower Center Screw
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



2003 ACCESSORIES AND EQUIPMENT

Roof Opening Panel - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

Fig. 1: General Specifications
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

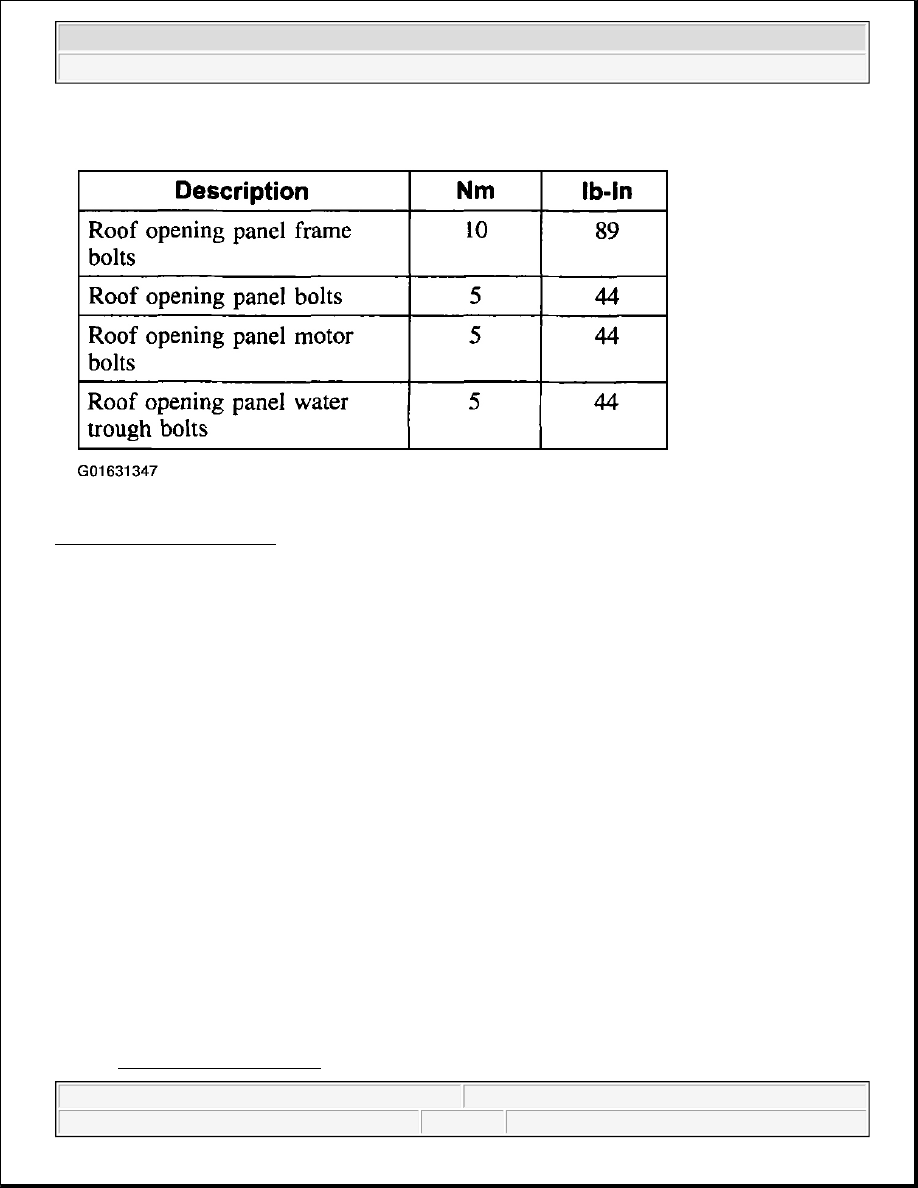

Fig. 2: Torque Specifications
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

ROOF OPENING PANEL

The roof opening panel system consists of:

z

roof opening panel motor

z

roof opening panel module

z

roof opening panel

z

overhead console

z

roof opening panel frame

z

roof opening panel frame drain hose

z

roof opening panel water trough

z

roof opening panel air deflector

z

roof opening panel lifter assembly

DIAGNOSIS AND TESTING

ROOF OPENING PANEL

Refer to POWER TOP/SUNROOF for schematic and connector information.
