Ford F150 Pickup. Instruction - part 258

Fig. 370: Pulling Headrest From Seat Backrest
Courtesy of FORD MOTOR CO.

3. Remove the seat backrest panel.

1. Pull the trim cover up to expose the backrest panel screws.

2. Remove the backrest panel screws.

3. Remove the backrest panel.

CAUTION: Use care when separating the seat trim cover from the foam pad

hook and loop strip. The hook and loop strip can be torn from
the foam pad.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 371: Removing Backrest Panel
Courtesy of FORD MOTOR CO.

NOTE:

To aid installation, identify the head restraint guides as inboard and
outboard before removal.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

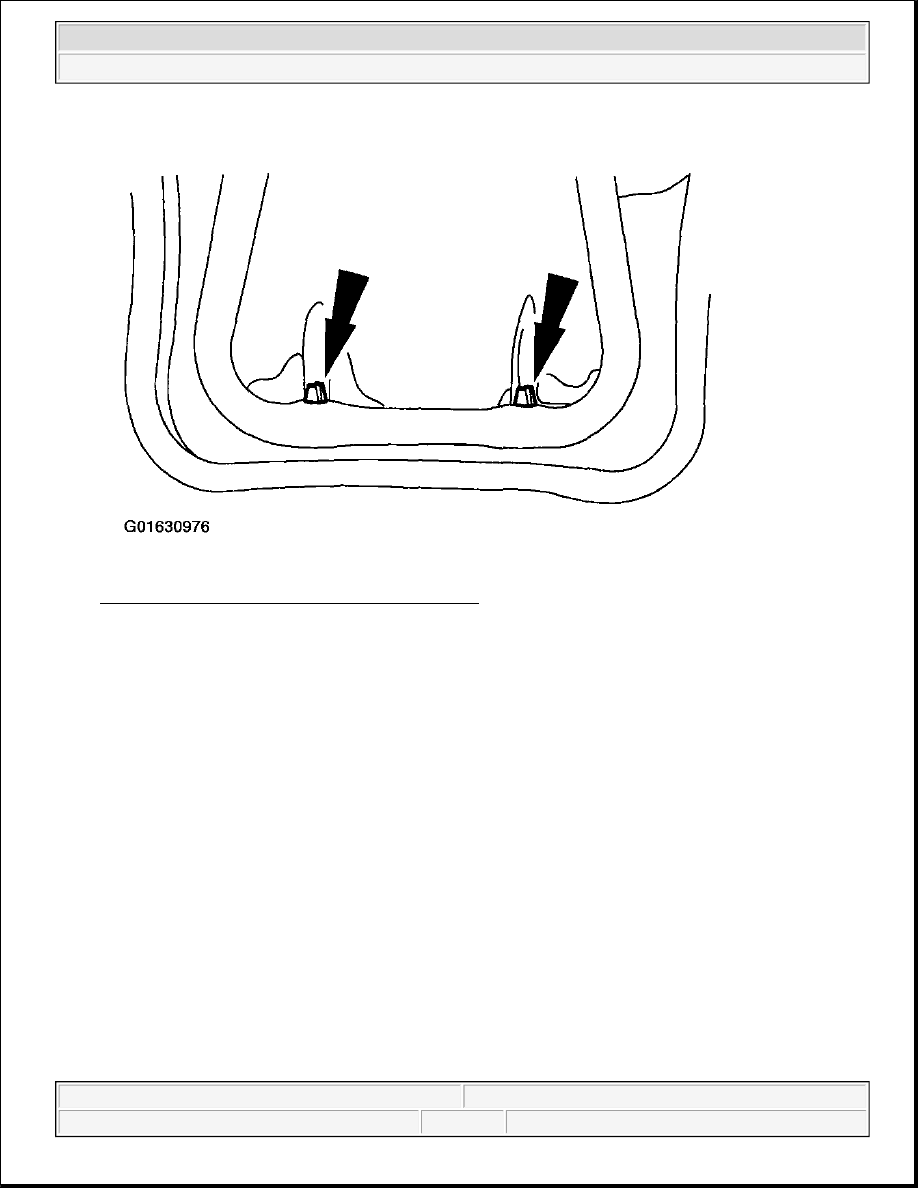

Fig. 372: Pushing Guides Out Of Backrest Frame
Courtesy of FORD MOTOR CO.

4. Squeeze the tips of the head restraint guides together. Push the guides out of the backrest frame.

5. Lift the backrest frame from the foam pad.

NOTE:

To aid installation, identify the trim aprons as inboard and outboard before
removal.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

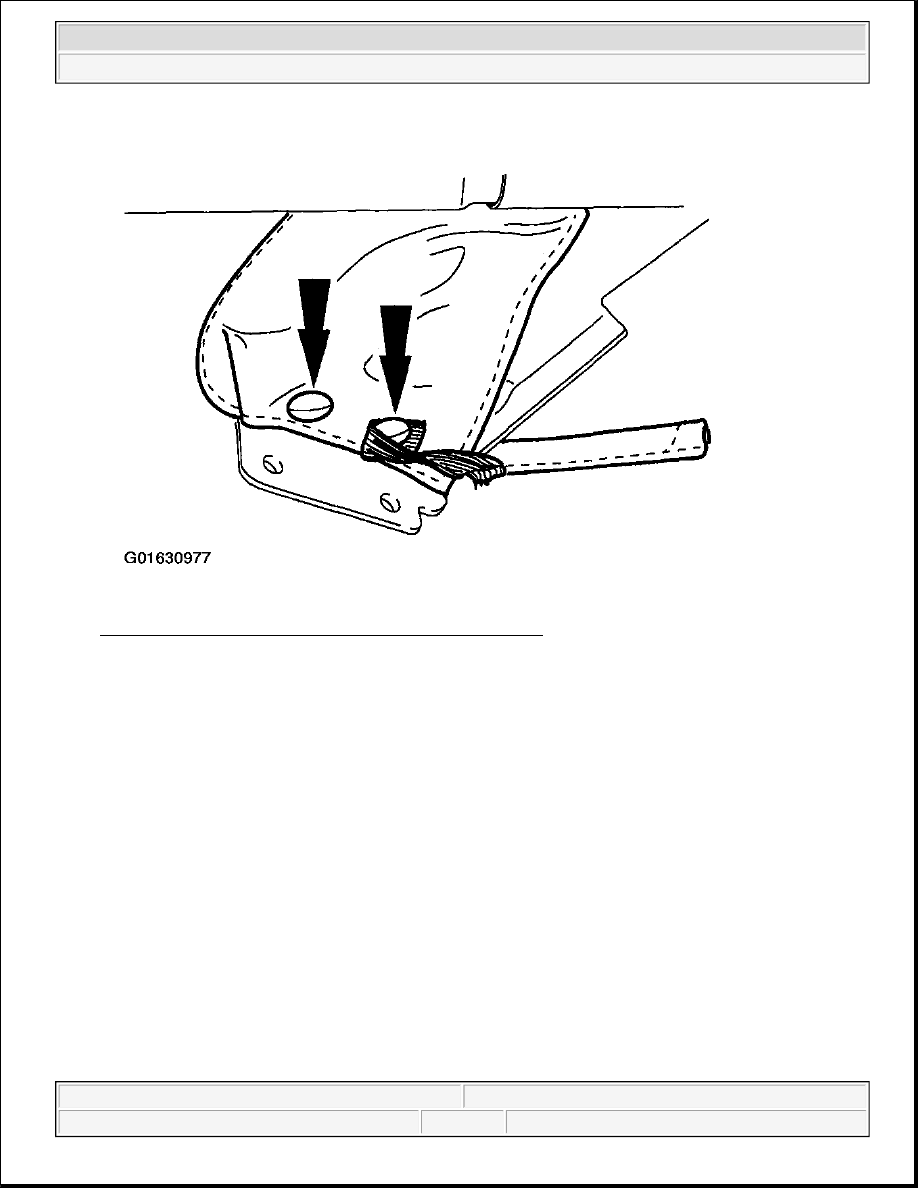

Fig. 373: Releasing Pin-Type Retainers And Trim Aprons
Courtesy of FORD MOTOR CO.

6. Release the four pin-type retainers (two shown) and remove the two trim aprons (outboard side shown).

7. Release the trim positioning tabs and remove the inboard latch trim cover.
