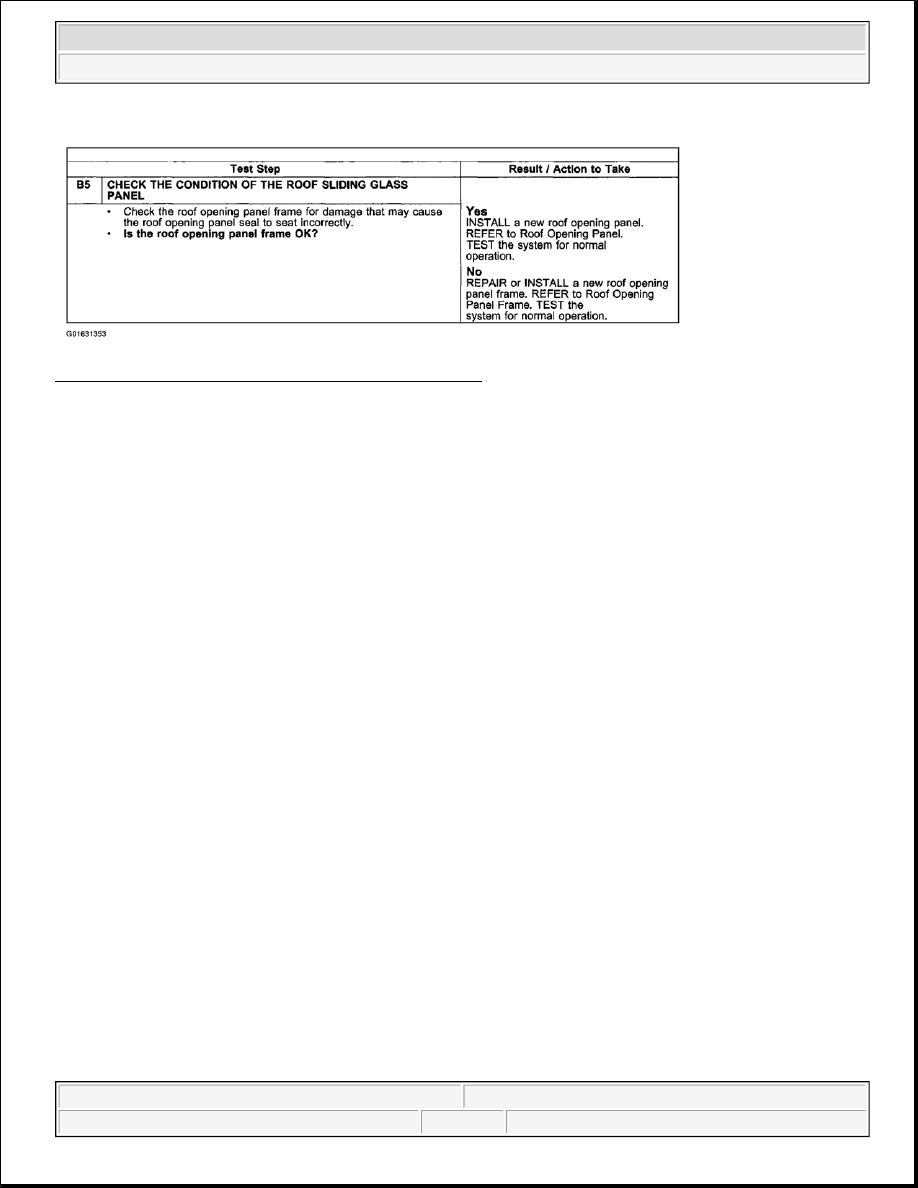

Fig. 8: Pinpoint Test B: Roof Opening Panel Leaks (B5)
Courtesy of FORD MOTOR CO.

PINPOINT TEST C: ROOF OPENING PANEL RATTLES



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

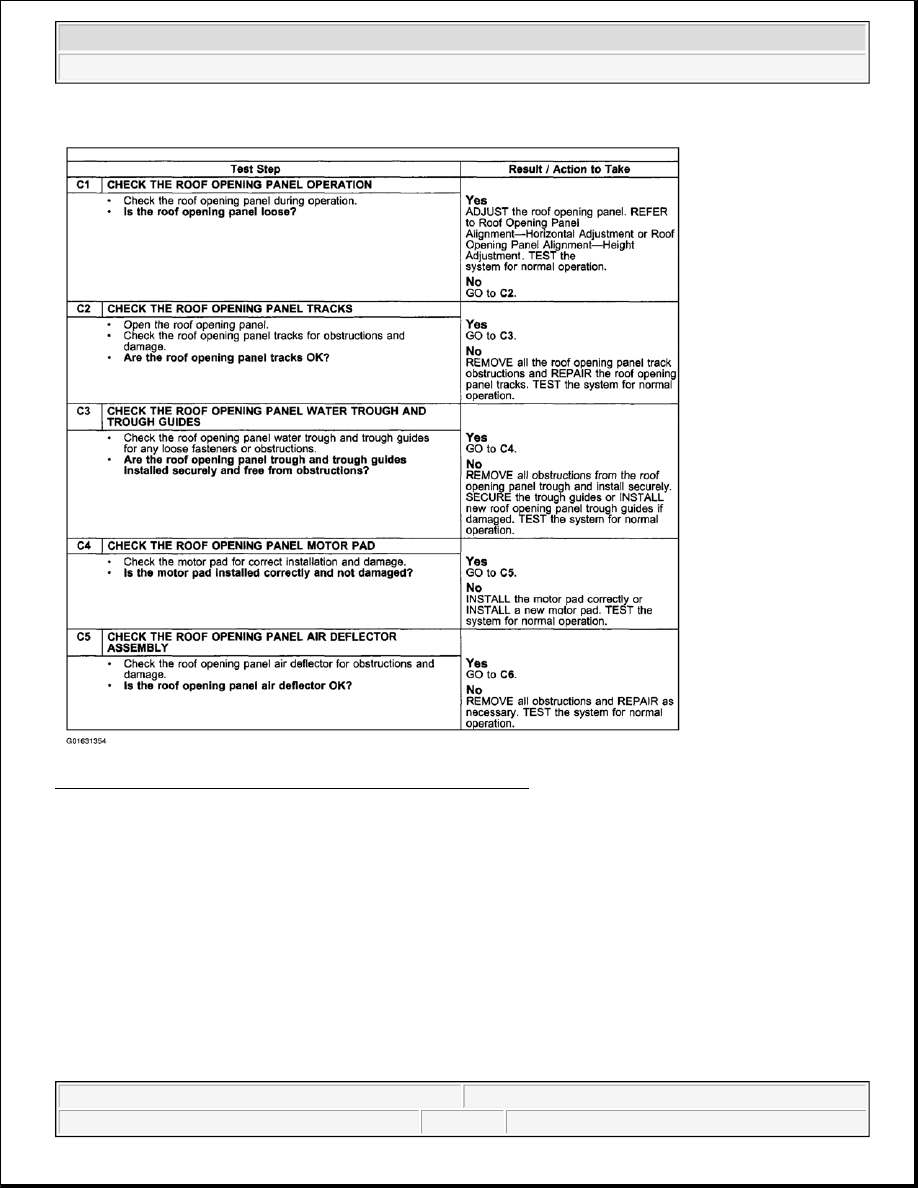

Fig. 9: Pinpoint Test C: Roof Opening Panel Rattles (C1 - C5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup

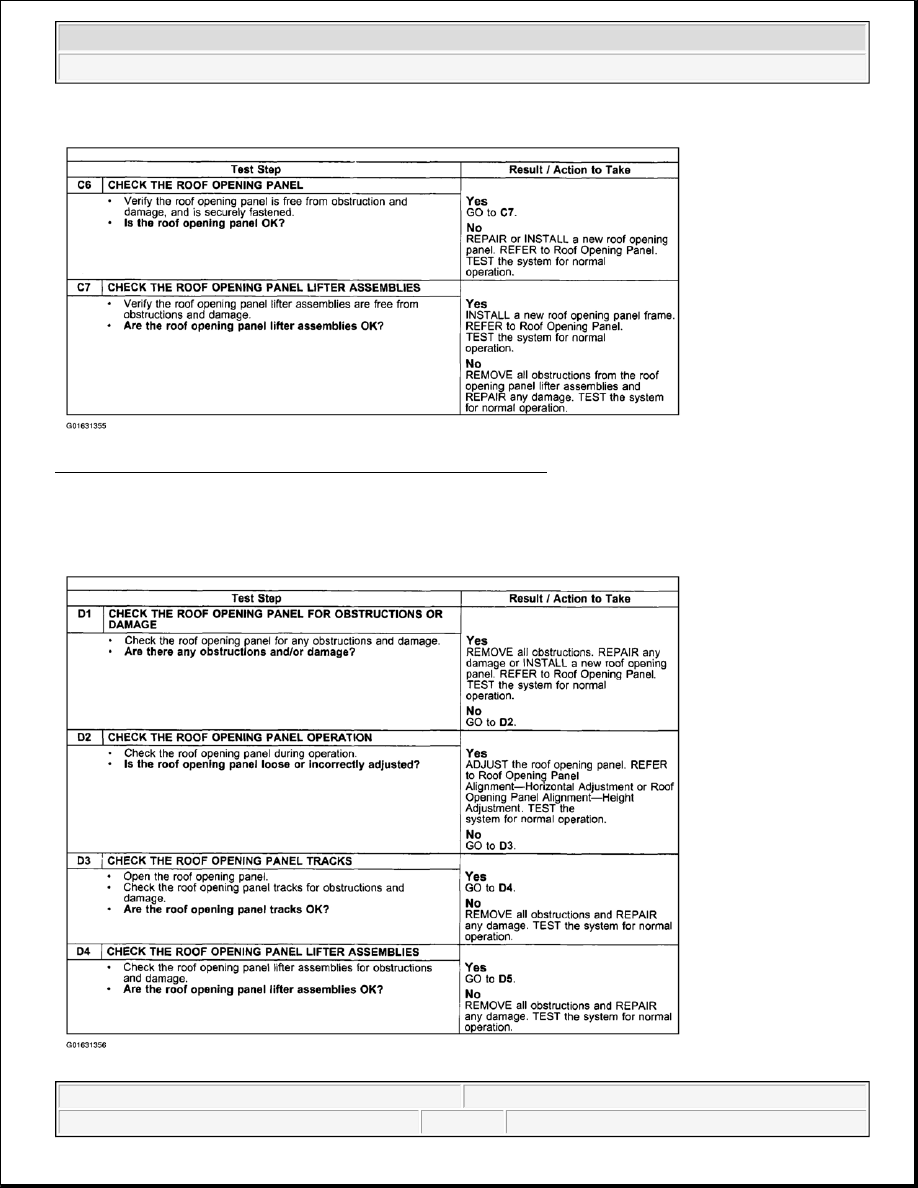

Fig. 10: Pinpoint Test C: Roof Opening Panel Rattles (C6 & C7)
Courtesy of FORD MOTOR CO.

PINPOINT TEST D: ROOF OPENING PANEL IS NOISY DURING OPERATION



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup



Fig. 11: Pinpoint Test D: Roof Opening Panel Is Noisy During Operation (D1 - D4)
Courtesy of FORD MOTOR CO.

Fig. 12: Pinpoint Test D: Roof Opening Panel Is Noisy During Operation (D5)
Courtesy of FORD MOTOR CO.

PINPOINT TEST E: ROOF OPENING PANEL DOES NOT OPEN OR CLOSE



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Roof Opening Panel - F150 Pickup
