Ford F150 Pickup. Instruction - part 248

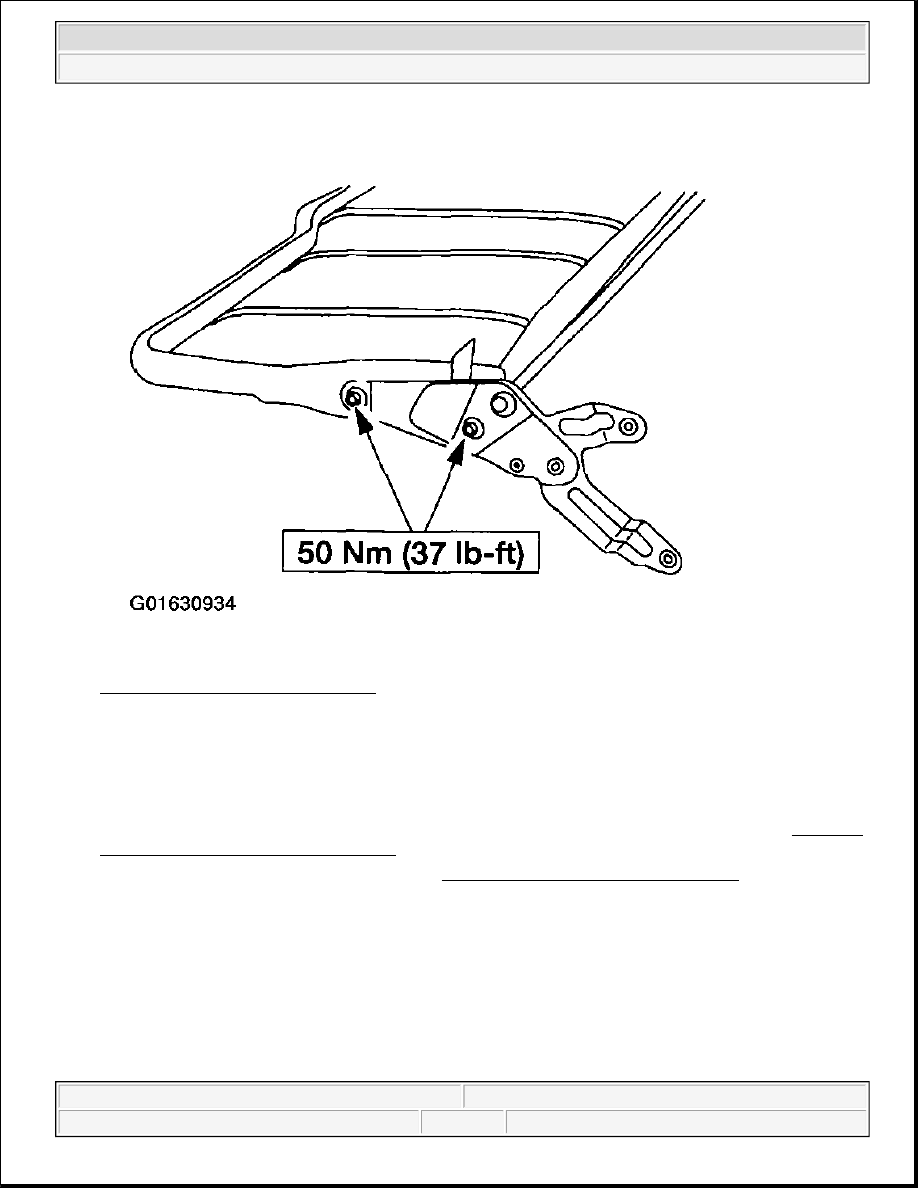

Fig. 330: Installing Seat Back Hinge
Courtesy of FORD MOTOR CO.

FRONT SEAT BACKREST - 60 PERCENT

Disassembly and Assembly

1. Disassembly of the 60 percent front seat back is similar to the captains chair seat back. Refer to SEAT-40

PERCENT AND CAPTAIN'S CHAIR .

2. Disassemble the 60 percent front seat. Refer to SEAT-60 PERCENT FRONT BENCH .

3. To assemble, reverse the disassembly procedure.

FRONT SEAT BACKREST - 40 PERCENT AND CAPTAIN'S CHAIR

Disassembly and Assembly

NOTE:

Inspect the plastic isolators for damage and verify their correct position.
Replace if necessary.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



1. Disassemble the captains chair. Refer to SEAT-40 PERCENT AND CAPTAIN'S CHAIR .

2. Remove the front seat recliner dump handle.

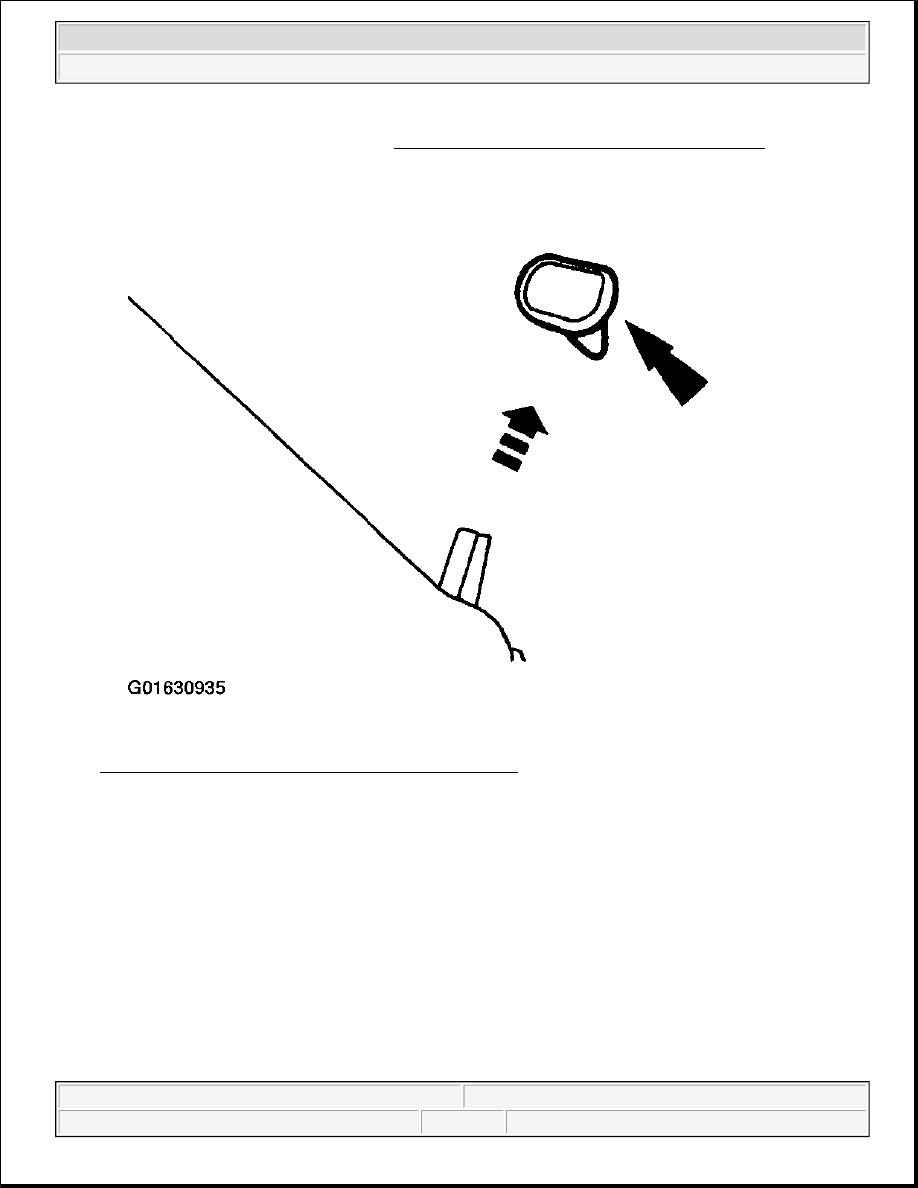

Fig. 331: Removing Front Seat Recliner Dump Handle
Courtesy of FORD MOTOR CO.

3. Disconnect the seat back trim cover J-clip.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 332: Disconnecting Seat Back Trim Cover J-Clip
Courtesy of FORD MOTOR CO.

4. Invert the seat back trim cover to the lower row of hog rings.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 333: Inverting Seat Back Trim Cover To Lower Row Of Hog Rings
Courtesy of FORD MOTOR CO.

5. Remove the hog rings.
