2. Remove the seat back trim cover.

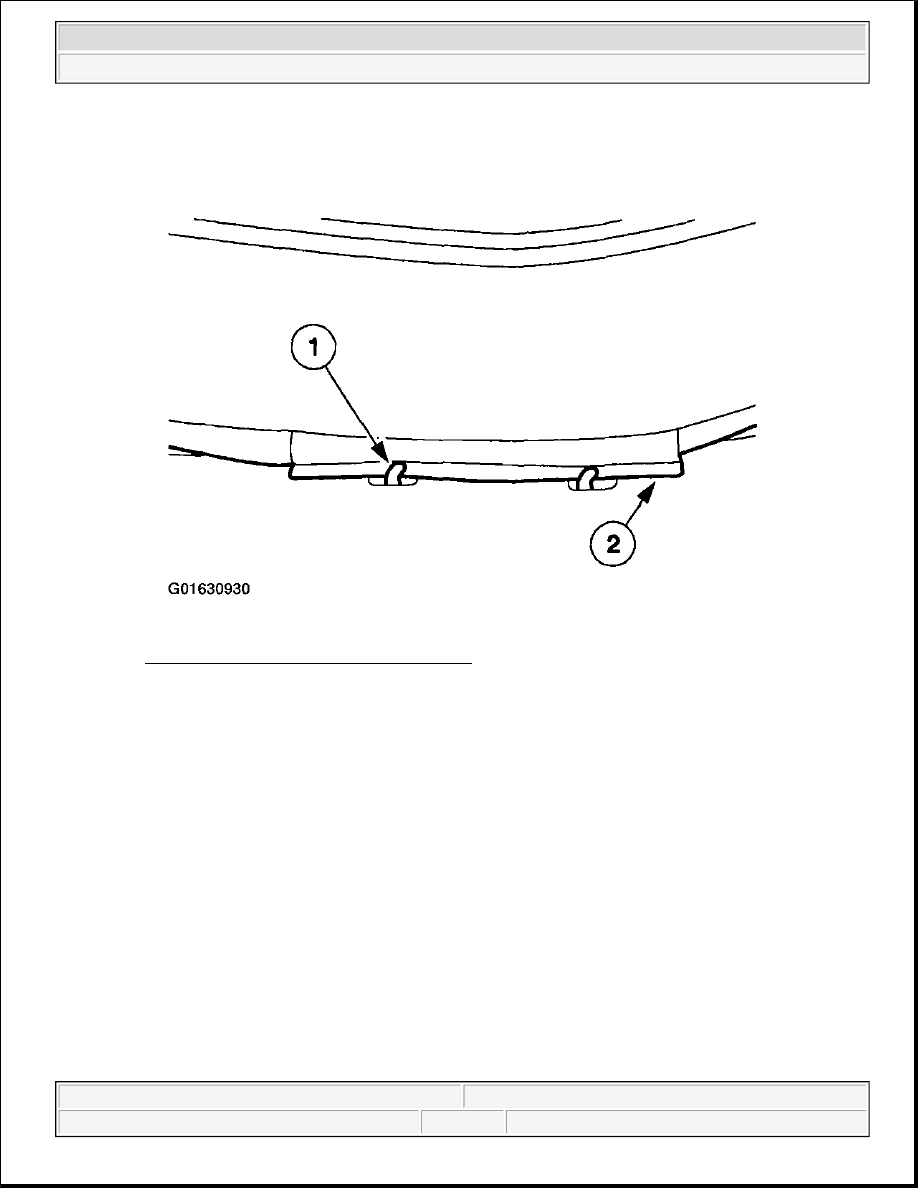

Fig. 326: Removing Seat Back Trim Cover
Courtesy of FORD MOTOR CO.

8. Remove the seat back frame from the seat back foam.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

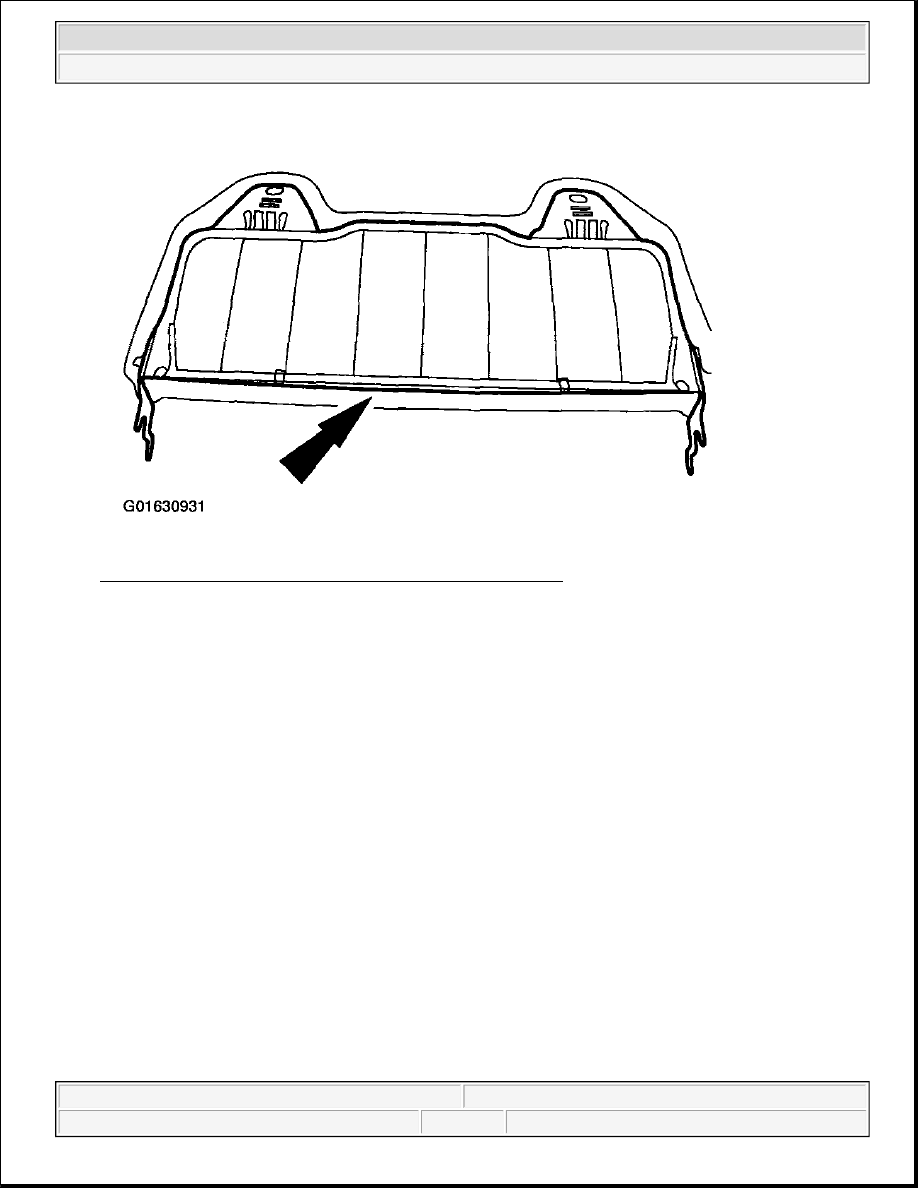

Fig. 327: Removing Seat Back Frame From Seat Back Foam
Courtesy of FORD MOTOR CO.

9. Remove the seat back hinge.

1. Remove the bolts.

2. Remove the seat back hinge.

z

Remove the hinge from the hinge link tube.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

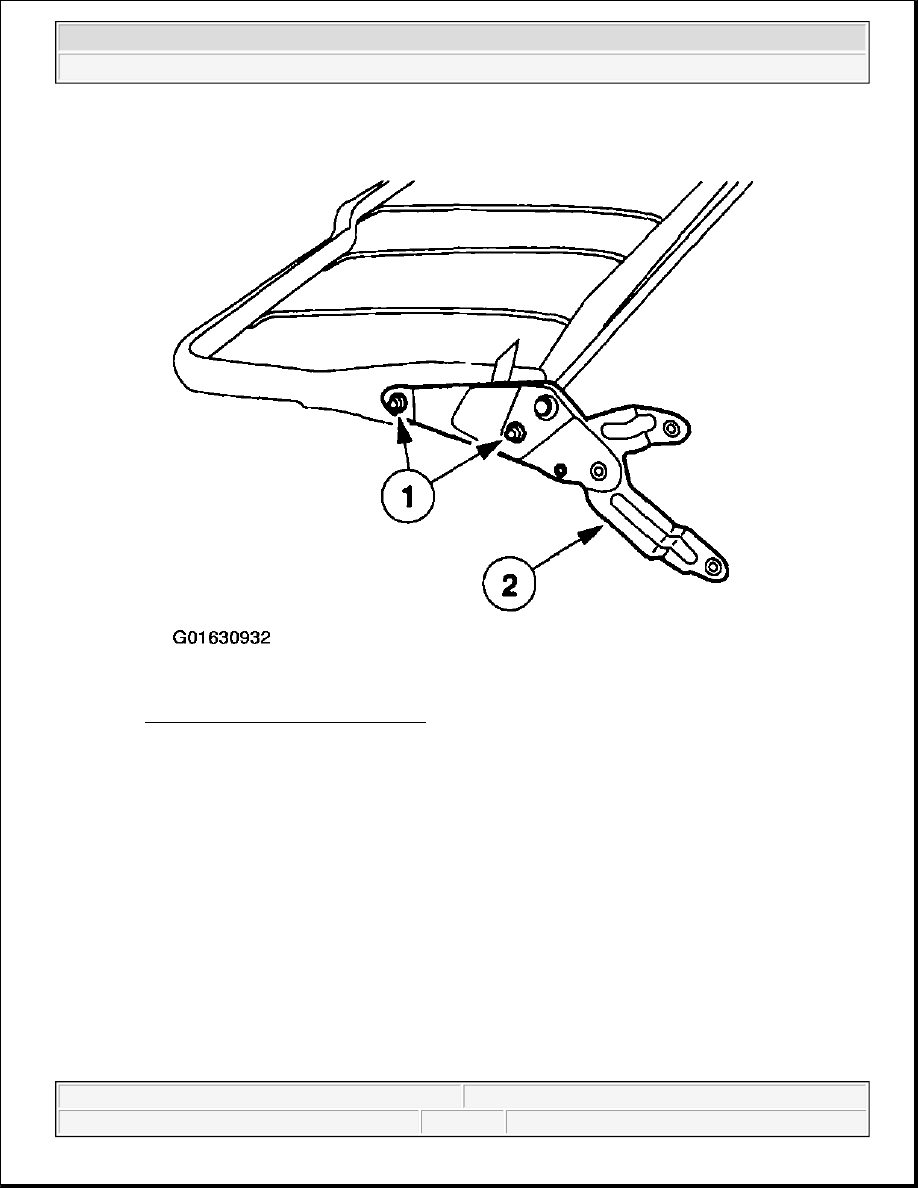

Fig. 328: Removing Seat Back Hinge
Courtesy of FORD MOTOR CO.

10. Remove the hinge link tube and positioning clips.

z

Remove the clips from the hinge link tube.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

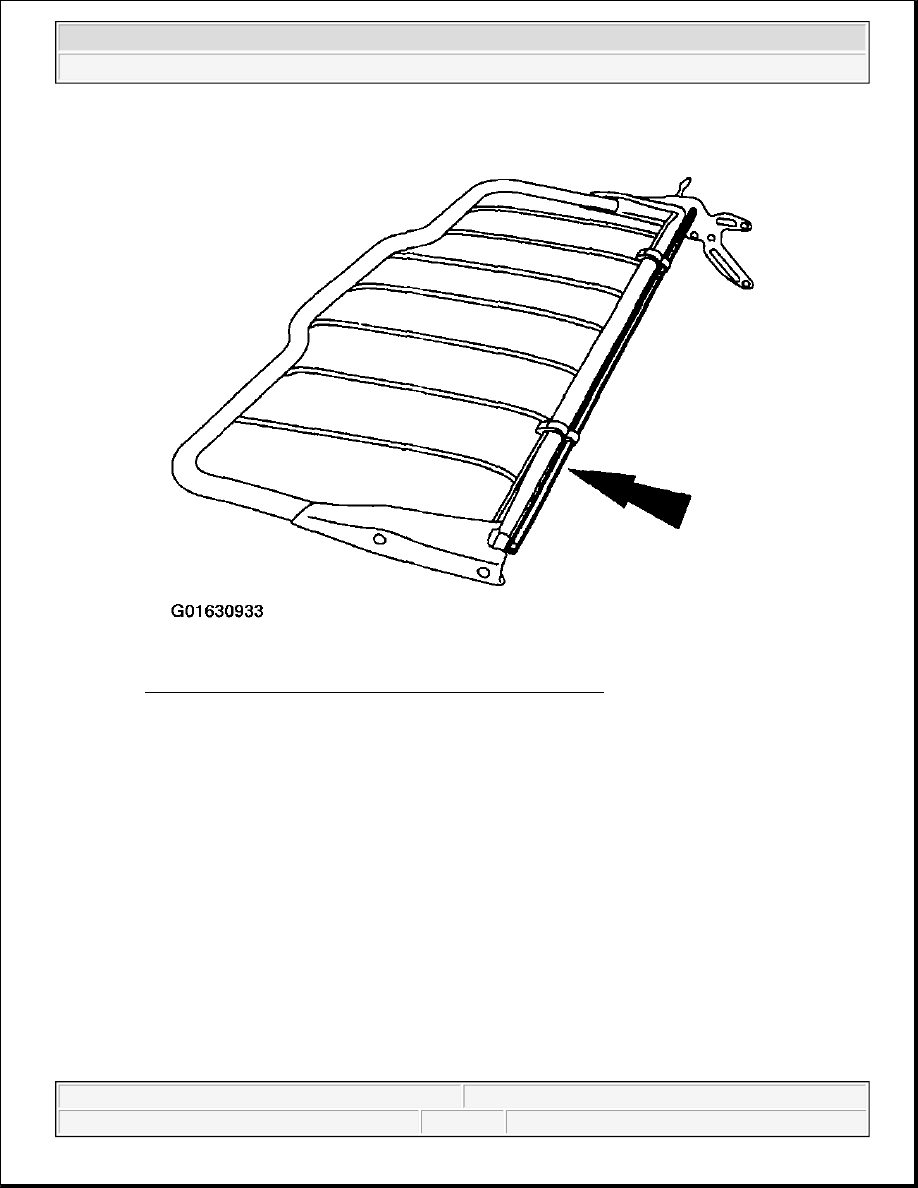

Fig. 329: Removing Hinge Link Tube And Positioning Clips
Courtesy of FORD MOTOR CO.

11. To assemble, reverse the disassembly procedure.
