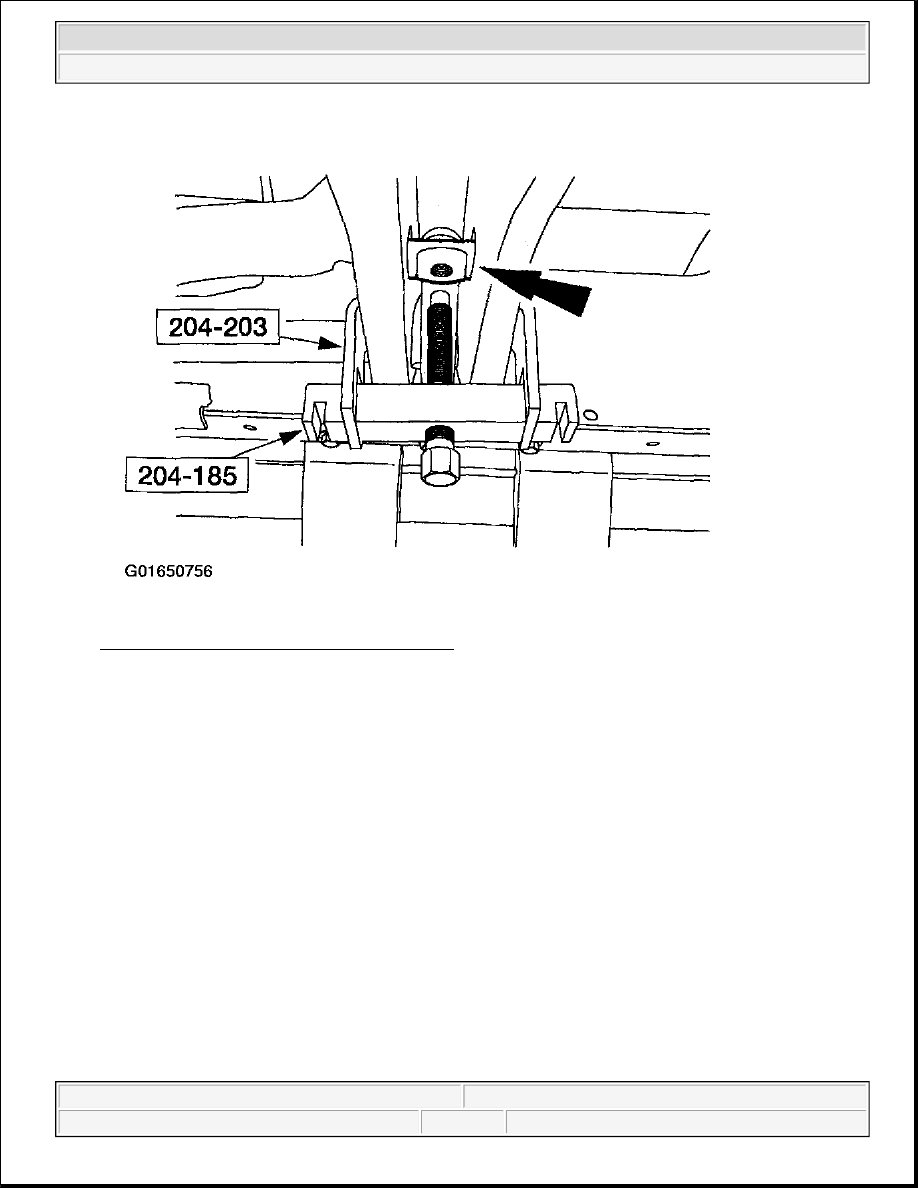

Fig. 123: Removing Torsion Bar Adjuster Nut
Courtesy of FORD MOTOR CO.

10. Remove the six bolts, then remove the torsion bar adjusting brackets.

z

Move the torsion bar crossmember rearward. Place a hand under the torsion bar adjusting bracket.
The bracket will slide off the torsion bar. Do one side at a time. Position the torsion bar
crossmember against the frame support.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 124: Locating Torsion Bar Adjusting Bracket Bolts
Courtesy of FORD MOTOR CO.

11. Pull the torsion bar rearward and separate it from the lower control arm. Remove the RH torsion bar only.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 125: Removing RH Torsion Bar
Courtesy of FORD MOTOR CO.

12. Remove the torsion bar crossmember.

13. On instruction shift vehicles, using the special tool, disconnect the shift rod.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 126: Disconnecting Shift Rod
Courtesy of FORD MOTOR CO.

14. On instruction shift vehicles, disconnect the 4WD indicator switch electrical connector, if equipped.
