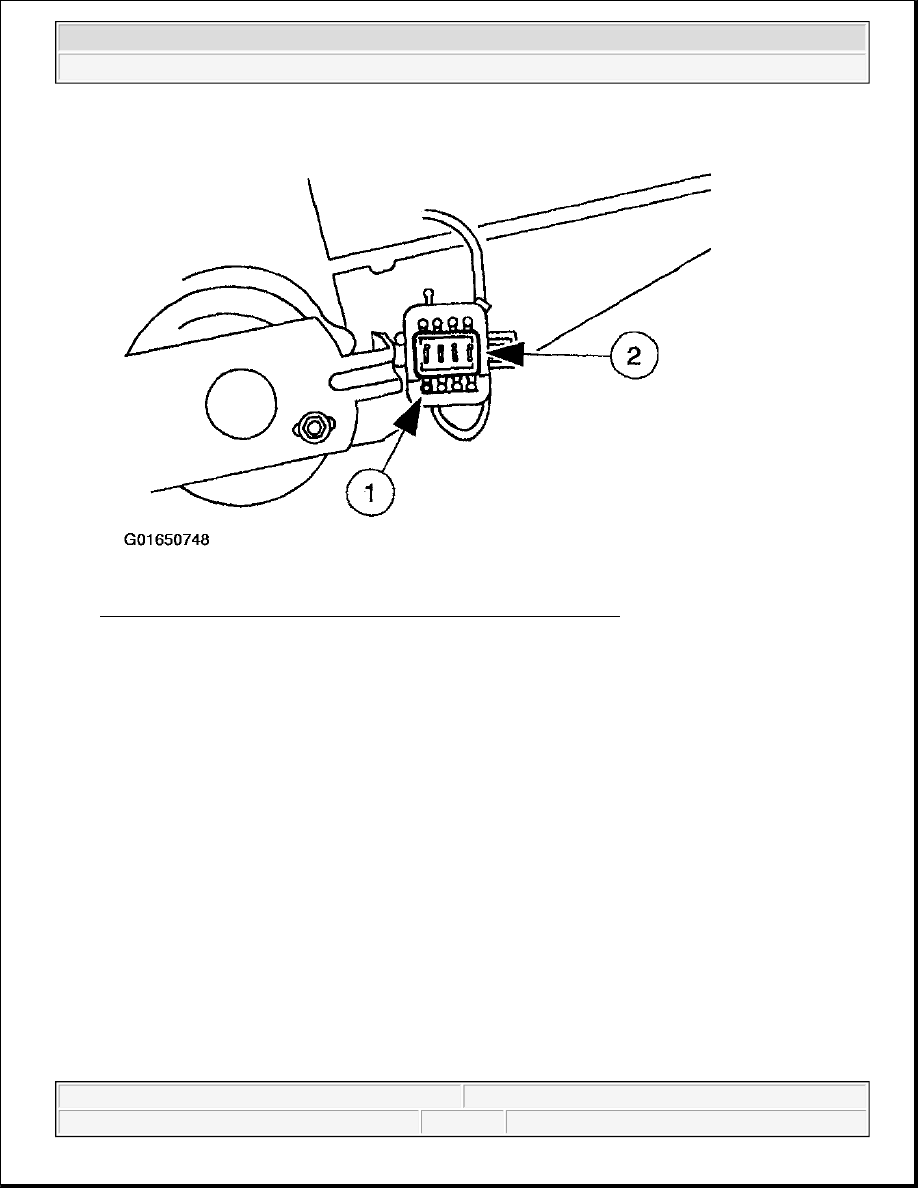

Fig. 115: Installing Coil Wire Into Shift Motor Electrical Connector
Courtesy of FORD MOTOR CO.

38. Remove the transfer case from the special tool.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 116: Removing Transfer Case From Special Tool
Courtesy of FORD MOTOR CO.

39. Install the 4WD indicator switch, if equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

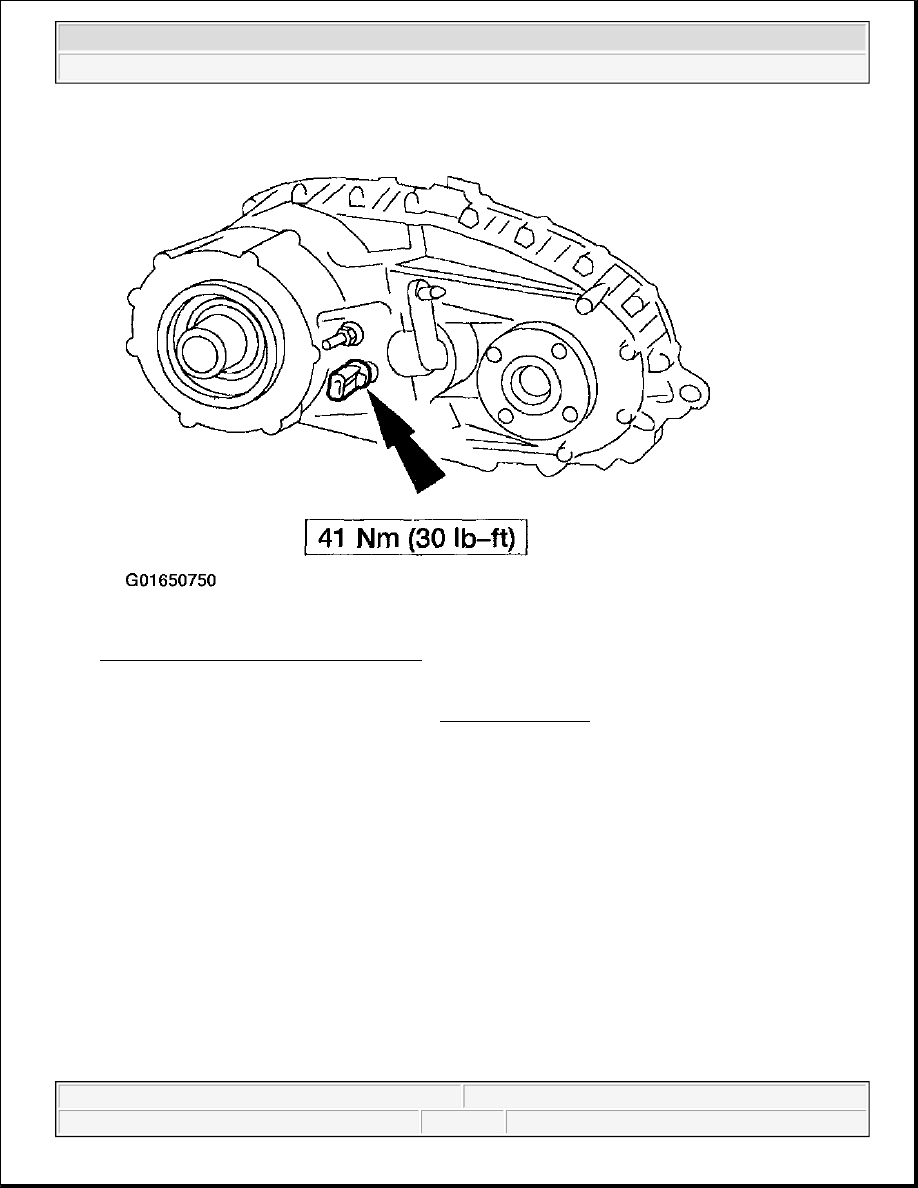

Fig. 117: Installing 4WD Indicator Switch
Courtesy of FORD MOTOR CO.

40. Install the transfer case in the vehicle. Refer to TRANSFER CASE .

REMOVAL

TRANSFER CASE - 4R70W TRANSMISSION

Special Tool(s)



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 118: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Removal

1. With the vehicle in NEUTRAL, raise and support the vehicle.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
