Ford F150 Pickup. Instruction - part 1990

Fig. 119: Locating Drain Plug
Courtesy of FORD MOTOR CO.

2. Remove the drain plug and drain the transfer case.

3. Remove the skid plate, if equipped.

4. Remove the rear driveshaft. For additional information, refer to DRIVESHAFT & UNIVERSAL

JOINTS .

5. Remove the two nuts and the front driveshaft shield.

NOTE:

Drain the transfer case if disassembly is required.

NOTE:

To maintain initial driveshaft balance, index-mark the rear driveshaft.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 120: Locating Driveshaft Shield Nut
Courtesy of FORD MOTOR CO.

6. Remove the front driveshaft. For additional information, refer to DRIVESHAFT & UNIVERSAL

JOINTS .

7. Make preliminary adjustment references.

1. Index-mark the torsion bars to the torsion bar crossmember.

2. Measure and record the torsion bar adjuster bolt length.

NOTE:

To maintain initial driveshaft balance, index-mark the front driveshaft.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



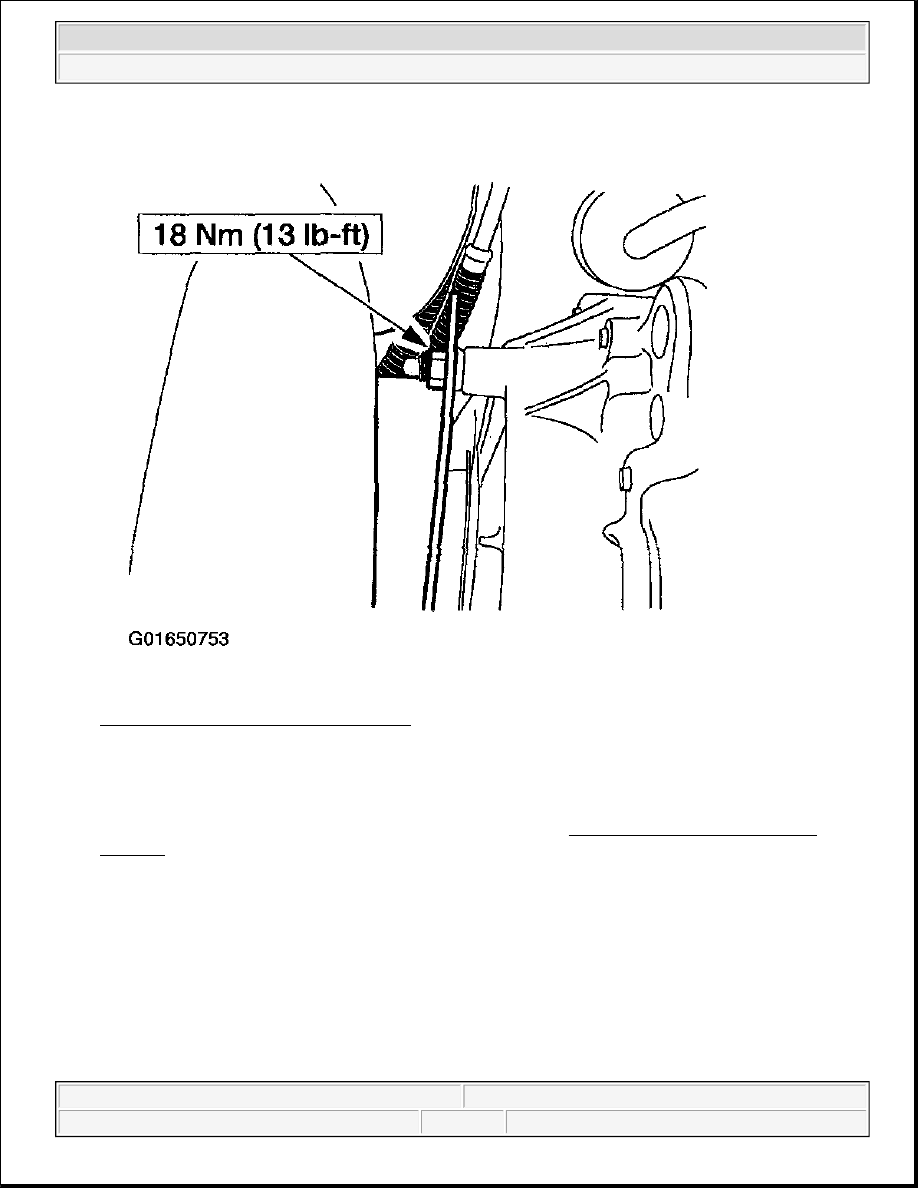

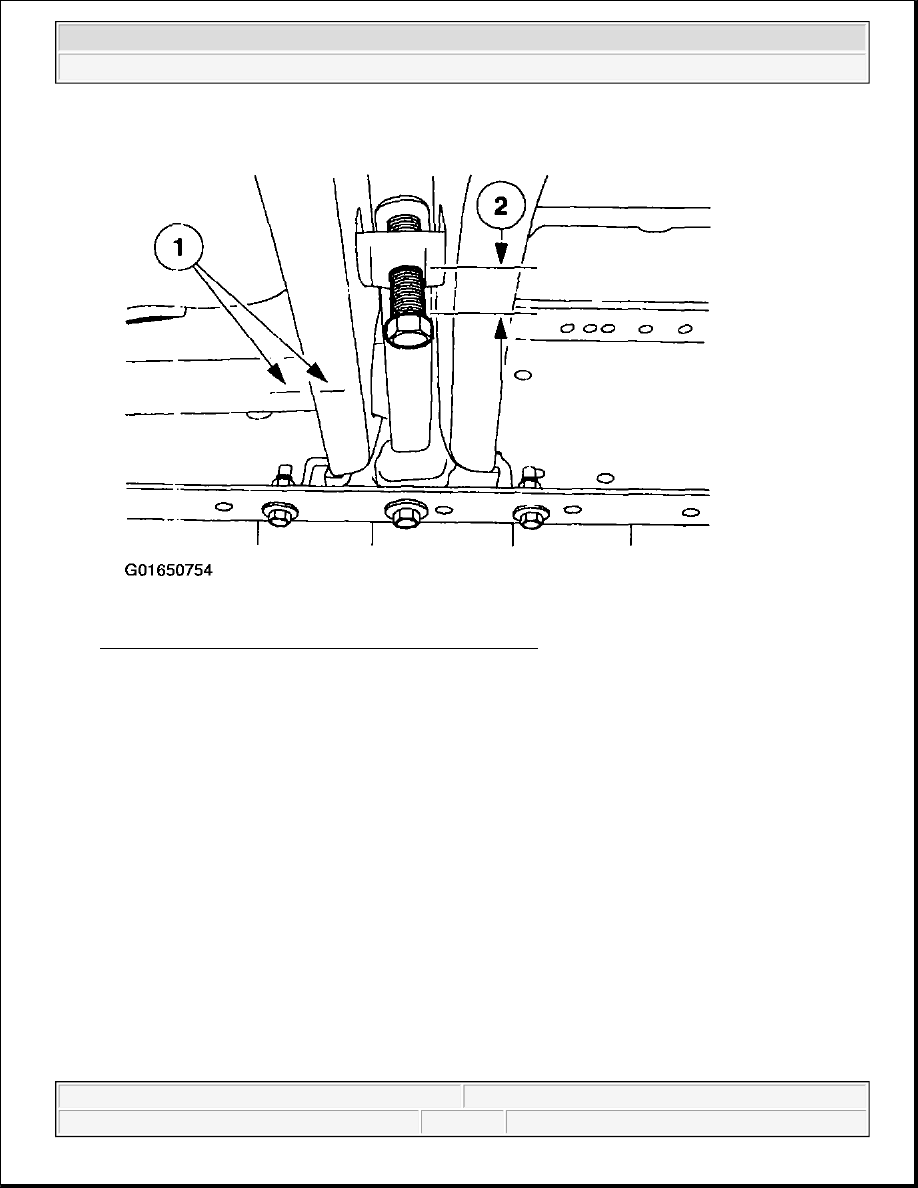

Fig. 121: Identifying Preliminary Adjustment References
Courtesy of FORD MOTOR CO.

8. Remove the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 122: Removing Torsion Bar Adjuster Bolt
Courtesy of FORD MOTOR CO.

9. Using the special tools, remove the torsion bar adjustment nuts.

z

Tighten the special tool until the torsion bar adjuster lifts off the adjuster nut.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
