Fig. 127: Disconnecting 4WD Indicator Switch Electrical Connector
Courtesy of FORD MOTOR CO.

15. Disconnect the electric shift motor electrical connector, if equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

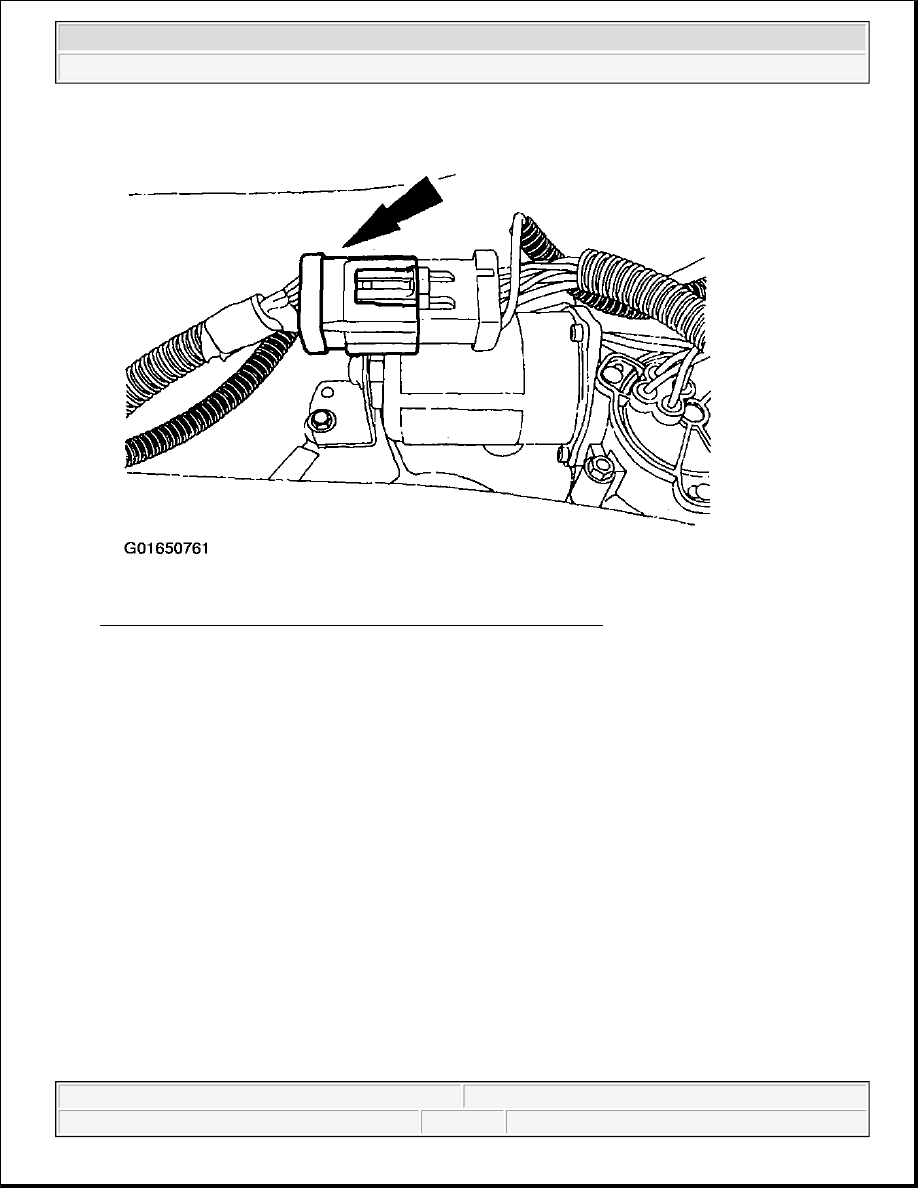

Fig. 128: Disconnecting Electric Shift Motor Electrical Connector
Courtesy of FORD MOTOR CO.

16. Disconnect the vent hose.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 129: Disconnecting Vent Hose
Courtesy of FORD MOTOR CO.

17. Using a suitable jack, support the transfer case.

z

Secure the transfer case to the jack with a safety strap.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

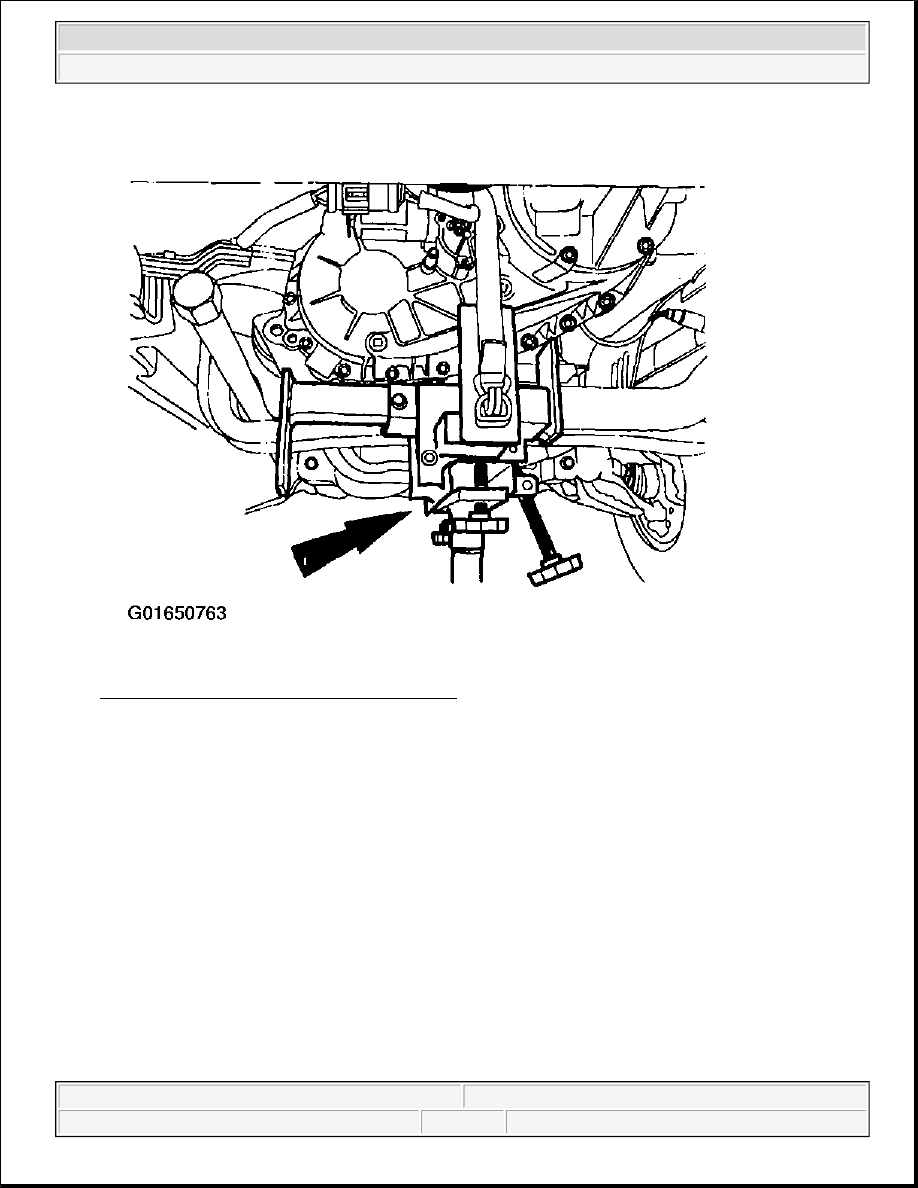

Fig. 130: Supporting Transfer Case With Jack
Courtesy of FORD MOTOR CO.

18. Remove the six transfer case-to-transmission bolts and separate the transfer case from the transmission.
