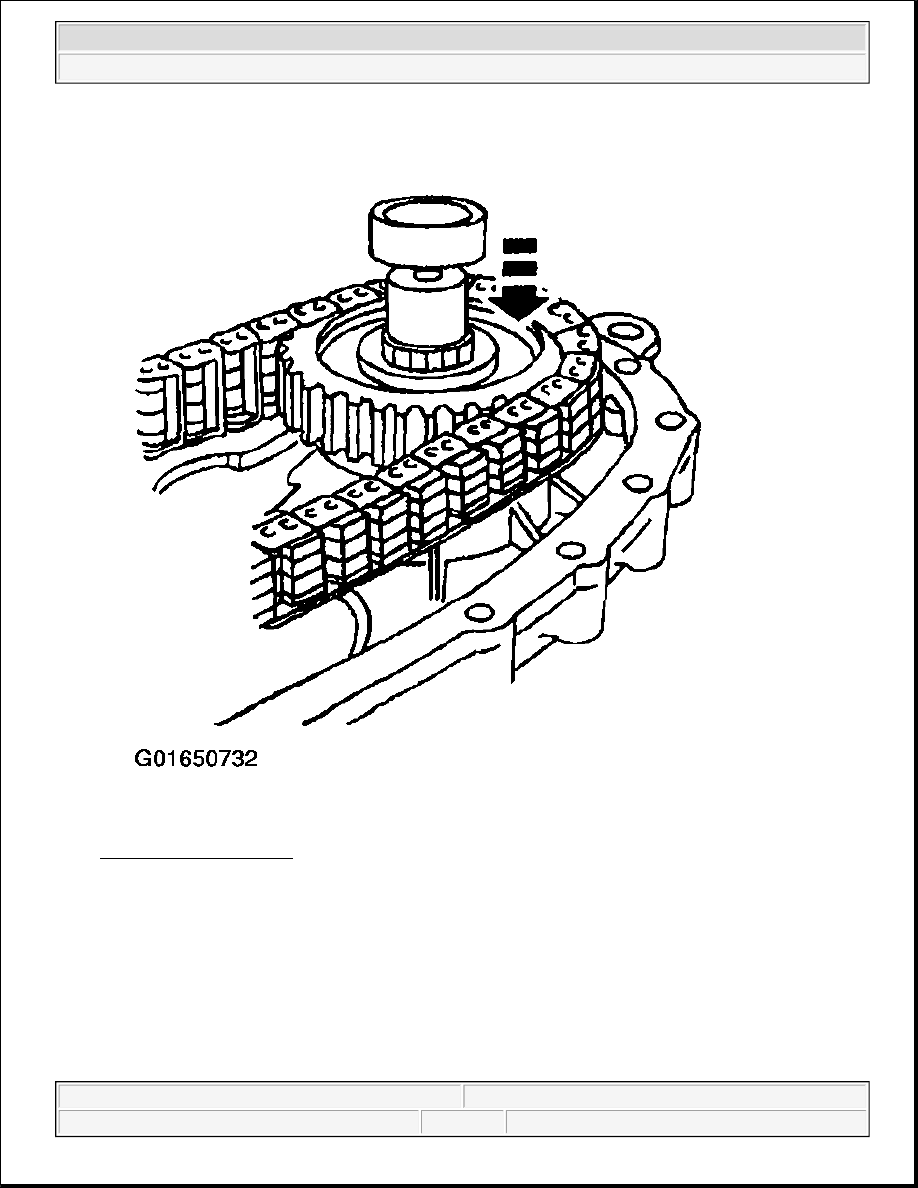

Fig. 99: Installing Spacer
Courtesy of FORD MOTOR CO.

NOTE:

If the lockup hub assembly was disassembled, carry out the following
steps.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 100: Assembling Lockup Hub Assembly
Courtesy of FORD MOTOR CO.

21. Assemble the lockup hub assembly.

1. Position the lockup collar.

2. Install the lockup collar springs.

3. Install the lockup hub.

4. Install the armature.

5. Install the lockup hub snap ring.

22. Install the lockup hub and the shift fork and spring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

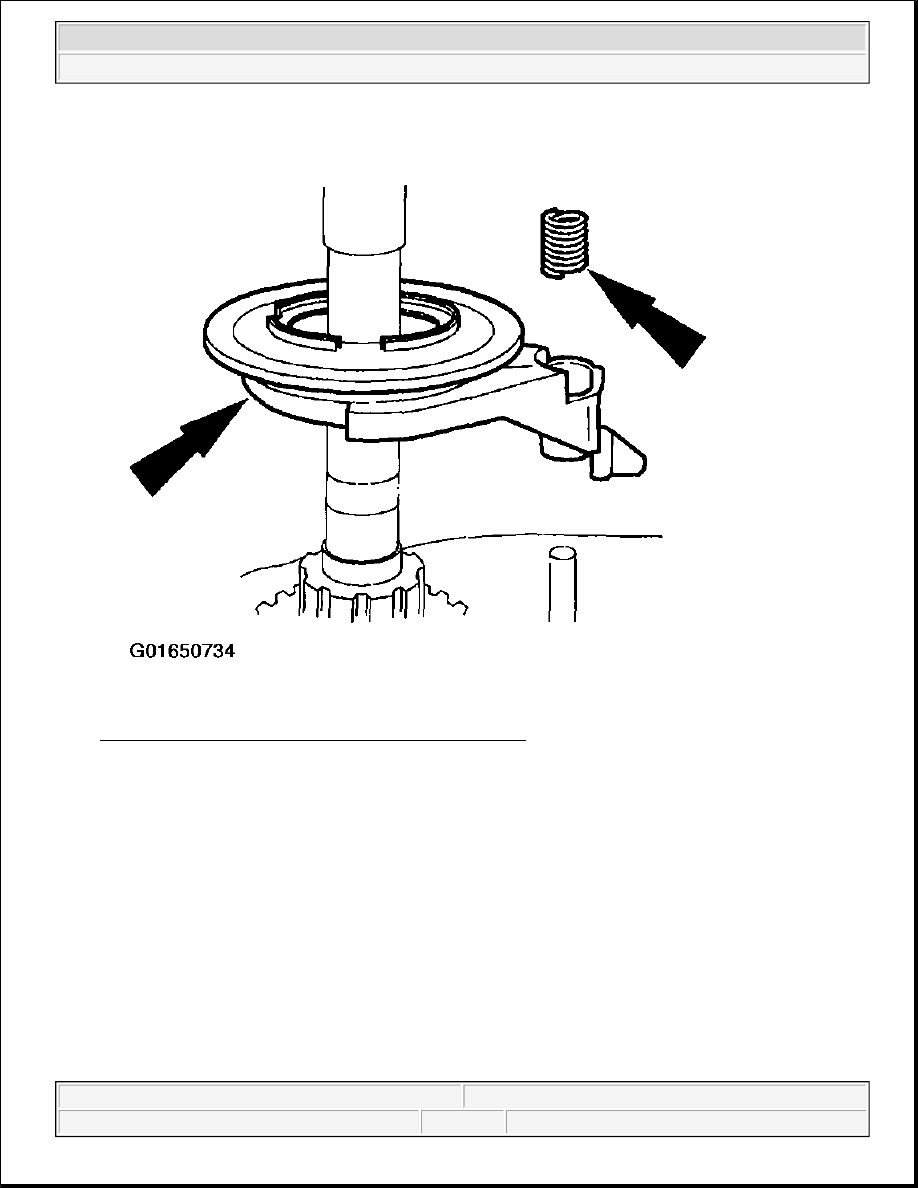

Fig. 101: Installing Lockup Hub & Shift Fork & Spring
Courtesy of FORD MOTOR CO.

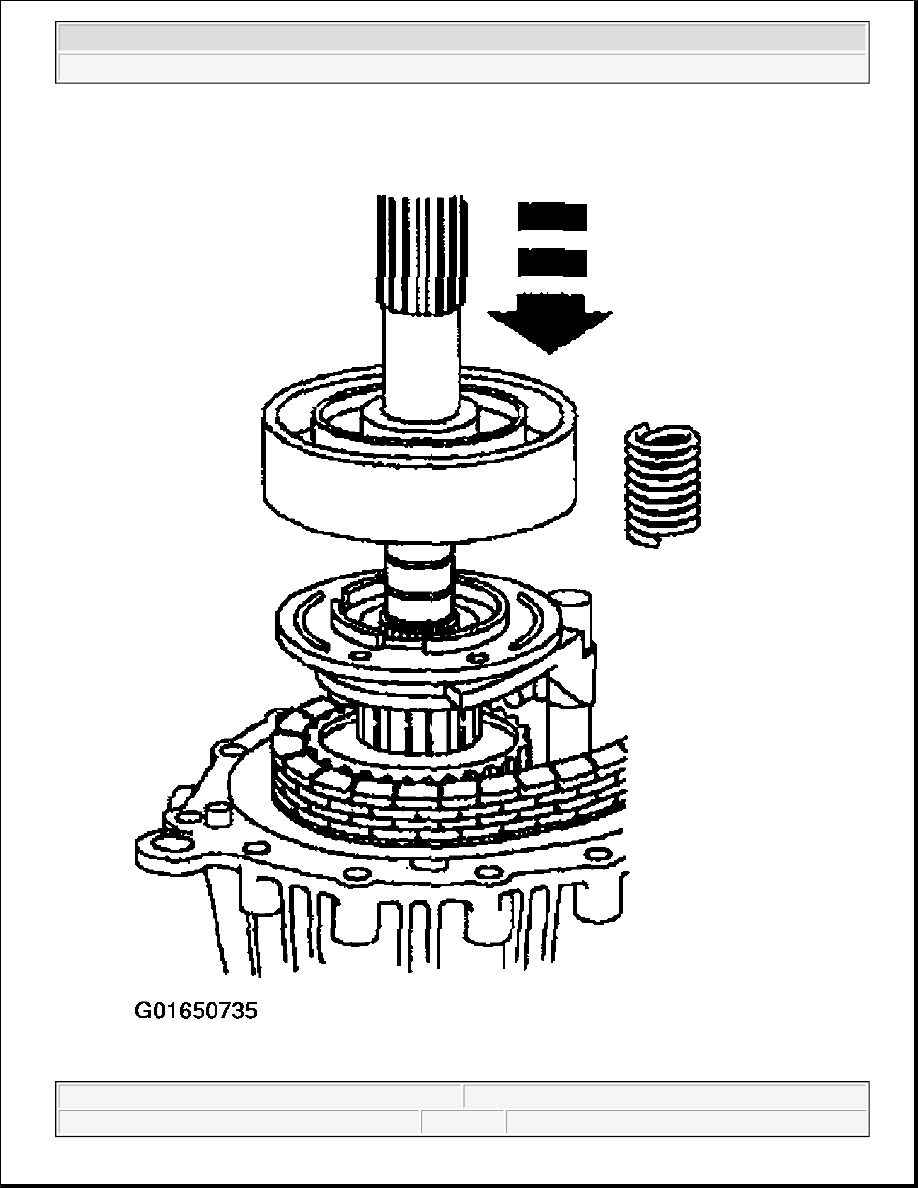

23. Install the coil housing.
