Ford F150 Pickup. Instruction - part 1983

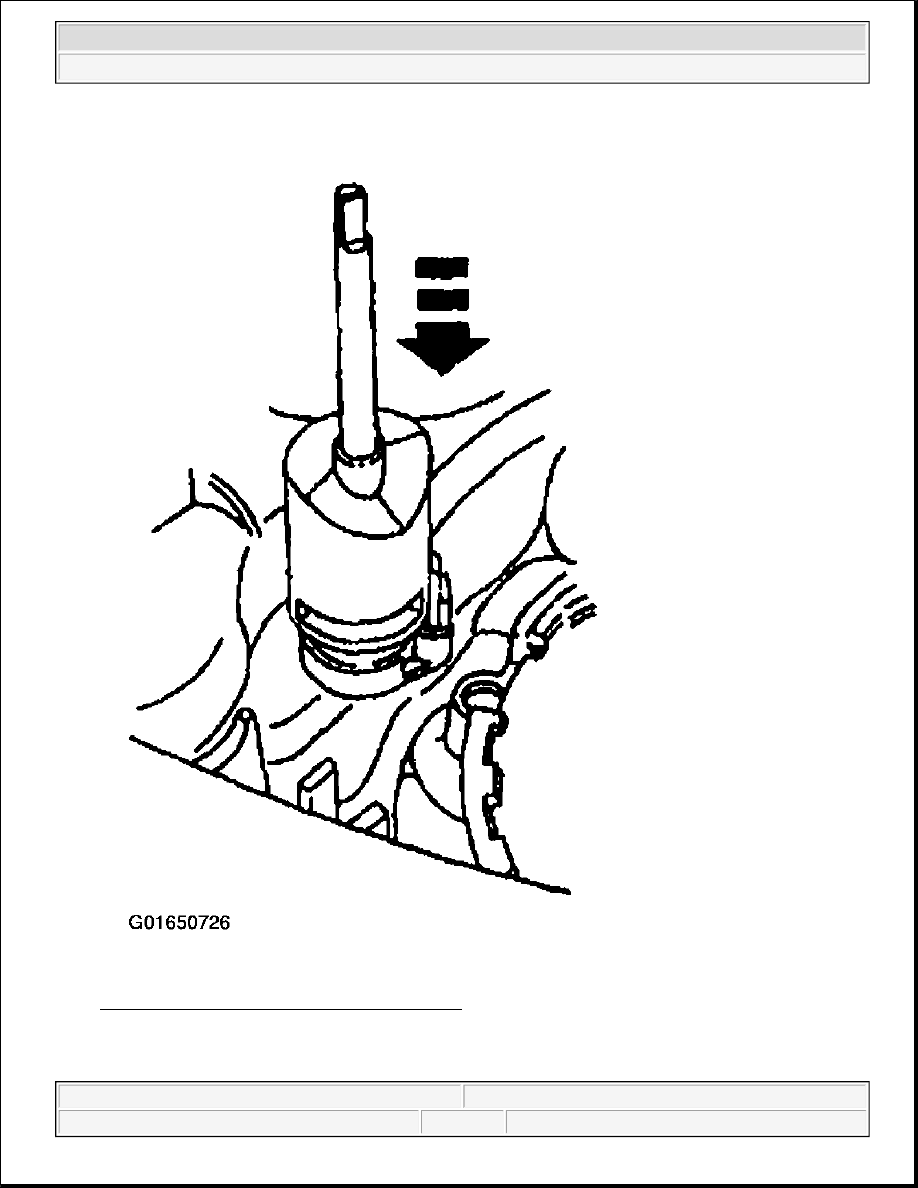

Fig. 91: Installing Front Planet Carrier
Courtesy of FORD MOTOR CO.

13. Using the special tools, install the input seal.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

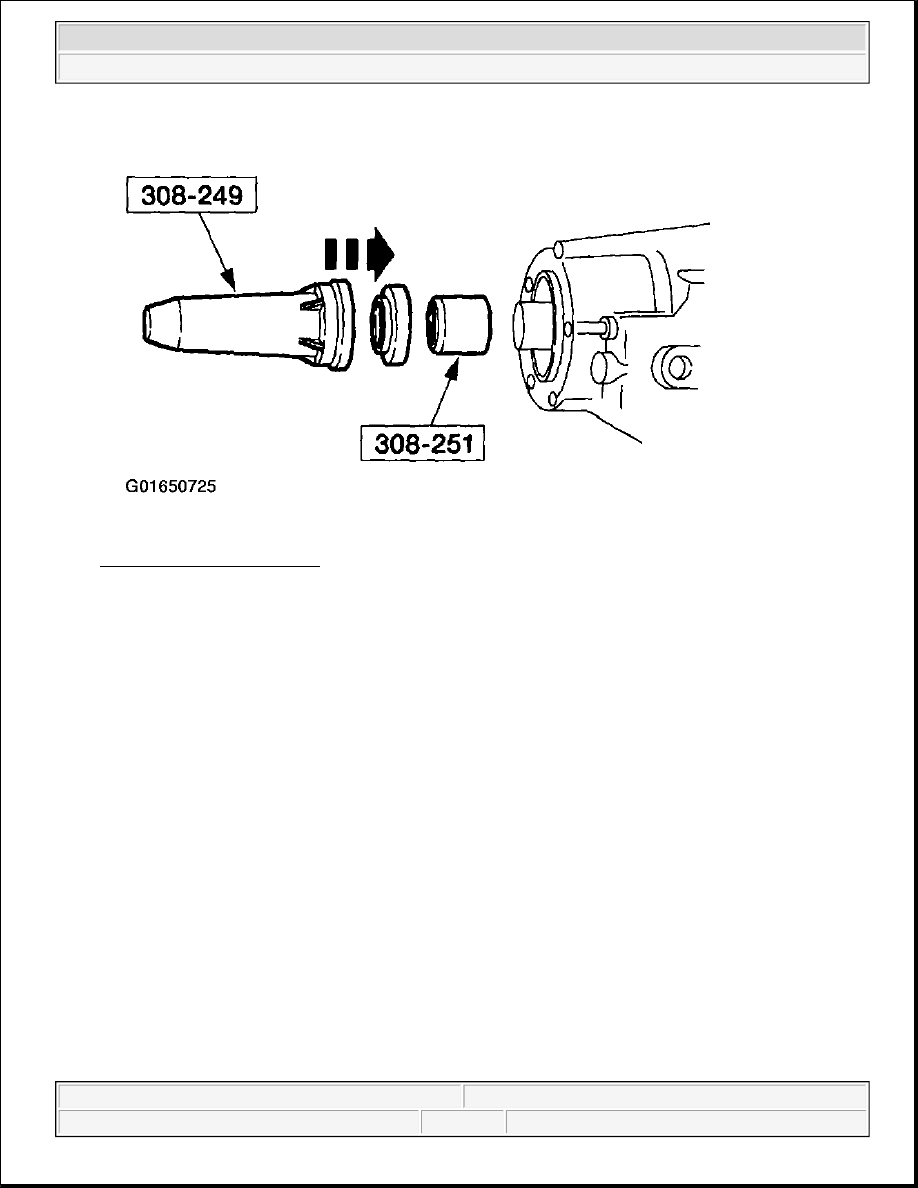

Fig. 92: Installing Input Seal
Courtesy of FORD MOTOR CO.

14. Install the electric shift cam assembly, if equipped.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

Fig. 93: Installing Electric Shift Cam Assembly
Courtesy of FORD MOTOR CO.

15. Install the shift fork and the reduction hub.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

Fig. 94: Installing Shift Fork & Reduction Hub
Courtesy of FORD MOTOR CO.

16. Install the shift rail.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
