Fig. 83: Installing Shift Lever, Shift Cam, Detent Spring & Detent Roller
Courtesy of FORD MOTOR CO.

NOTE:

Access the shift lever set screw through the 4WD indicator switch hole, if
equipped.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 84: Locating 4WD Indicator Switch Hole
Courtesy of FORD MOTOR CO.

4. Tighten the shift lever set screw.

5. Using a suitable press and the special tools, install the front output shaft bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



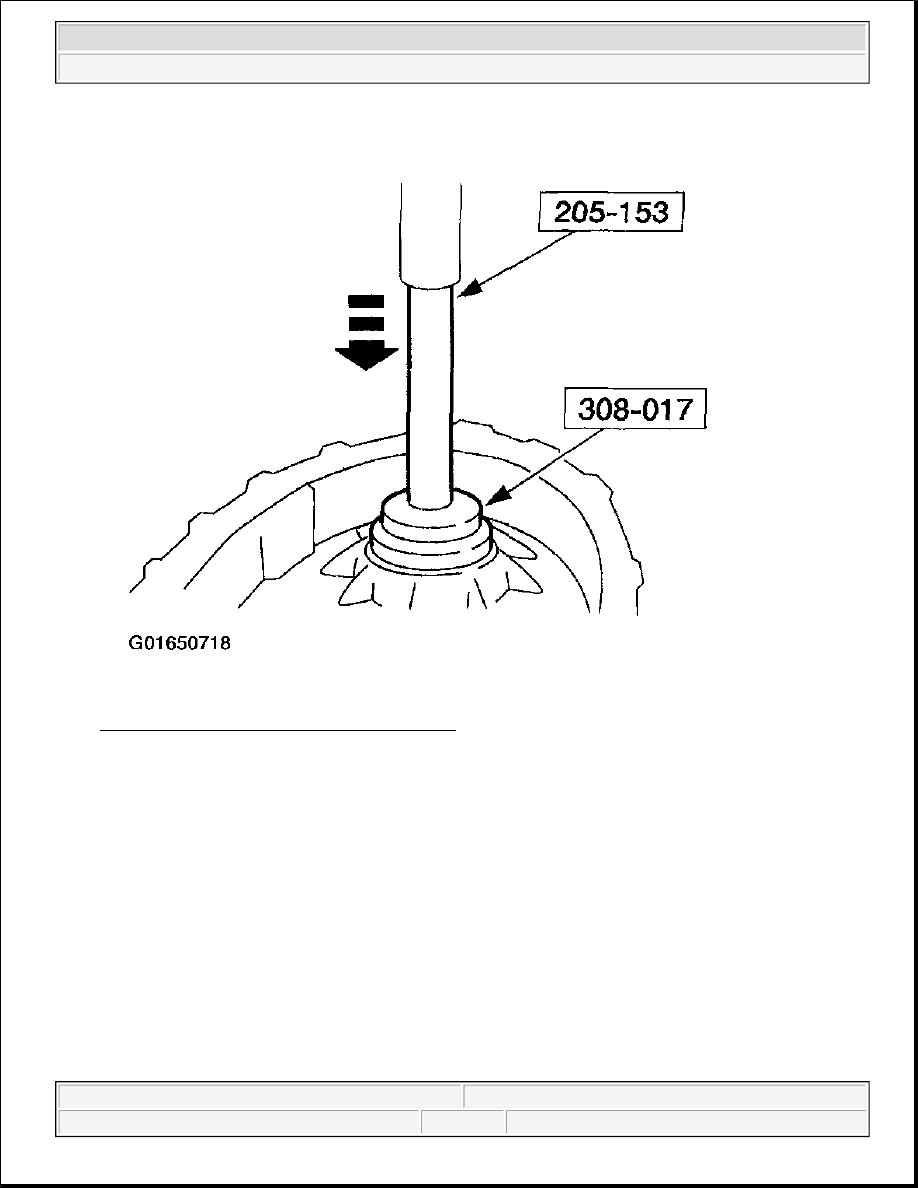

Fig. 85: Installing Front Output Shaft Bearing
Courtesy of FORD MOTOR CO.

6. Using the special tool, install the front yoke to flange seal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 86: Installing Front Yoke To Flange Seal
Courtesy of FORD MOTOR CO.

7. Install the dust shield, if removed.
