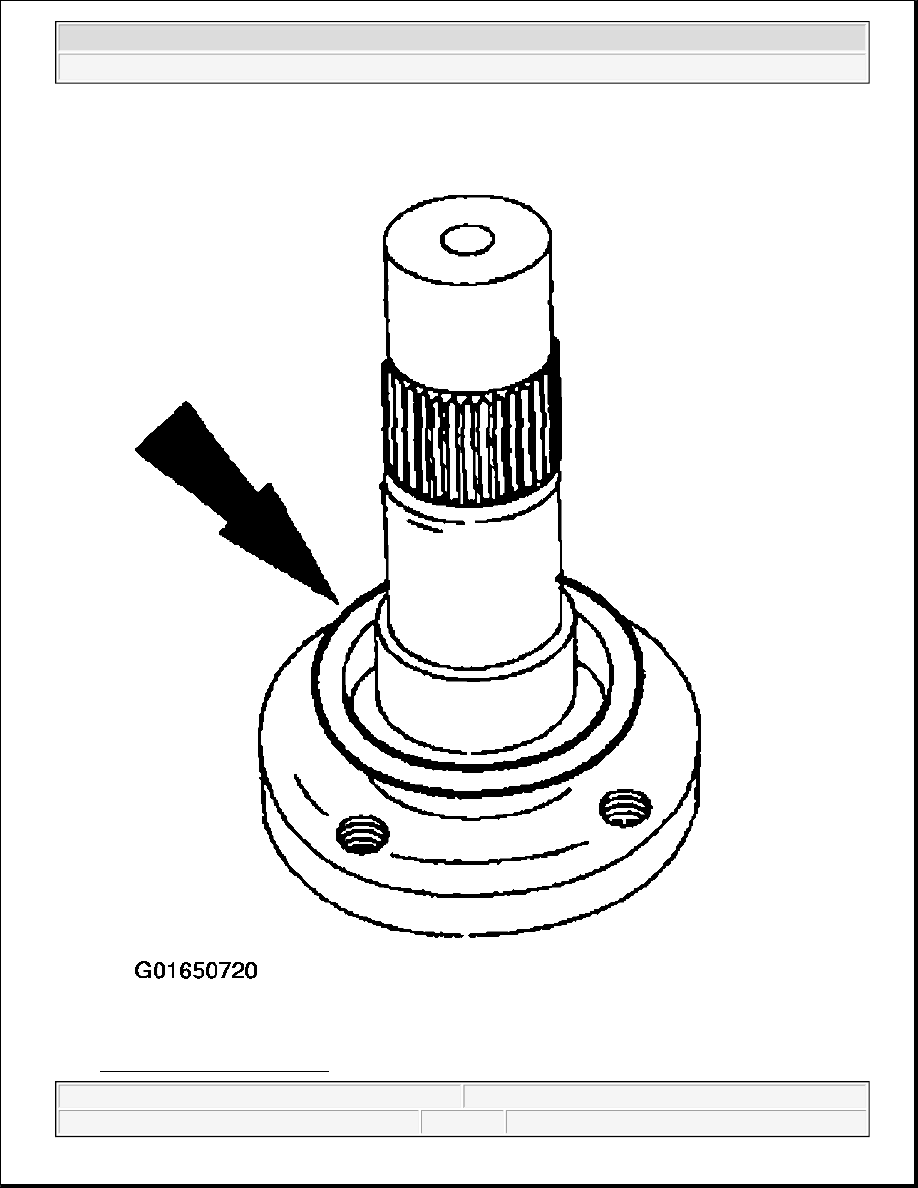

Fig. 87: Installing Dust Shield



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Courtesy of FORD MOTOR CO.

8. Install the front output shaft.

1. Position the front output shaft.

2. Install the front output shaft snap ring.

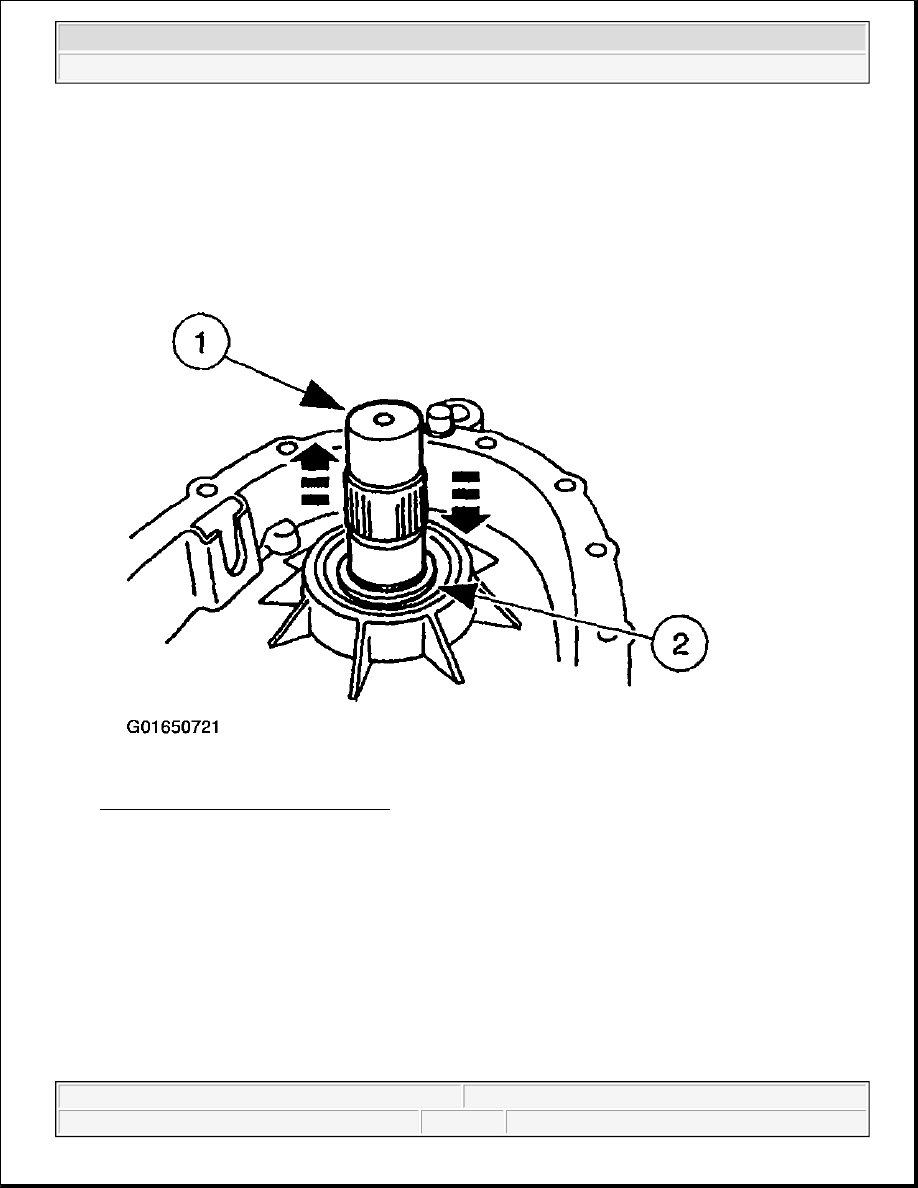

Fig. 88: Installing Front Output Shaft
Courtesy of FORD MOTOR CO.

9. Using a press and a suitable bearing installer, install the front planet carrier bearing. Install the front

planet carrier bearing snap ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 89: Installing Front Planet Carrier Bearing & Snap Ring
Courtesy of FORD MOTOR CO.

10. Install the ring gear.

z

Position the ring gear.

z

Install the ring gear snap ring.

CAUTION: Do not crush the needle bearings.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 90: Installing Needle Bearing & Bushing Into Front Planet Carrier
Courtesy of FORD MOTOR CO.

11. If removed, using a suitable press and the special tool, install the needle bearing and bushing into the

front planet carrier.

12. Install the front planet carrier.

1. Position the front planet carrier.

2. Install the front planet carrier snap ring.
