Ford F150 Pickup. Instruction - part 1984



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 95: Installing Shift Rail
Courtesy of FORD MOTOR CO.

17. Install the oil pump and the output shaft.

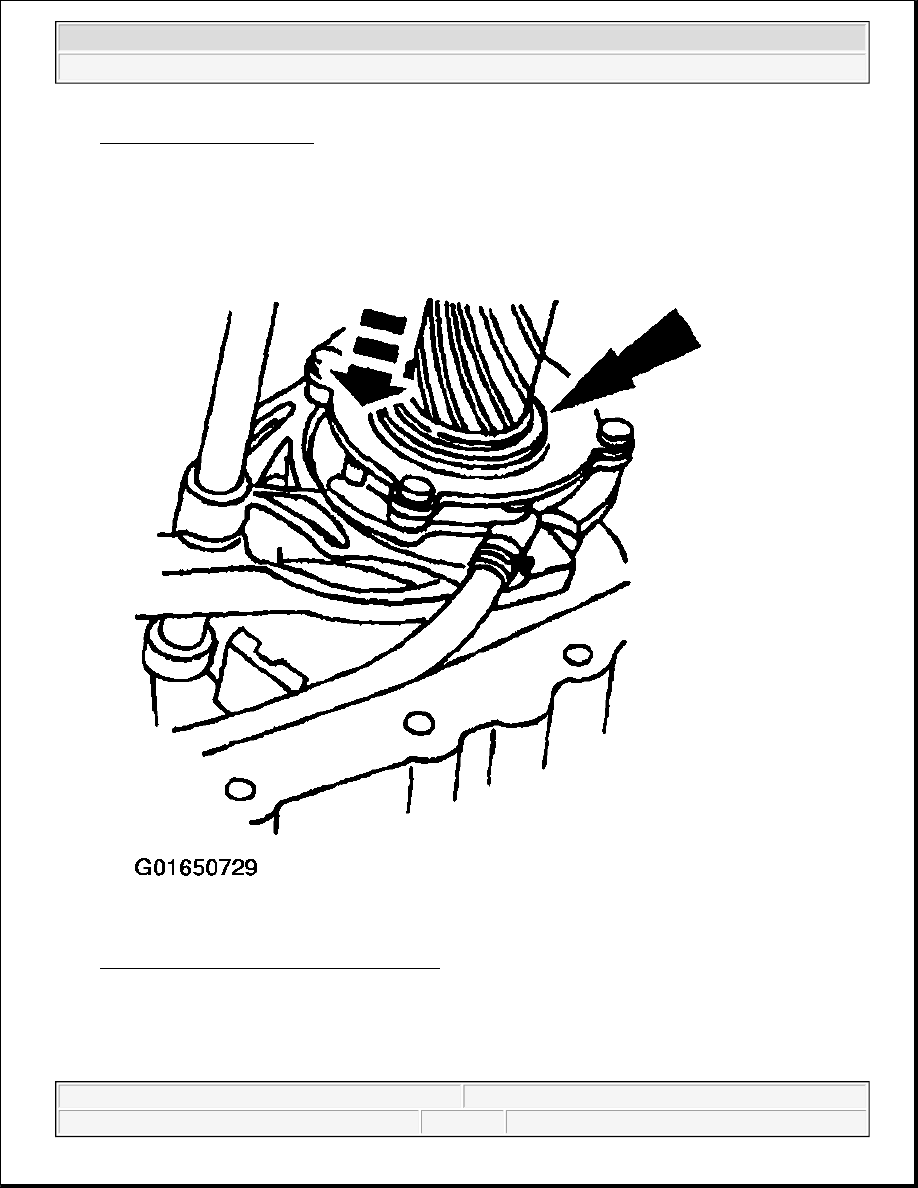

Fig. 96: Installing Oil Pump & Output Shaft
Courtesy of FORD MOTOR CO.

18. Install the magnet into its slot in the case.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 97: Installing Magnet
Courtesy of FORD MOTOR CO.

19. Install the drive chain and sprocket assembly.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

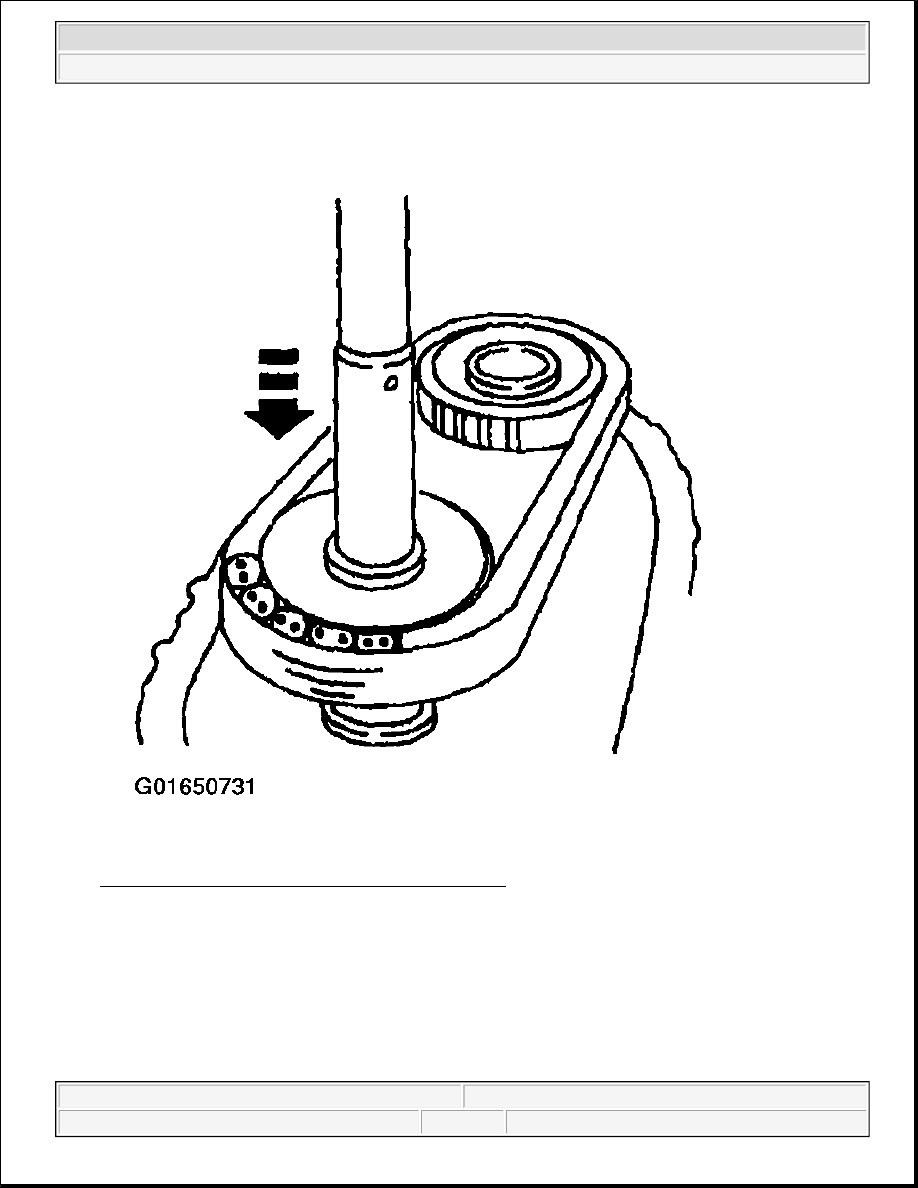

Fig. 98: Installing Drive Chain & Sprocket Assembly
Courtesy of FORD MOTOR CO.

20. Install the spacer.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
