Ford F150 Pickup. Instruction - part 1964

Fig. 18: Removing Upper Gearshift Lever
Courtesy of FORD MOTOR CO.

4. Remove the lower gearshift lever.

1. Use the Shift Linkage Remover/Installer to disconnect the lower gearshift lever to transfer case rod.

2. Remove the two lower gearshift lever bolts.

3. Remove the lower gearshift lever.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

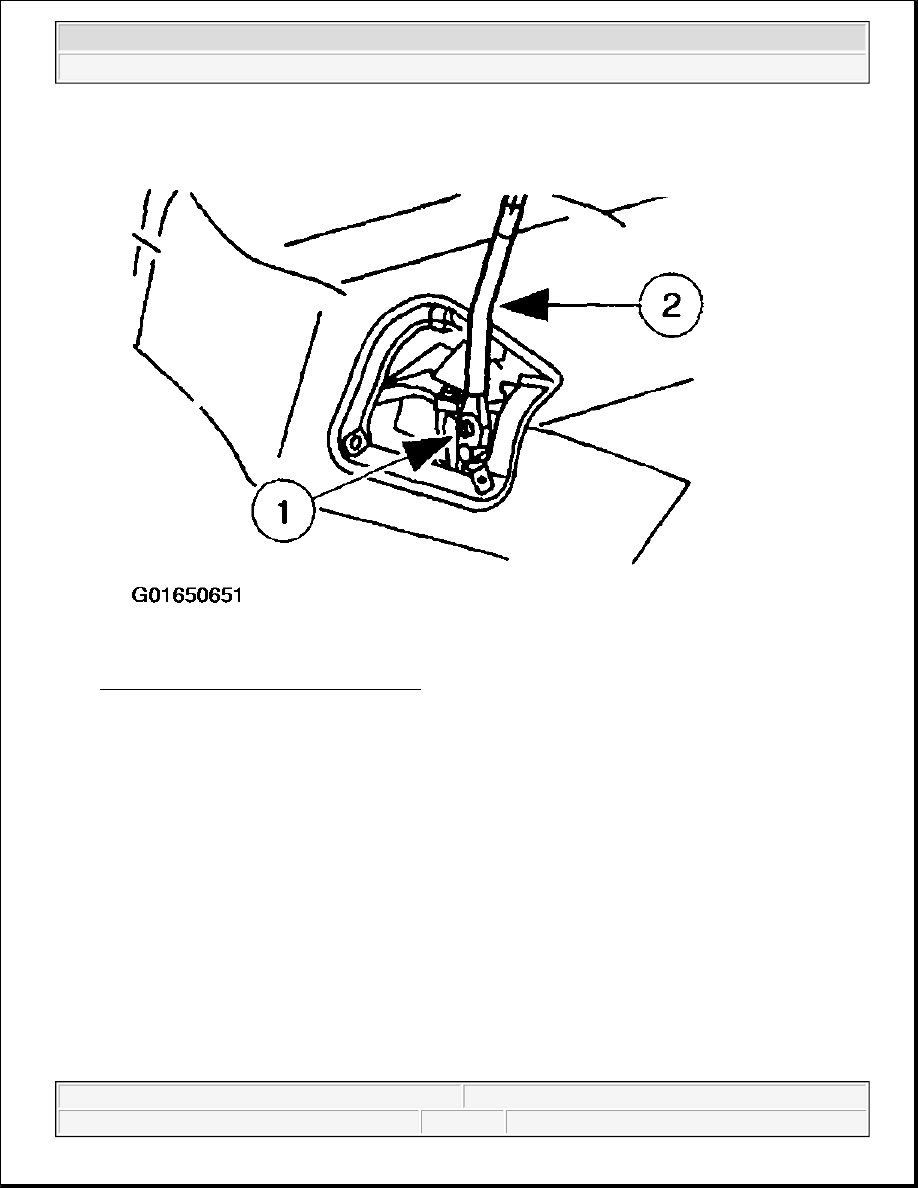

Fig. 19: Removing Lower Gearshift Lever
Courtesy of FORD MOTOR CO.

Installation

1. Install the lower gearshift lever.

1. Position the lower gearshift lever.

2. Install the two lower gearshift lever bolts.

3. Use the Shift Linkage Remover/Installer to connect the lower gearshift lever to transfer case rod.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup



Fig. 20: Installing Lower Gearshift Lever
Courtesy of FORD MOTOR CO.

2. Install the upper gearshift lever.

1. Position the upper gearshift lever.

2. Install the upper gearshift lever bolt.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

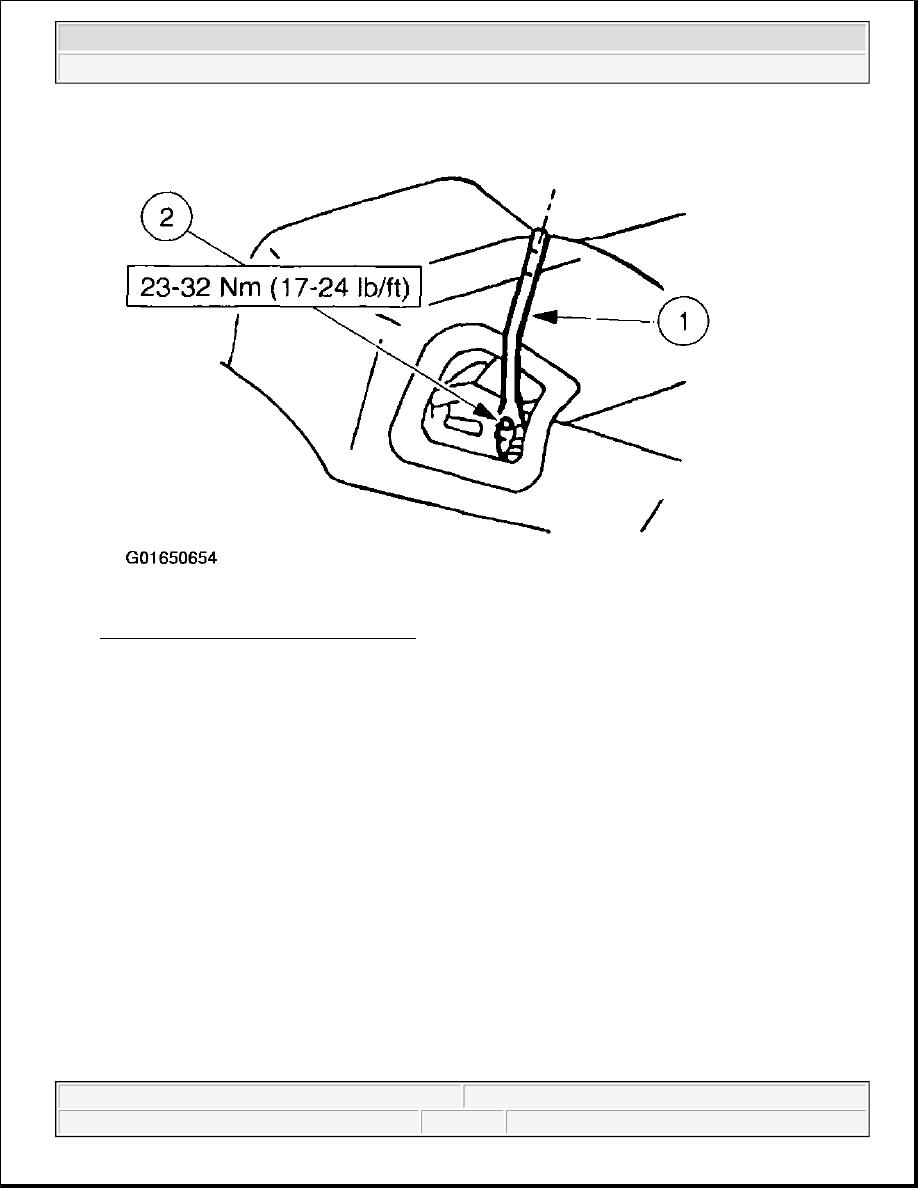

Fig. 21: Installing Upper Gearshift Lever
Courtesy of FORD MOTOR CO.

3. Install the gearshift lever cover.

1. Position the gearshift lever cover.

2. Install the four gearshift lever cover bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
