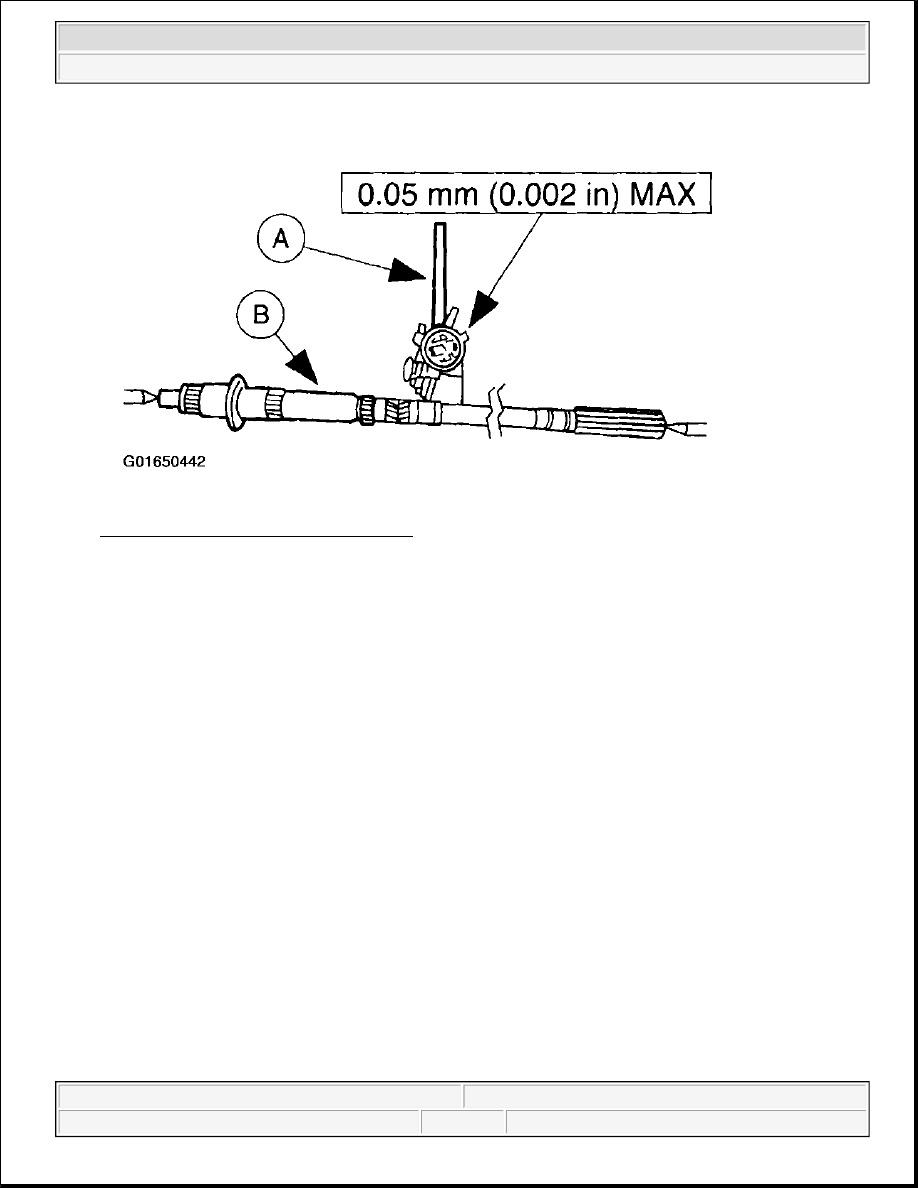

Fig. 132: Checking Output Shaft Runout
Courtesy of FORD MOTOR CO.

2. Identify the (A) third gear synchronizer blocking ring and (B) first, second and fourth synchronizer

blocking ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 133: Identifying Third Gear Synchronizer Blocking Ring & First, Second & Fourth
Synchronizer Blocking Ring
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



3. Inspect the (A) synchronizer blocking rings for proper contact with (B) cone surface of gears.

Fig. 134: Inspecting Synchronizer Blocking Rings For Proper Contact With Cone Surface Of Gears
Courtesy of FORD MOTOR CO.

4. Inspect the (A) synchronizer blocking rings for wear on (B) gear.

z

If clearance is less than specification, replace ring or gear.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 135: Inspecting Synchronizer Blocking Rings For Wear On Gear
Courtesy of FORD MOTOR CO.

5. Assemble the first and second gear assembly.

1. Install the second gear needle bearing.

2. Install the second gear.

3. Install the second synchronizer blocking ring.

4. Install the first/second synchronizer with the identification hole in the sleeve facing first gear.

5. Install the first gear synchronizer blocking ring.

6. Install first gear.

7. Install the first gear needle bearing.

8. Install the input bearing spacer.

9. Position the output shaft center bearing.
