3. Use (A) Bearing Cone Remover and (B) arbor press to remove the (C) bearing.

Fig. 124: Removing Bearing
Courtesy of FORD MOTOR CO.

Assembly

removed.

CAUTION: Hold the input shaft so it does not fall.

NOTE:

Only remove bearing if replacement is necessary.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



1. Use (A) Bearing Cone Replacer, (B) Pinion Bearing Cone Remover and arbor press to install the (C)

bearing.

Fig. 125: Installing Bearing
Courtesy of FORD MOTOR CO.

2. Install the front bearing oil scoop ring.

z

A click should be felt as the front bearing oil scoop ring notches align with the input shaft oil holes.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 126: Installing Front Bearing Oil Scoop Ring
Courtesy of FORD MOTOR CO.

OUTPUT SHAFT



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Special Tool(s)

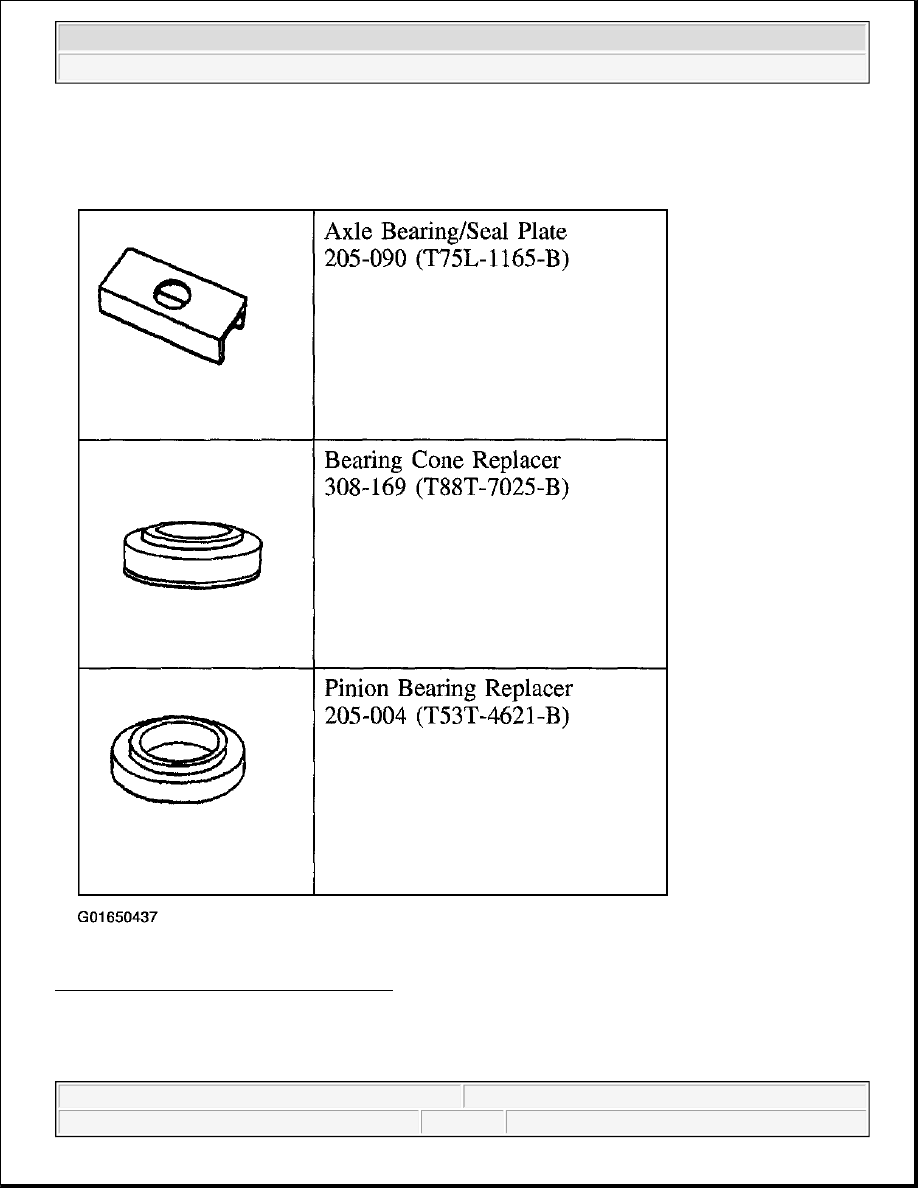

Fig. 127: Identifying Special Tool(s) (1 Of 2)
Courtesy of FORD MOTOR CO.
