Ford F150 Pickup. Instruction - part 1894

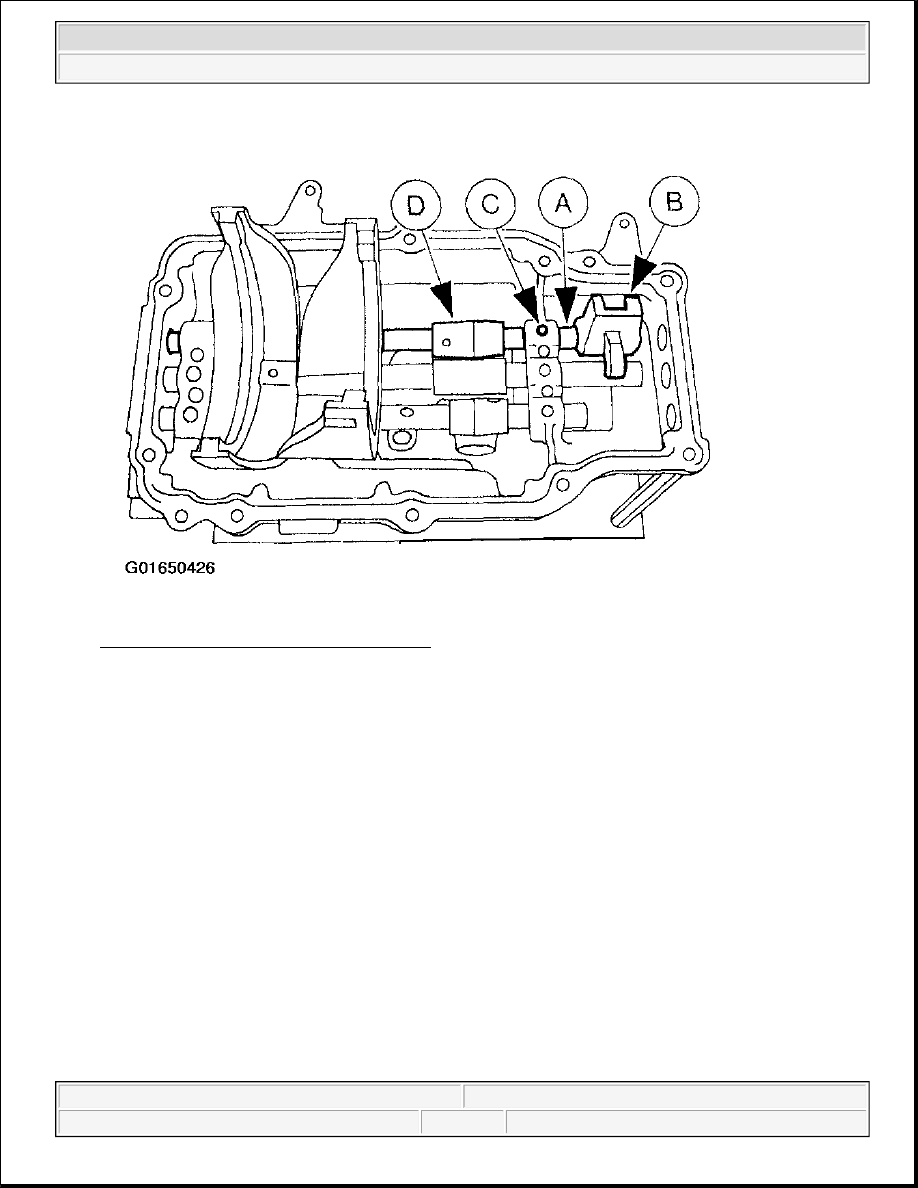

Fig. 116: Installing Fifth/Reverse Shift Rail
Courtesy of FORD MOTOR CO.

7. Install the rubber service bore plugs.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

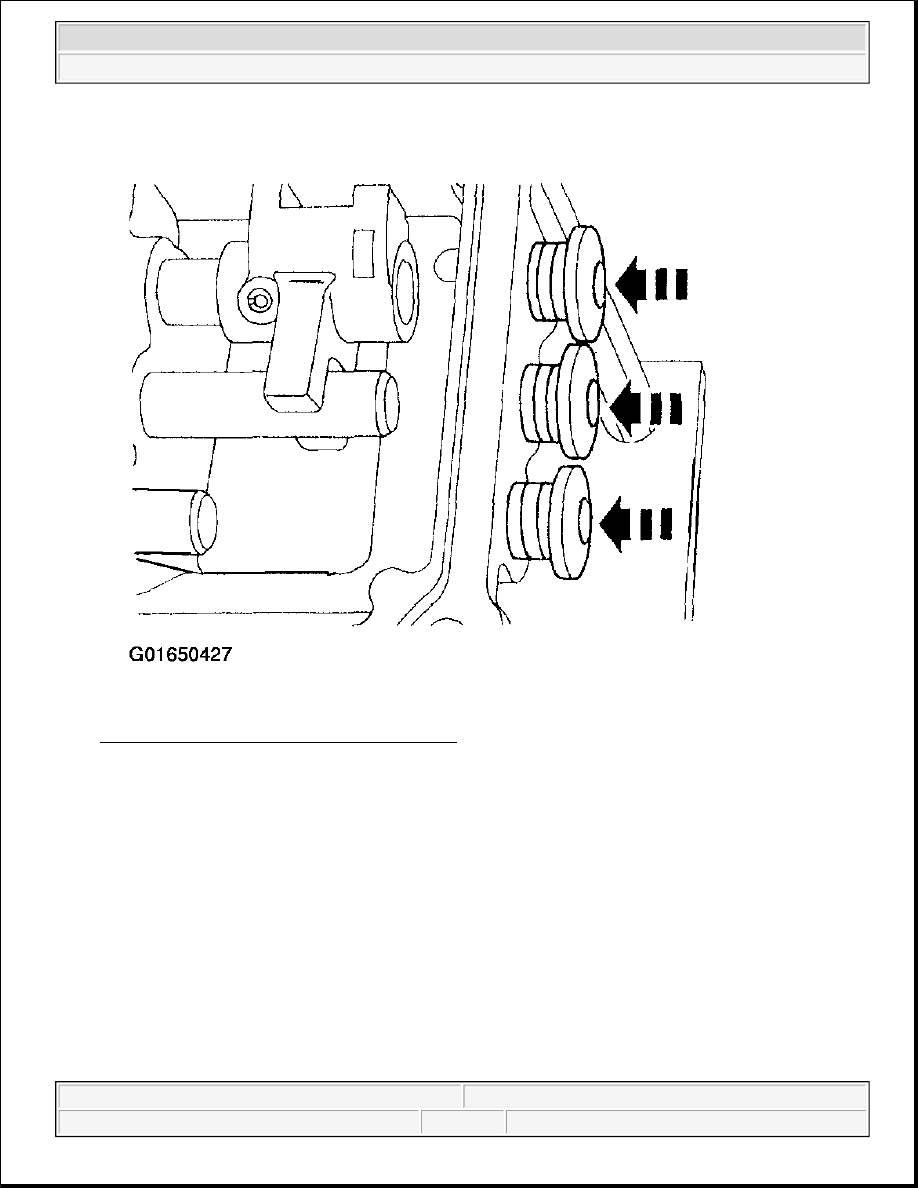

Fig. 117: Installing Rubber Service Bore Plugs
Courtesy of FORD MOTOR CO.

8. Install new shift gate spring pins.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 118: Installing New Shift Gate Spring Pins
Courtesy of FORD MOTOR CO.

9. Install new shift fork spring pins.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 119: Installing New Shift Fork Spring Pins
Courtesy of FORD MOTOR CO.

10. Install the backup lamp switch.

1. Install the backup lamp switch pin.

2. Install the backup lamp switch.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
