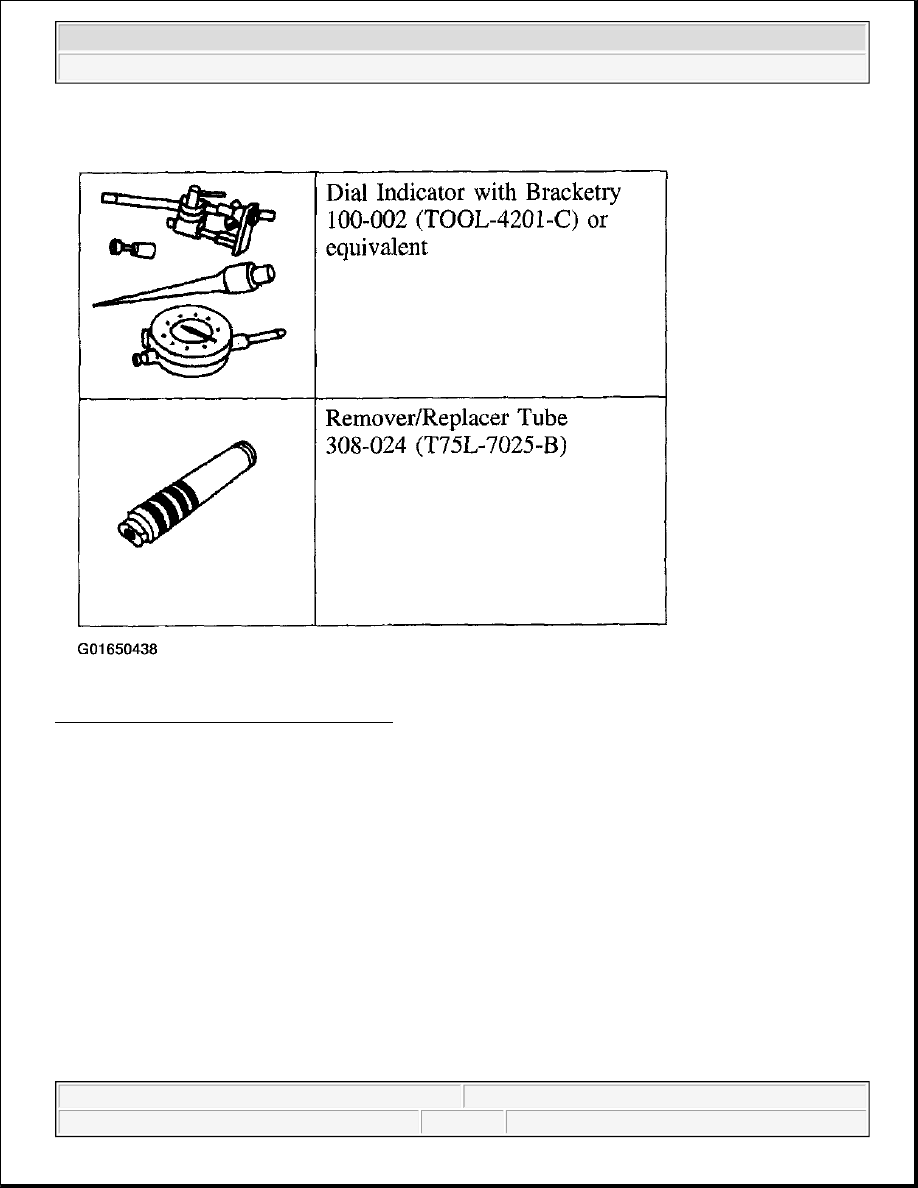

Fig. 128: Identifying Special Tool(s) (2 Of 2)
Courtesy of FORD MOTOR CO.

Disassembly

1. Remove the (A) transmission input shaft pilot bearing (7118), (B) bearing outer snap ring (7030), (C)

third and fourth synchronizer spacer (7N112) and (D) thrust bearing (7C096)



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

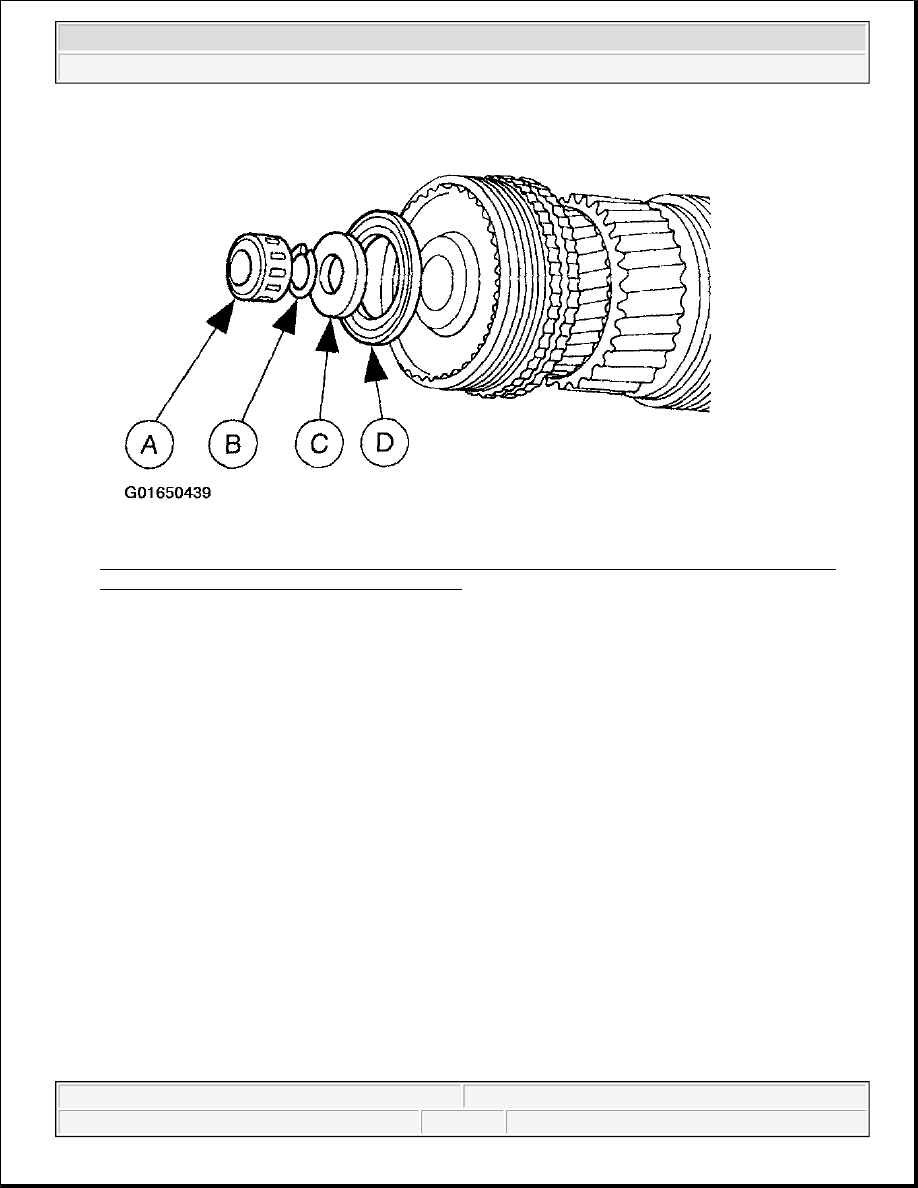

Fig. 129: Removing Transmission Input Shaft Pilot Bearing, Bearing Outer Snap Ring, Third &
Fourth Synchronizer Spacer & Thrust Bearing
Courtesy of FORD MOTOR CO.

2. Remove the (A) third/fourth synchronizer (7124), (B) third gear synchronizer blocking ring (7107), (C)

third gear and (D) gear bearing (7127).



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

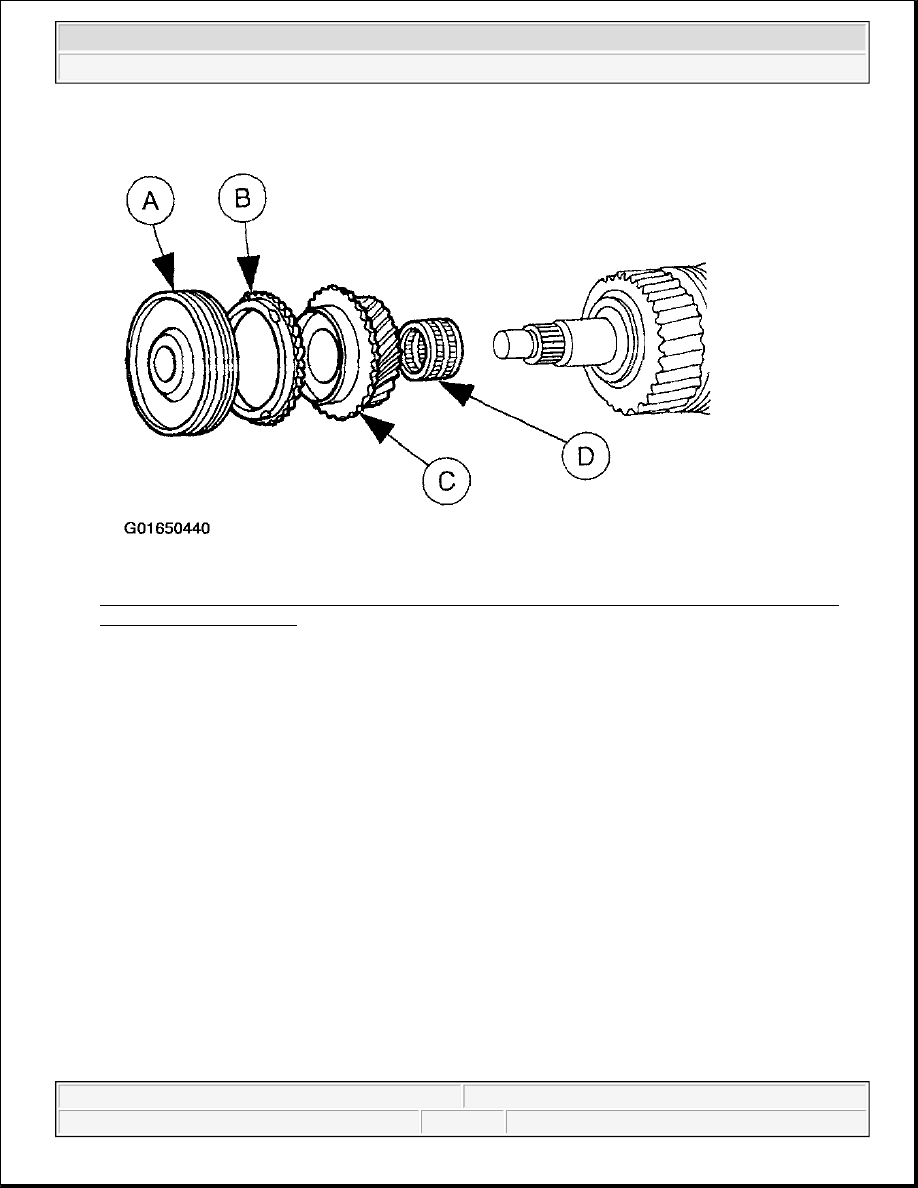

Fig. 130: Removing Third/Fourth Synchronizer, Third Gear Synchronizer Blocking Ring, Third
Gear & (D) Gear Bearing
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that the output shaft flange does not contact or ride up

onto press cradle. Improper positioning can result in component
damage.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

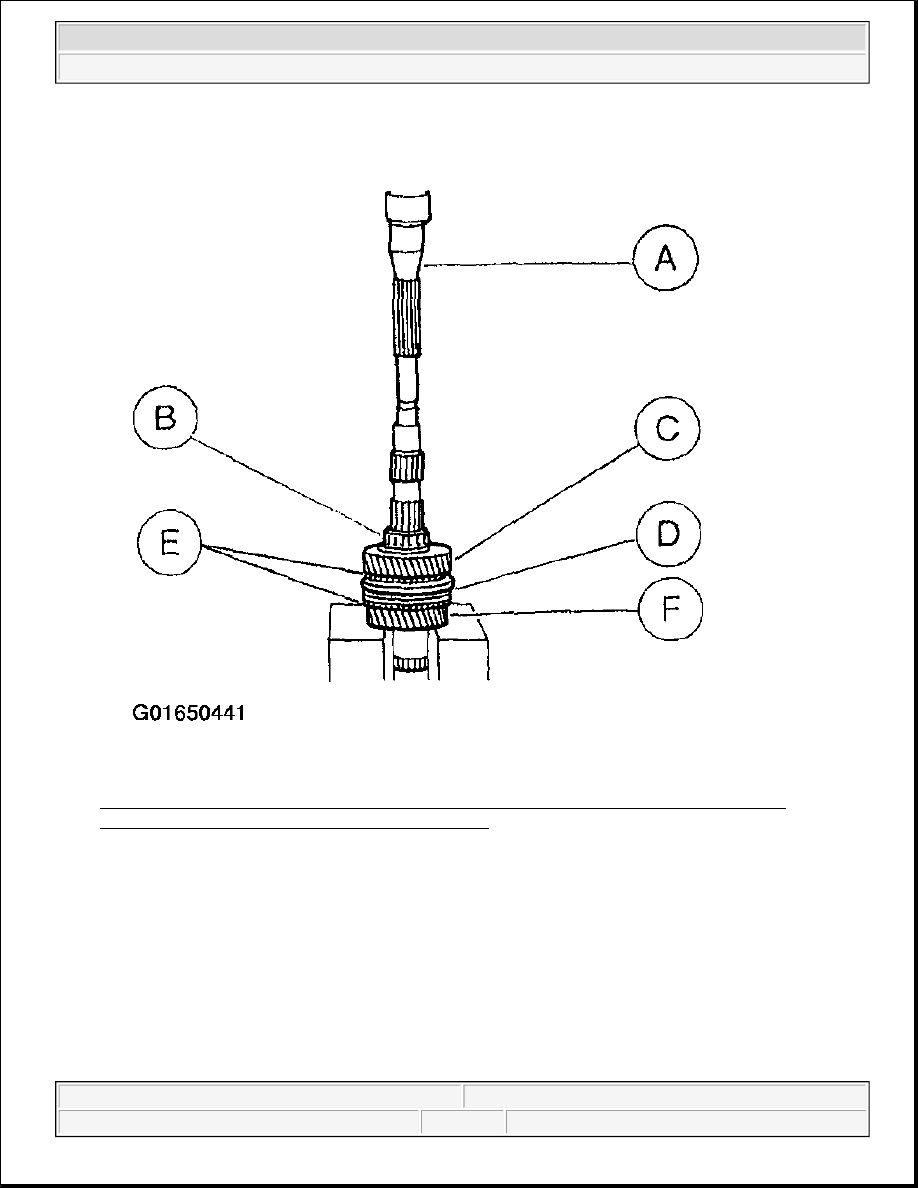

Fig. 131: Removing Output Shaft Center Bearing, First Gear, First/Second Synchronizer,
First/Synchronizer Blocking Rings & Second Gear
Courtesy of FORD MOTOR CO.

3. Use an (A) arbor press to remove the (B) output shaft center bearing (7025), (C) first gear, (D)

first/second synchronizer, (E) first/synchronizer blocking rings and (F) second gear.

Assembly

1. Use (A) Dial Indicator with Bracketry to check (B) output shaft runout.

z

Check runout in several places along the output shaft. If runout exceeds specification, replace the
shaft.
