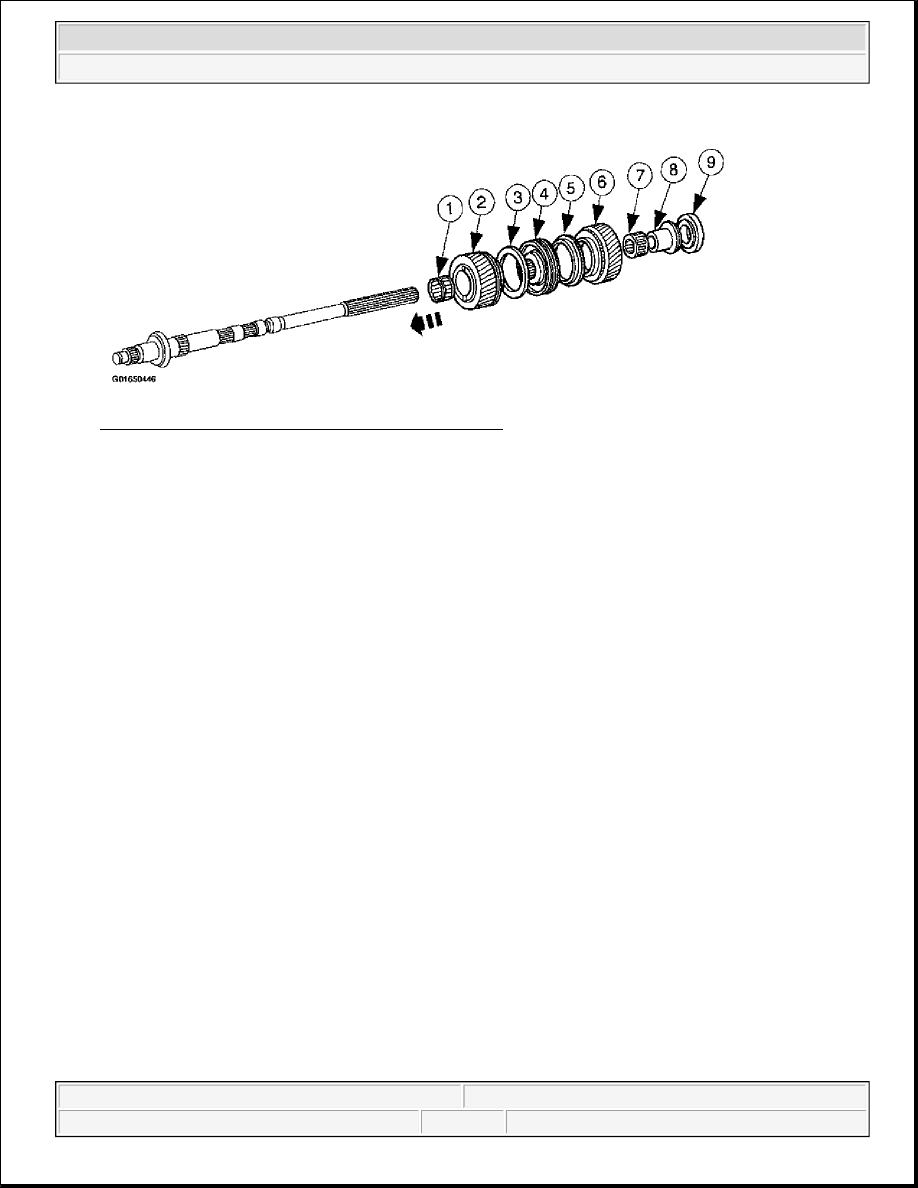

Fig. 136: Assembling First & Second Gear Assembly
Courtesy of FORD MOTOR CO.

6. Use (A) Pinion Bearing Replacer, (B) Remover/Replacer Tube and (C) an arbor press to press the (D)

center bearing into place.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 137: Pressing Center Bearing
Courtesy of FORD MOTOR CO.

NOTE:

Install the third/fourth synchronizer with the chamfer on the sleeve facing
fourth gear.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

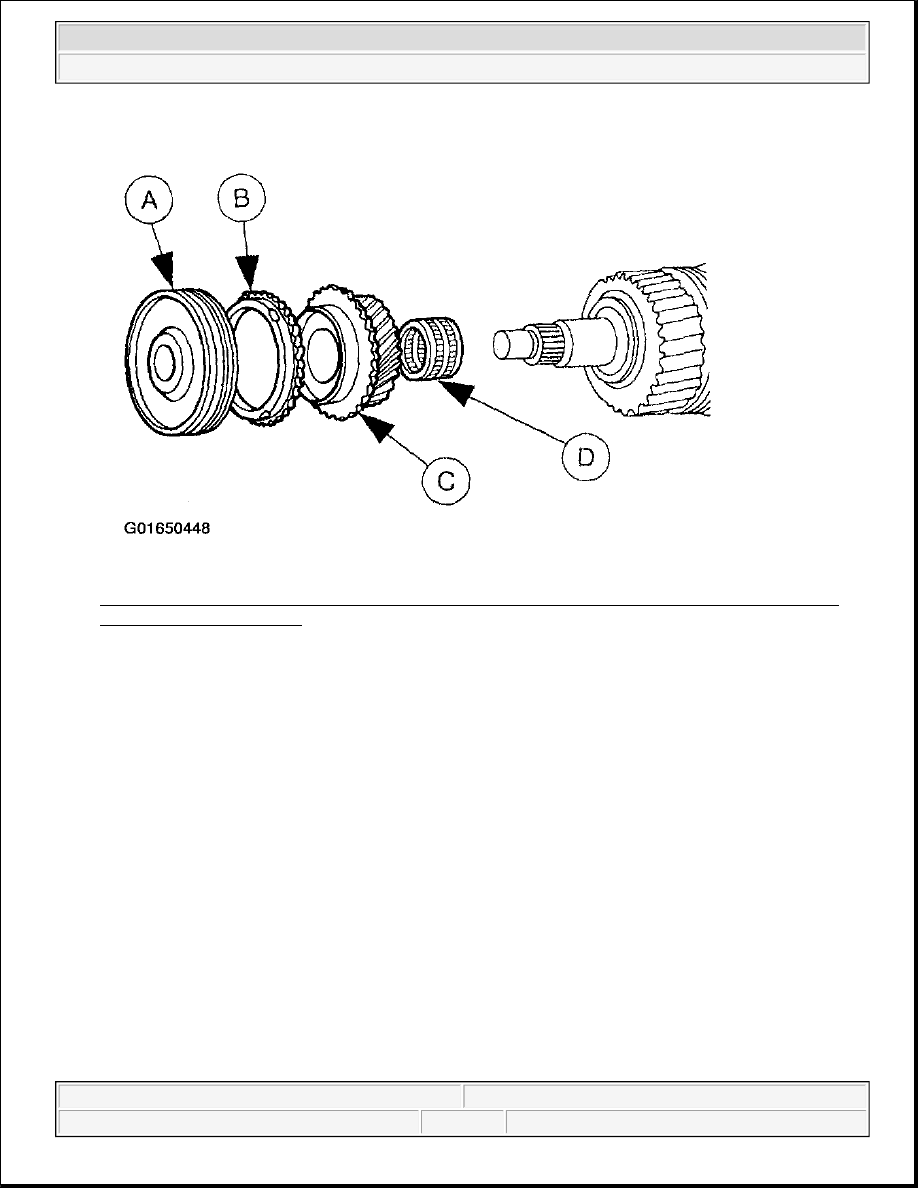

Fig. 138: Installing Third Gear Bearing, Third Gear, Third Gear Synchronizer Blocking Ring &
Third/Forth Synchronizer
Courtesy of FORD MOTOR CO.

7. Install the (D) third gear bearing, (C) third gear, (B) third gear synchronizer blocking ring and (A)

third/forth synchronizer.

8. Install the (D) thrust bearing, (C) third and fourth synchronizer spacer, (B) bearing outer snap ring and

(A) transmission input shaft pilot bearing.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

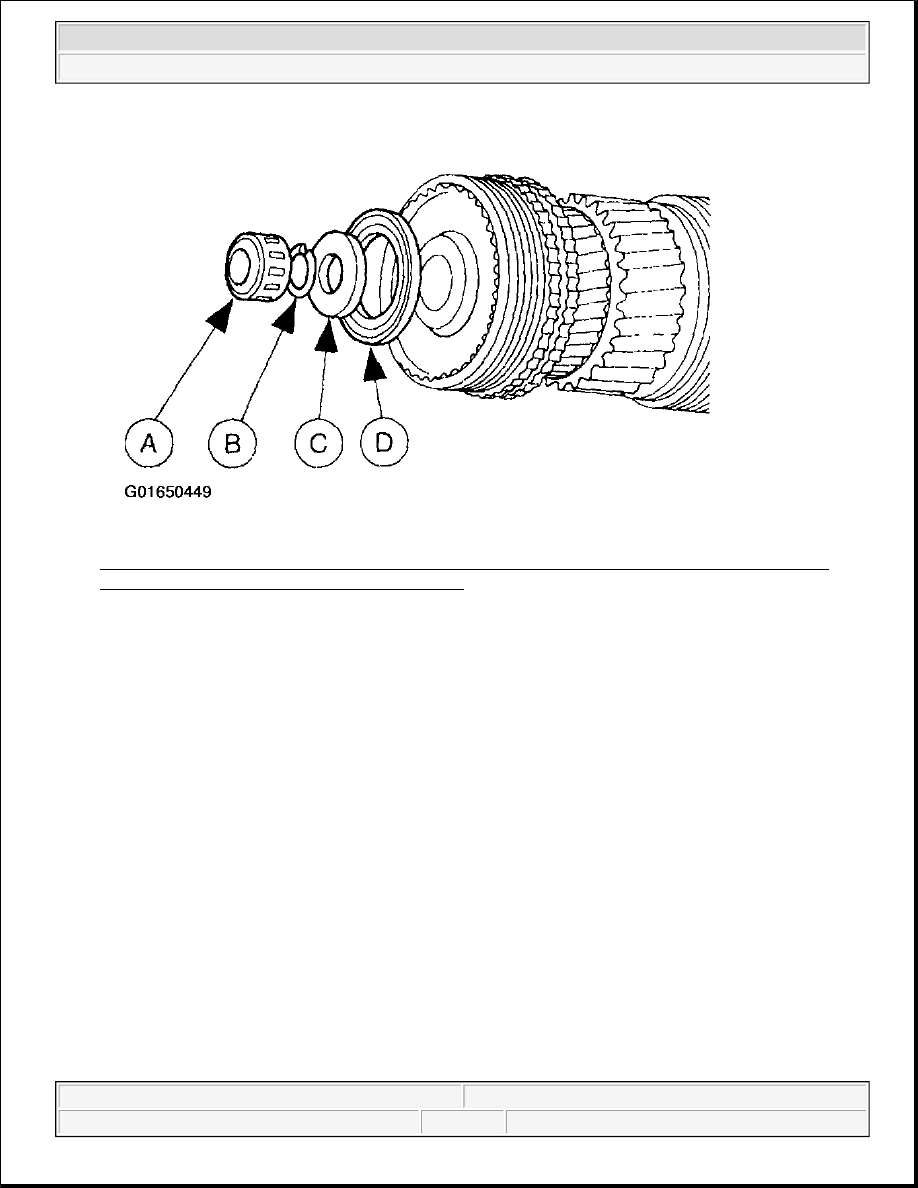

Fig. 139: Installing Thrust Bearing, Third & Fourth Synchronizer Spacer, Bearing Outer Snap
Ring & Transmission Input Shaft Pilot Bearing
Courtesy of FORD MOTOR CO.

9. Check the third/fourth clutch hub end play.

z

If clearance is not within specification, select proper bearing outer snap ring.
