Ford F150 Pickup. Instruction - part 1846

Crossmember Bolts

4R100

(3)

66 (90)

4R70W

59 (80)

Dampener Bolts

(3)

 (4R100)

35 (47)

Exhaust Hanger Bracket Bolt

(1)

 &

(3)

30 (40)

Extension Housing Bolts

4R100

34 (46)

4R70W

20 (27)

Front & Rear Drive Shaft Bolts

(2)

76 (103)

Fuel Line Bracket-To-Stud Nut

(1)

18 (25)

Insulator Bolts

(1)

 &

(3)

72 (98)

Insulator Retainer-To-Crossmember Nuts

(1)

 &

(3)

75 (101)

Instruction Control Lever Shaft Nut

Inner

(2)

19-27 (26-37)

Outer

(2)

22-26 (30-35)

Instruction Valve Detent Lever Nut

(1)

35 (47)

Mount-To-Crossmember Nuts

(2)

66 (90)

Transmission Drain Plug

(1)

18 (25)

INCH Lbs. (N.m)

Accumulator Body, Main Control Valve Body & Solenoid Body Nuts & Bolts

89 (10)

LH & RH Heat Sheild-To-Crossmember Bolts

(1)

133 (15)

Instruction Valve Detent Lever Spring Bolt

(2)

89 (10)

Oil Pan Bolts

4R100

133 (15)

4R70W

124 (14)

OSS & TSS Bolts

(1)

71-89 (8-10)

Range Sensor Bolts

4R100

80 (9)

4R70W

62-89 (7-10)

Separator Plate Reinforcement Bolts

(1)

89 (10)

Torque Converter Drain Plug

9 (12)

(1)

Specification only applies to 4R100 transmission model.

(2)

Specification only applies to 4R70W transmission model.

(3)

Specification only applies to RWD models.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator



2003 TRANSMISSIONS

Clutch - F150 Pickup

SPECIFICATIONS

GENERAL SPECIFICATIONS

Fig. 1: Clutch General Specifications
Courtesy of FORD MOTOR CO.

TORQUE SPECIFICATIONS



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup





2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup



Fig. 2: Torque Specifications
Courtesy of FORD MOTOR CO.

REMOVAL & INSTALLATION

DISC & PRESSURE PLATE

Special Tool(s)

Fig. 3: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Removal

1. Remove the transmission. For additional information, refer to MANUAL TRANSMISSION - F150

PICKUP .

2. If the parts are to be reused, mark the clutch pressure plate (7563) and the flywheel (6375).



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup

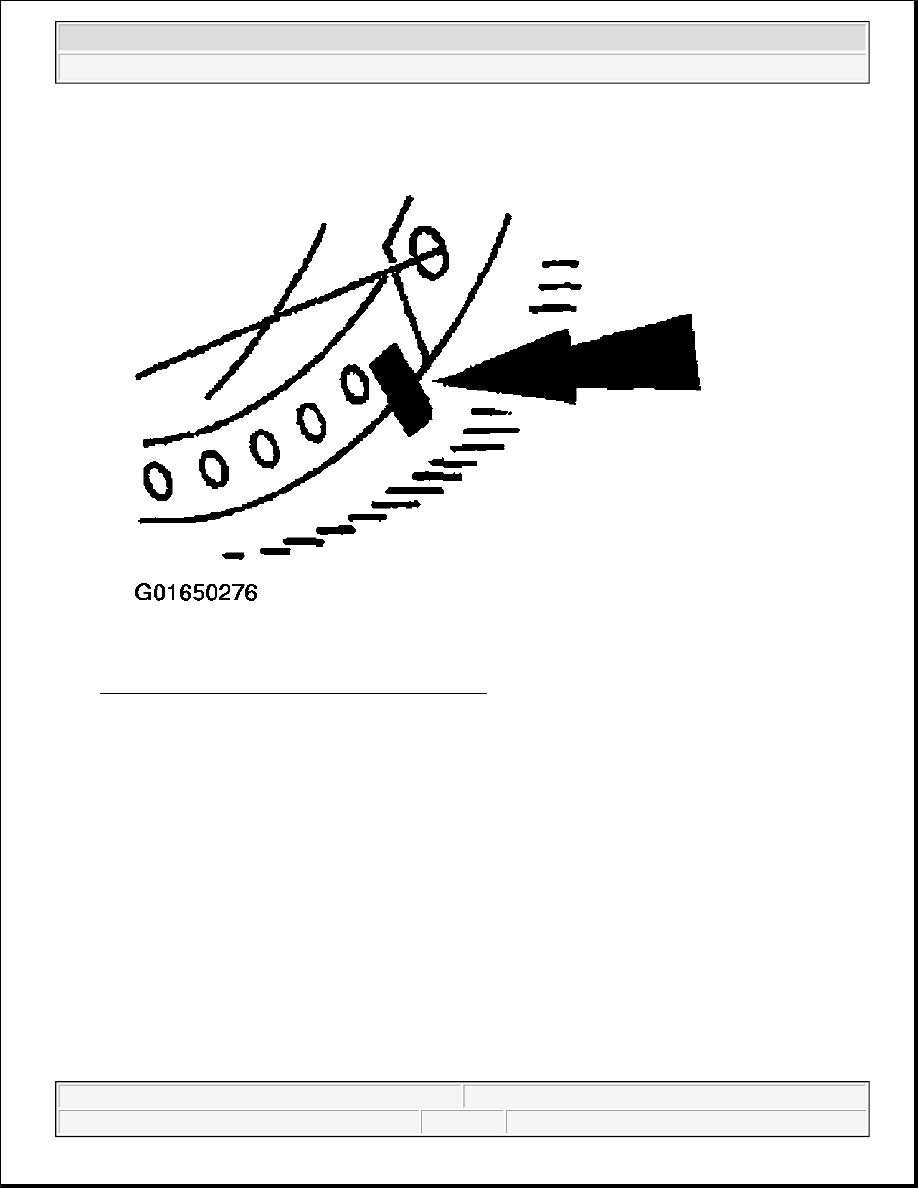

Fig. 4: Identifying Mark On Clutch Pressure Plate
Courtesy of FORD MOTOR CO.

3. Remove the clutch pressure and clutch disc (7550).

1. Remove the bolts.

2. Remove the clutch pressure plate and the clutch disc.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup
