Ford F150 Pickup. Instruction - part 1847

Fig. 5: Removing Clutch Pressure & Clutch Disc
Courtesy of FORD MOTOR CO.

Installation

NOTE:

The self-adjusting clutch pressure plate should always be adjusted before
installation.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup



Fig. 6: Compressing Clutch Diaphragm Fingers
Courtesy of FORD MOTOR CO.

1. Compress the clutch diaphragm fingers.

1. Place (A) the flywheel and (B) the pressure plate in a press.

2. Use a (C) suitable adapter and press the (D) clutch diaphragm fingers until the adjusting ring moves

freely.

2. Adjust the clutch pressure plate.

z

Rotate (A) adjusting ring counterclockwise until the (B) tension springs are compressed.

z

Hold (A) adjusting ring while releasing the pressure on the clutch fingers.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup

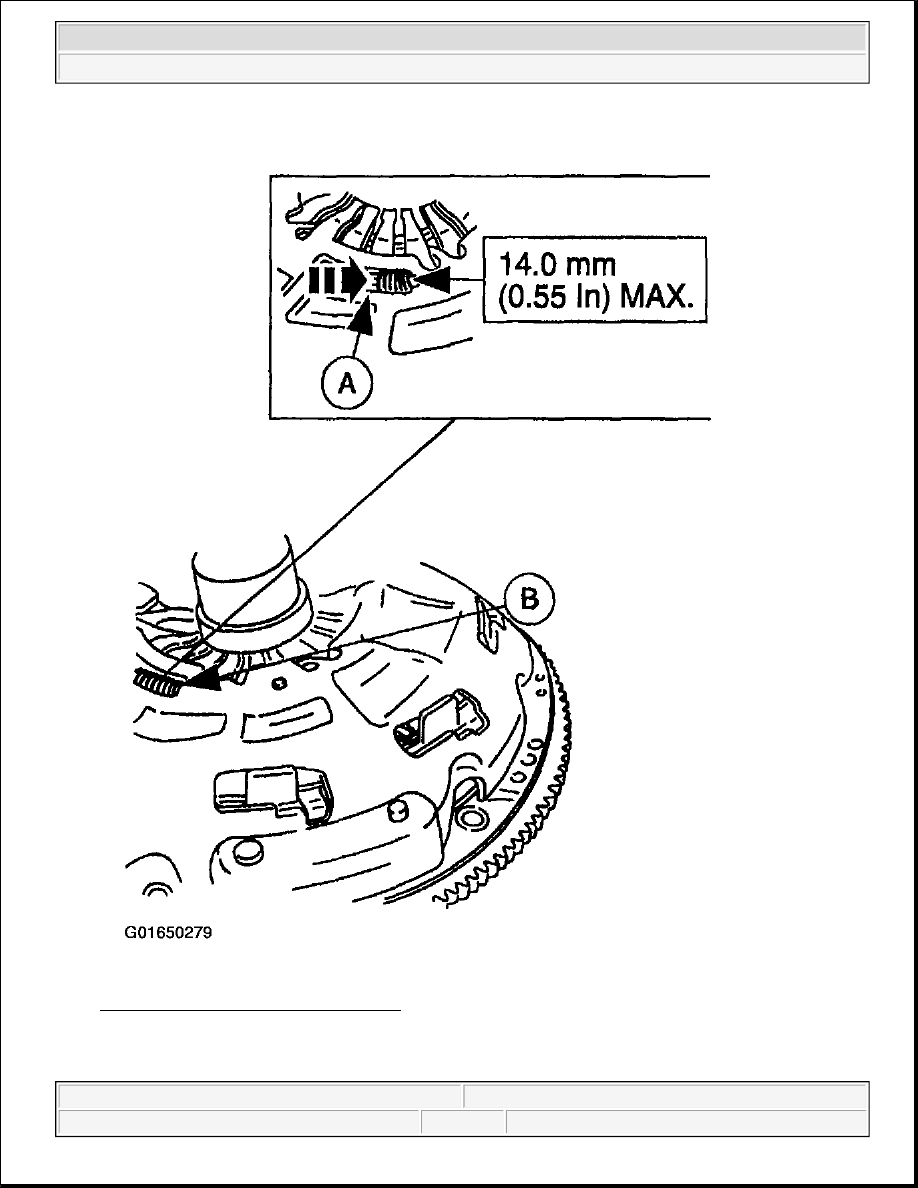

Fig. 7: Adjusting Clutch Pressure Plate
Courtesy of FORD MOTOR CO.

3. Position the (A) clutch disc on the (B) flywheel.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup



z

Use (C) Clutch Aligner to align the clutch disc.

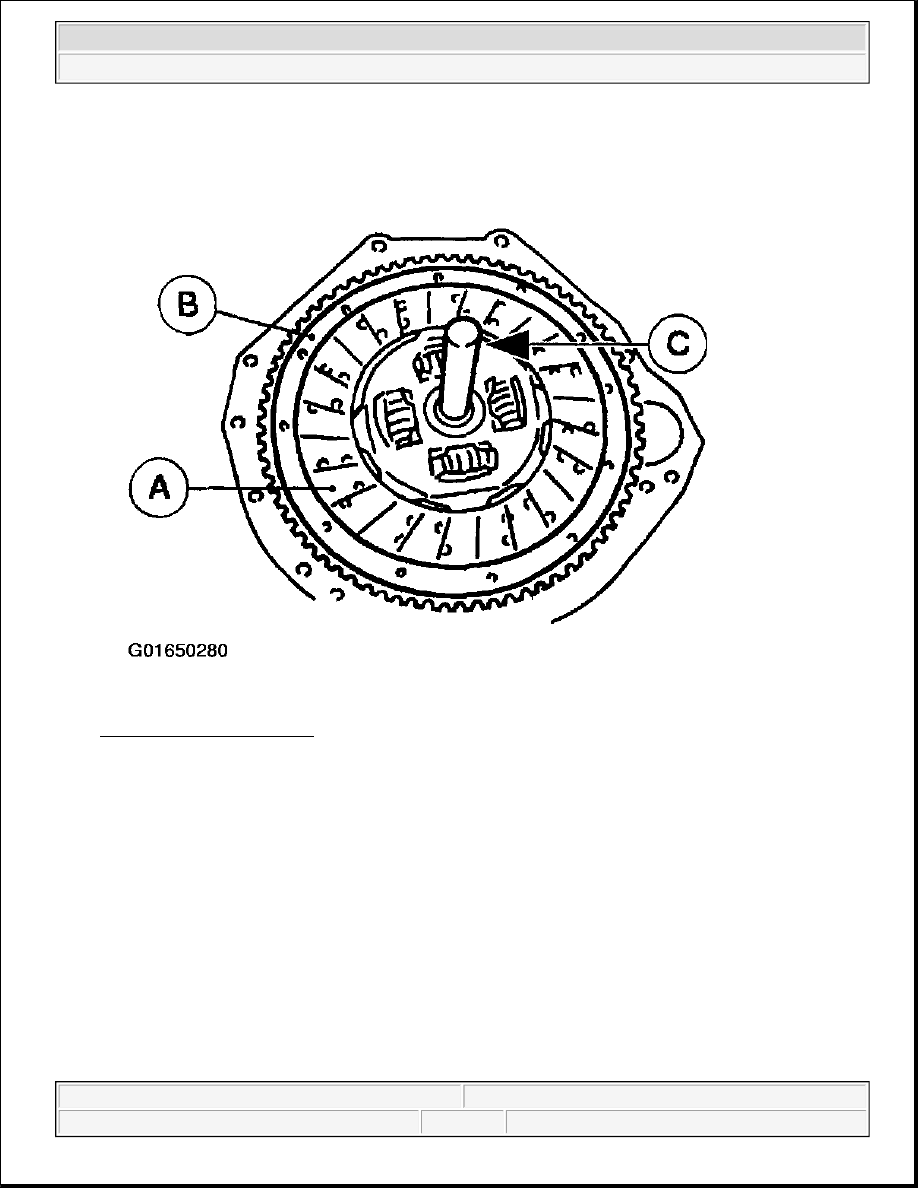

Fig. 8: Aligning Clutch Disc
Courtesy of FORD MOTOR CO.

NOTE:

If reusing the clutch pressure plate and flywheel, use marks made during
removal.



2003 Ford Pickup F150

2003 TRANSMISSIONS Clutch - F150 Pickup
