Ford F150 Pickup. Instruction - part 1845

Fig. 54: Torque Sequence For Valve Body
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator

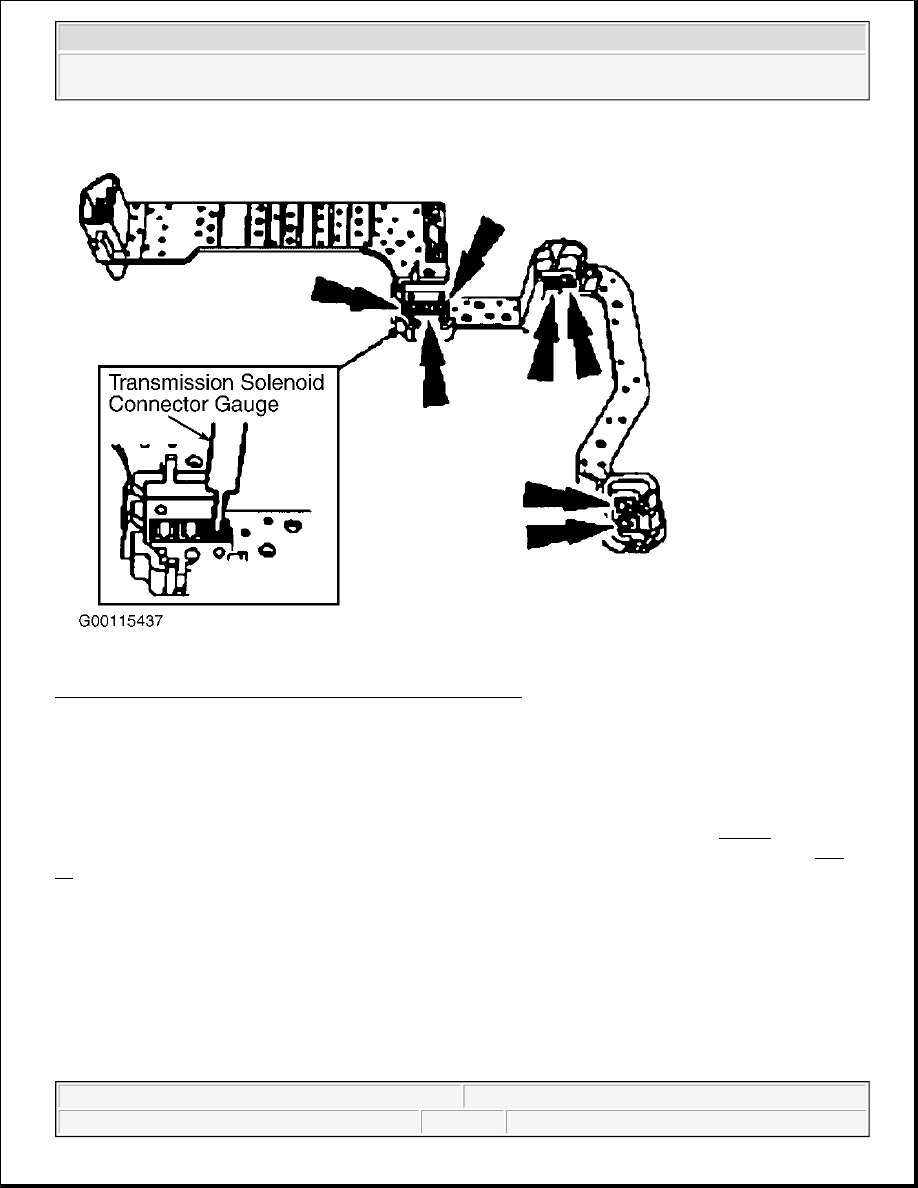

Fig. 55: Identifying Transmission Solenoid Connector Gauge
Courtesy of FORD MOTOR CO.

1-2 ACCUMULATOR PISTON

Removal

Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring. See Fig. 56 . Note the
location of the 1-2 accumulator springs for reference during assembly. Remove the 1-2 accumulator. See Fig.
57 . Remove the 1-2 accumulator cover. Remove the lower 1-2 accumulator spring. Remove the accumulator
piston. Remove the upper 1-2 accumulator spring.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator

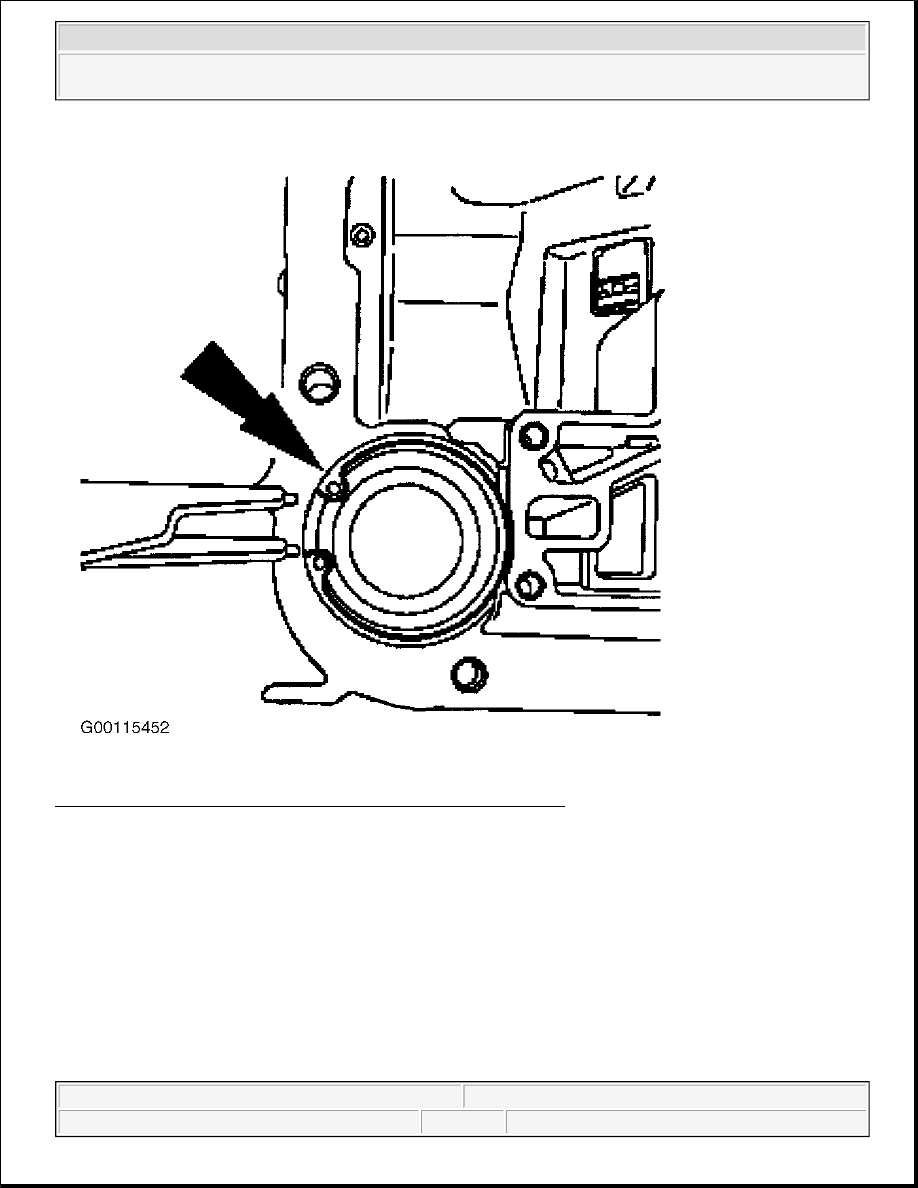

Fig. 56: Removing & Installing 1-2 Accumulator Cover Snap-Ring
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator

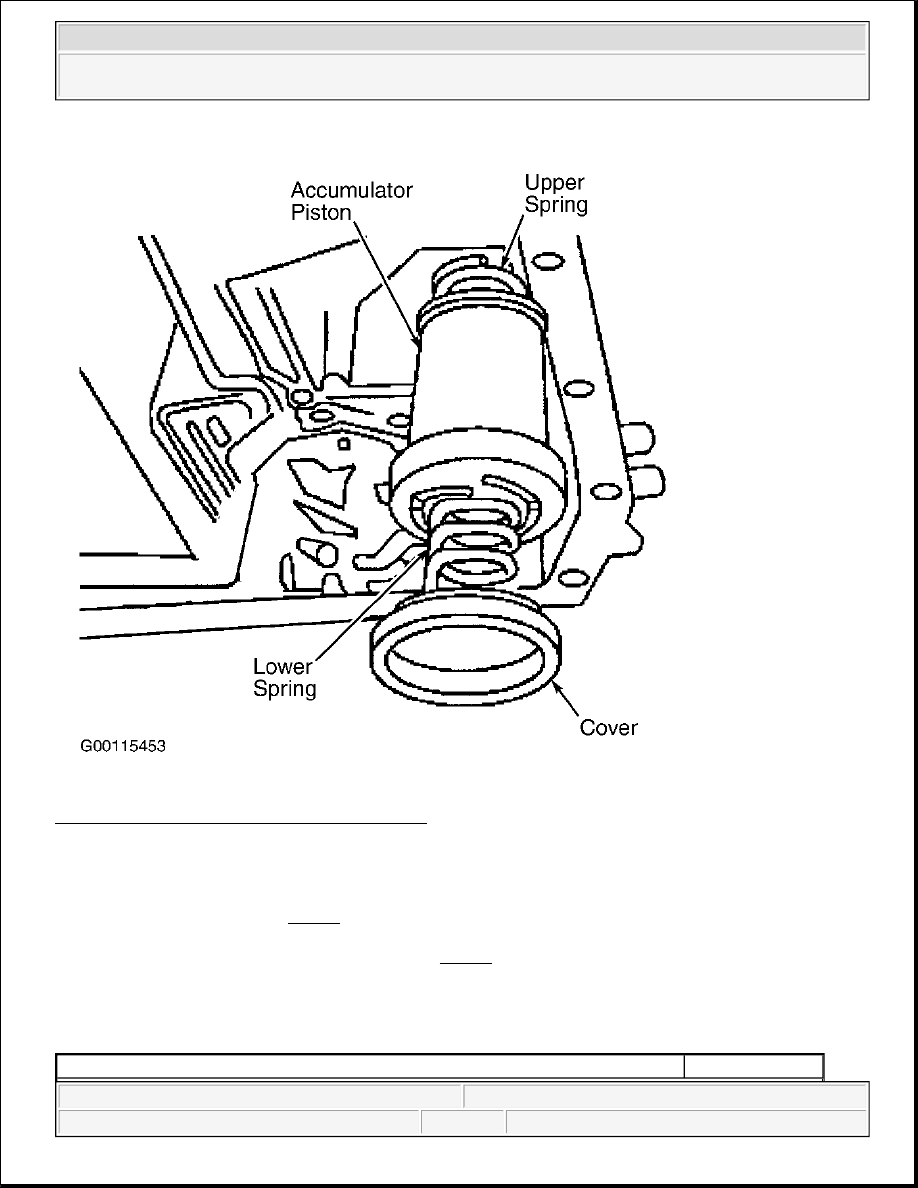

Fig. 57: Removing & Installing 1-2 Accumulator
Courtesy of FORD MOTOR CO.

Installation

Install the 1-2 accumulator. See Fig. 57 . Install the 1-2 accumulator upper spring. Install the accumulator
piston. Install the 1-2 accumulator lower spring. Install the cover and seal assembly. Compress the accumulator
and install the accumulator piston retaining ring. See Fig. 56 .

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator
