Ford F150 Pickup. Instruction - part 1843

Installation

1. Clean and inspect valve body thoroughly. Do not clean rubber check balls with solvent. If separator plate

was not removed, go to step 4 .

2. Apply petroleum jelly on valve body separator plate where check balls are to be placed. Lightly coat 8

rubber check balls and EPC steel check ball with petroleum jelly and place in position on separator plate.
See Fig. 48 .

3. Apply petroleum jelly to EPC check ball and spring and install into case. See Fig. 49 . Case must be dry

and free of ATF, or petroleum jelly will not hold spring and check ball in place while installing separator
plate. The word UP on reinforcing plate MUST be visible. Install separator plate, gaskets and reinforcing
plate. Tighten separator plate retaining bolts to specification. See TORQUE SPECIFICATIONS .

4. Install solenoid screen and lock in place. Install the solenoid body assembly nut and bolts. See Fig. 45 .

Finger-tighten solenoid body assembly nut and bolts. Install the valve body, aligning the instruction shift
valve with the manual valve detent lever.

5. Install and finger-tighten the valve body nuts and bolts. If previously installed, remove, then reinstall the

bolt into the separator plate reinforcing plate. See Fig. 47 . Install accumulator body and finger-tighten
the nuts and bolts. Tighten all the accumulator body, valve body, and solenoid body nuts and bolts.
Tighten the bolts working from the center to the outside. See Fig. 41 , Fig. 43 and Fig. 45 .

6. Install the transmission fluid filter, gasket and pan. Tighten transmission fluid pan bolts to specification.

Coat case connector bore with petroleum jelly and install solenoid body retaining bolts and nut, then
tighten to specification. See TORQUE SPECIFICATIONS . Connect the solenoid body harness
connector. Lower the vehicle. Connect the battery ground cable. Fill the transmission with appropriate
fluid to proper level and check for correct transmission operation. See LUBRICATION .



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator



Fig. 48: Locating Case Check Balls On Separator Plate
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator



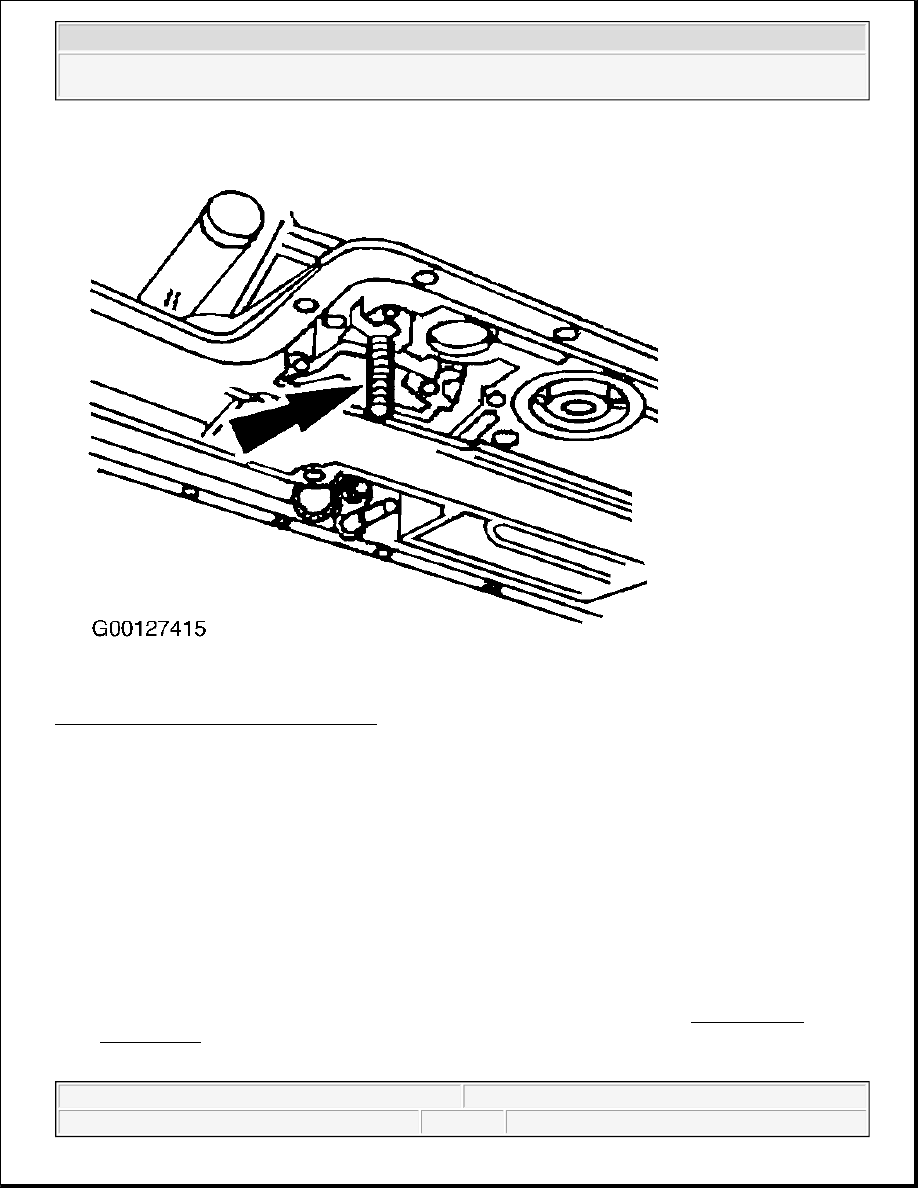

Fig. 49: Installing EPC Check Ball Spring
Courtesy of FORD MOTOR CO.

VALVE BODY ASSEMBLY (4R70W)

Removal

1. Drain the transmission fluid and remove the transmission fluid pan and filter. See DRAINING &

REFILLING under LUBRICATION.

2. Disconnect the molded lead frame from the solenoids. Disconnect the shift solenoid shift solenoids "A"

CAUTION: Do not pull on the molded lead frame. This may cause damage to the

connector ends. Carefully pry up on the locking tabs to disconnect the
solenoids.

NOTE:

If valve body removal is necessary, ensure correct separator plate-to-case
gasket is used during installation.



2003 Ford Pickup F150

2003 AUTOMATIC TRANSMISSIONS Servicing - Blackwood, Econoline, Excursion, Expedition, "F" Series Pickup &

Navigator



and "B" (1). See Fig. 14 . Disconnect the Torque Converter Clutch (TCC) solenoid (2).

3. Disconnect the Electronic Pressure Control (EPC) solenoid (3). Disconnect the bulkhead inter-connector

(4). Remove the instruction control valve detent lever spring bolt (1). See Fig. 33 .

4. Remove the instruction control valve detent lever spring (2). Remove the 24 valve body-to-case bolts See

Fig. 50 . Remove the valve body and discard the pump outlet screen. See Fig. 51 .

Fig. 50: Locating Valve Body Bolts
Courtesy of FORD MOTOR CO.
