Ford F150 Pickup. Instruction - part 1810

Courtesy of FORD MOTOR CO.

Rear (F150 Pickup)

To measure rear ride height, see Fig. 11 or Fig. 12 . For ride height specifications, see Fig. 10 .

2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup

2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup

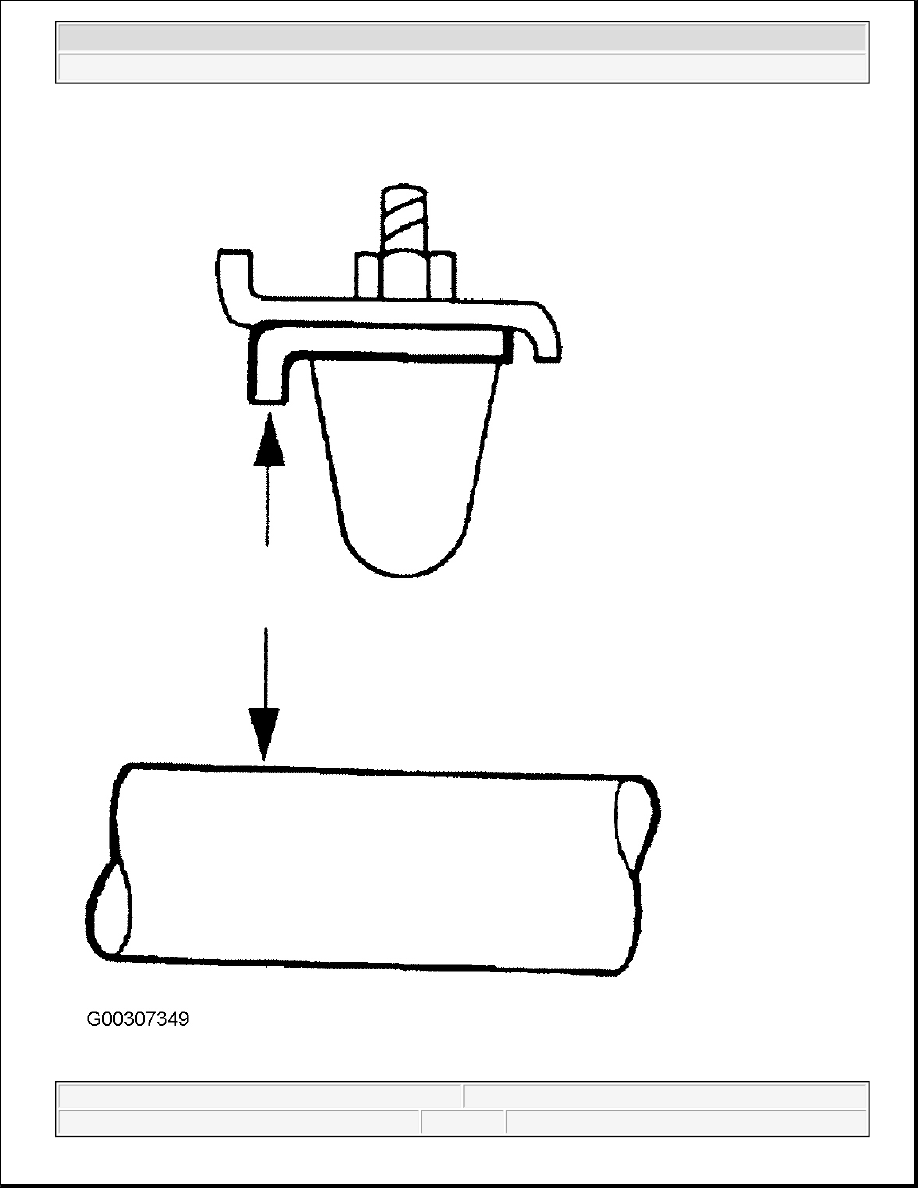

Fig. 11: Rear Ride Height Measuring Points (F150 Pickup 2WD)
Courtesy of FORD MOTOR CO.
