Ford F150 Pickup. Instruction - part 1808

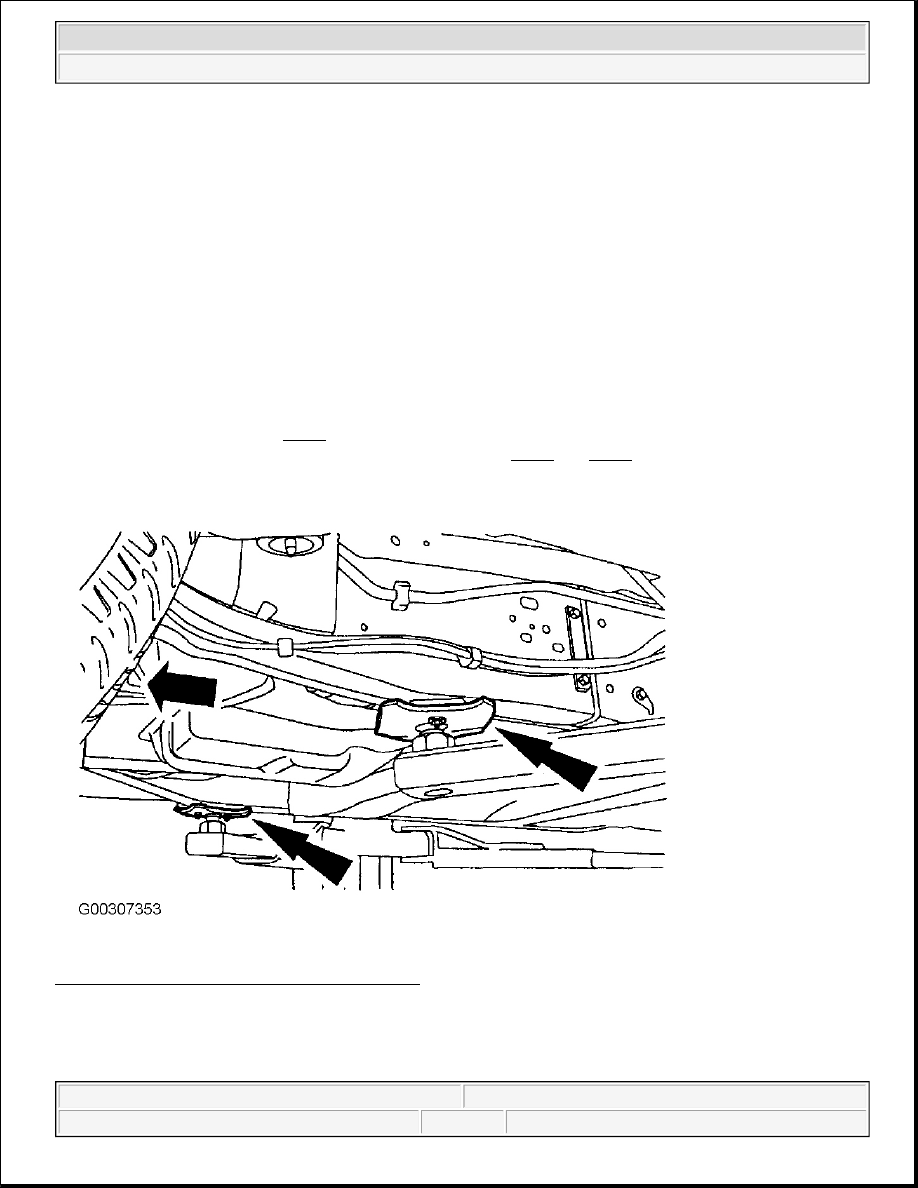

Fig. 3: Front Jacking Contact Points (F150 Pickup 4WD)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup



Fig. 4: Rear Jacking Contact Points (Blackwood & F150 Pickup)
Courtesy of FORD MOTOR CO.

Blackwood

Disable the air suspension system. See Fig. 1 . Place a wheel chock diagonally opposite of the wheel to be
raised. For front jacking point, position the jack on the frame rail, behind the front tire. See Fig. 2 . For rear
jacking point, position the jack under the rear axle as near as possible to the spring mount. See Fig. 4 .

NOTE:

Never lift or support the vehicle by placing the jack or stand under the rear axle
differential.



2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup



FRAME CONTACT HOIST

Blackwood

Disable the air suspension. See Fig. 1 . Assure the hoist will not interfere with any lines, hoses, clips or wiring
harnesses. Position the hoist directly under the frame rails. See Fig. 5 and Fig. 6 .

Fig. 5: Front Frame Lifting Points (Blackwood)
Courtesy of FORD MOTOR CO.

CAUTION: Damage to suspension, exhaust and steering linkage components may

occur if care is not exercised when positioning the hoist adapters prior to
lifting the vehicle.

CAUTION: Assure the hoist to be used is of sufficient capacity to raise and support

the vehicle. Refer to the hoist manufacturer literature. Damage to
suspension, exhaust, fuel system and steering linkage components may
occur if care is not exercised when positioning the hoist adapters prior to
lifting the vehicle.



2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup



Fig. 6: Rear Frame Lifting Points (Blackwood)
Courtesy of FORD MOTOR CO.

F150 Pickup

For frame lifting points, see Fig. 7 .

Fig. 7: Frame Lifting Points (F150 Pickup)
Courtesy of FORD MOTOR CO.

CAUTION: Damage to suspension, exhaust and steering linkage components may

occur if care is not exercised when positioning the hoist adapters prior to
lifting the vehicle.



2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup
