RIDING HEIGHT

CHECKING PROCEDURES

Front (Blackwood)

Information for front ride height specification is not available from manufacturer. For side to side front vehicle
lean specification, see WHEEL ALIGNMENT SPECIFICATIONS .

Rear (Blackwood)

Measure vehicle rear height (driver side) from the bottom of the jounce bumper metal housing to the jounce pad
on the rear axle. See Fig. 8 . Measurement should be 3.6" (92 mm). If adjustment is necessary, see
ADJUSTMENT PROCEDURES .

NOTE:

On vehicles with electronic chassis controls, all systems should be functional
before attempting ride height or wheel alignment adjustment. See appropriate
ELECTRONIC article in SUSPENSION.



2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup



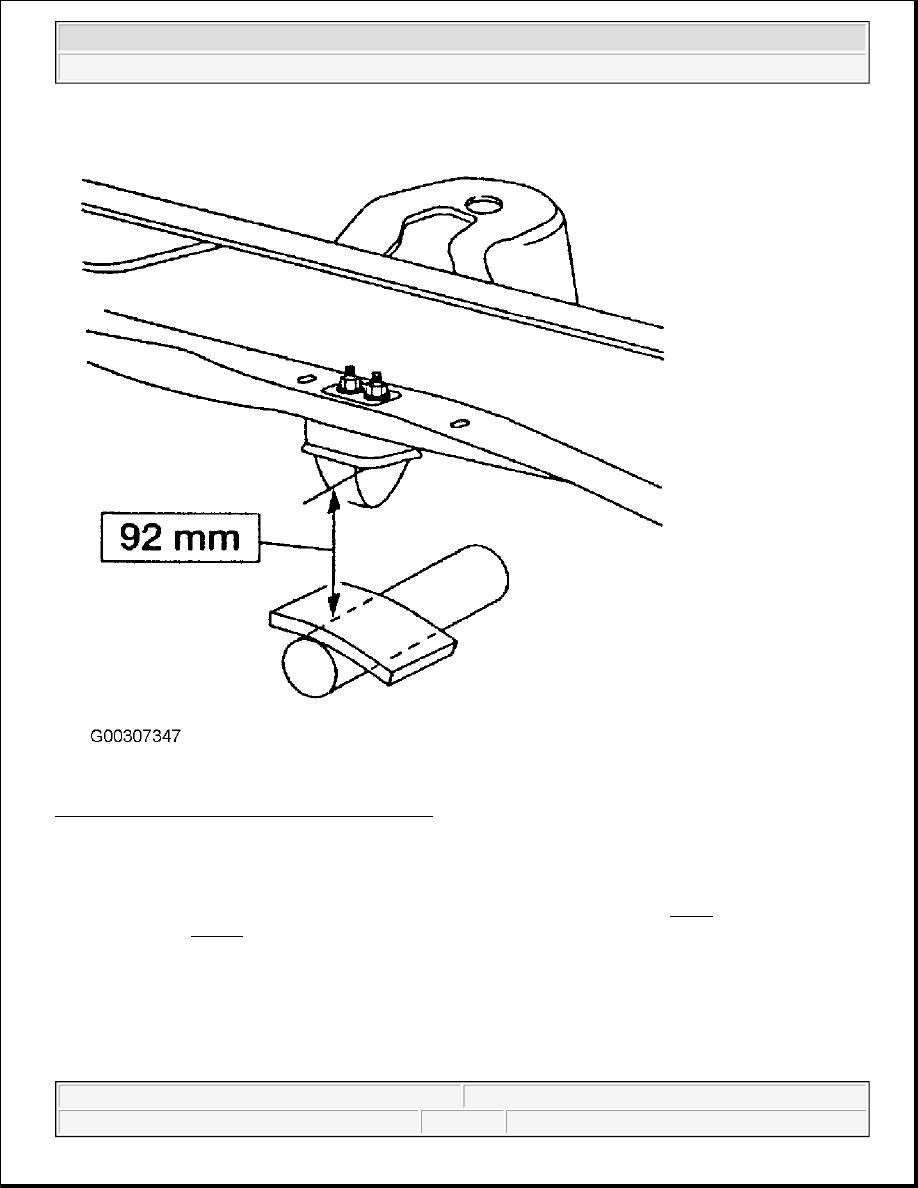

Fig. 8: Measuring Rear Ride Height (Blackwood)
Courtesy of FORD MOTOR CO.

Front (F150 Pickup)

To measure front ride height, subtract measurement "B" from measurement "A". See Fig. 9 . For ride height
specifications, see Fig. 10 .



2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup



Fig. 9: Front Riding Height Measuring Points (F150 Pickup)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-03 WHEEL ALIGNMENT Specifications & Procedures - Blackwood & F150 Pickup



Fig. 10: Ride Height Specifications (F150 Pickup)
