Ford F150 Pickup. Instruction - part 1670

Fig. 36: Installing Floor Duct Panel
Courtesy of FORD MOTOR CO.

Vehicles equipped with floor console

10. Install the floor console. Refer to CONSOLE -- FLOOR .

All vehicles

11. Connect the battery ground cable.

VACUUM CONTROL MOTOR - PANEL/FLOOR DOOR

Removal

1. Remove the floor duct. Refer to FLOOR DUCT .

2. Remove the panel/floor door vacuum control motor.

NOTE:

Rotate the vacuum control motor to disconnect the vacuum control motor
rod from the panel/floor door.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



1. Disconnect the vacuum line connector.

2. Remove the vacuum control motor screws.

3. Slide the rod out of the door and remove the panel/floor door vacuum control motor.

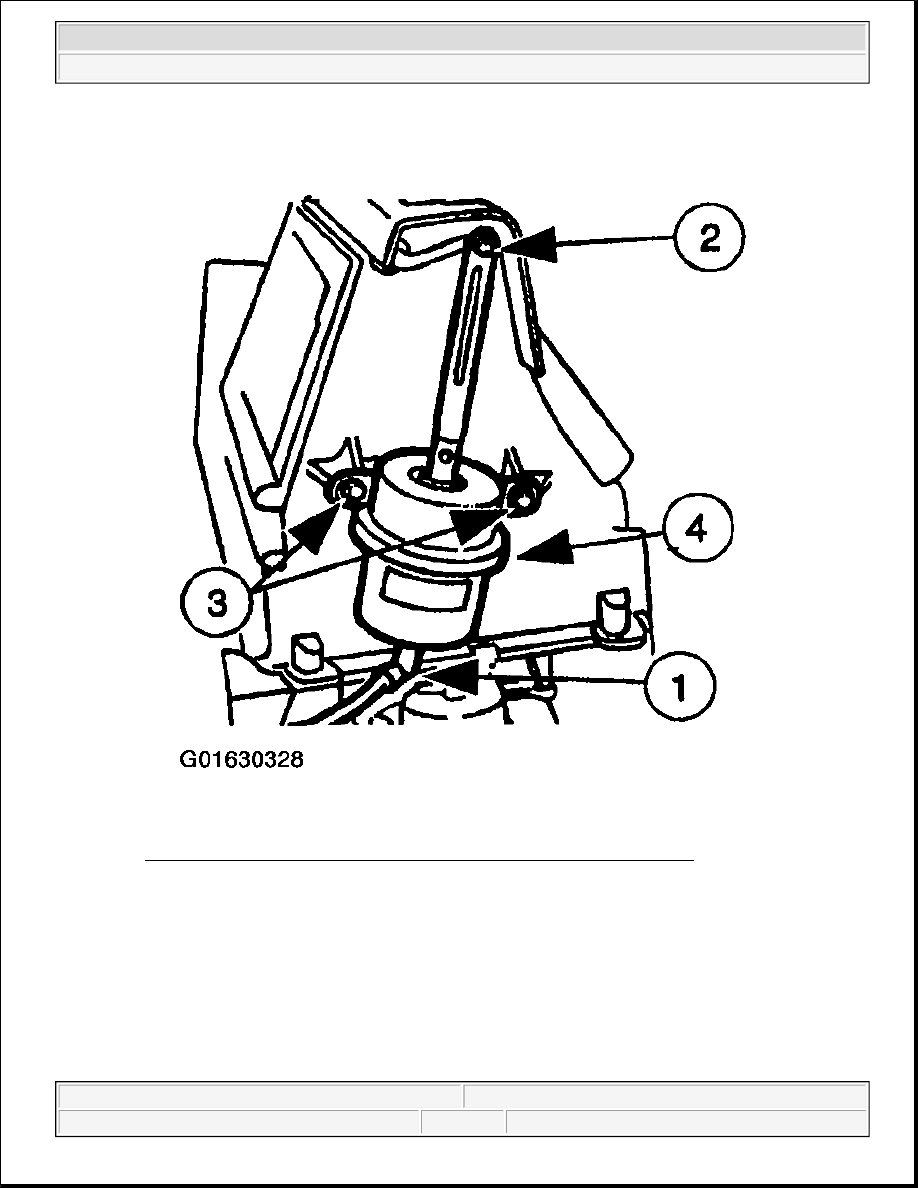

Fig. 37: View Of Removing Panel/Floor Door Vacuum Control Motor
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

VACUUM CONTROL MOTOR - PANEL/DEFROST DOOR

Removal

1. Remove the panel/defrost door vacuum control motor (18A318).

1. Disconnect the vacuum line.

2. Remove the push nut.

3. Remove the screws.

4. Remove the panel/defrost door vacuum control motor.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 38: View Of Removing Panel/Defrost Door Vacuum Control Motor
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

AMBIENT AIR TEMPERATURE SENSOR

Removal and Installation

1. Remove the pin-type retainers and remove the radiator sight shield.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 39: Identifying Pin-Type Retainers
Courtesy of FORD MOTOR CO.

2. Disconnect the connector.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup
