Fig. 28: Removing Electronic Blend Door Actuator
Courtesy of FORD MOTOR CO.

Installation

All vehicles

1. Install the electronic blend door actuator.

1. Connect the actuator shaft.

2. Install the screws.

3. Connect the connector.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



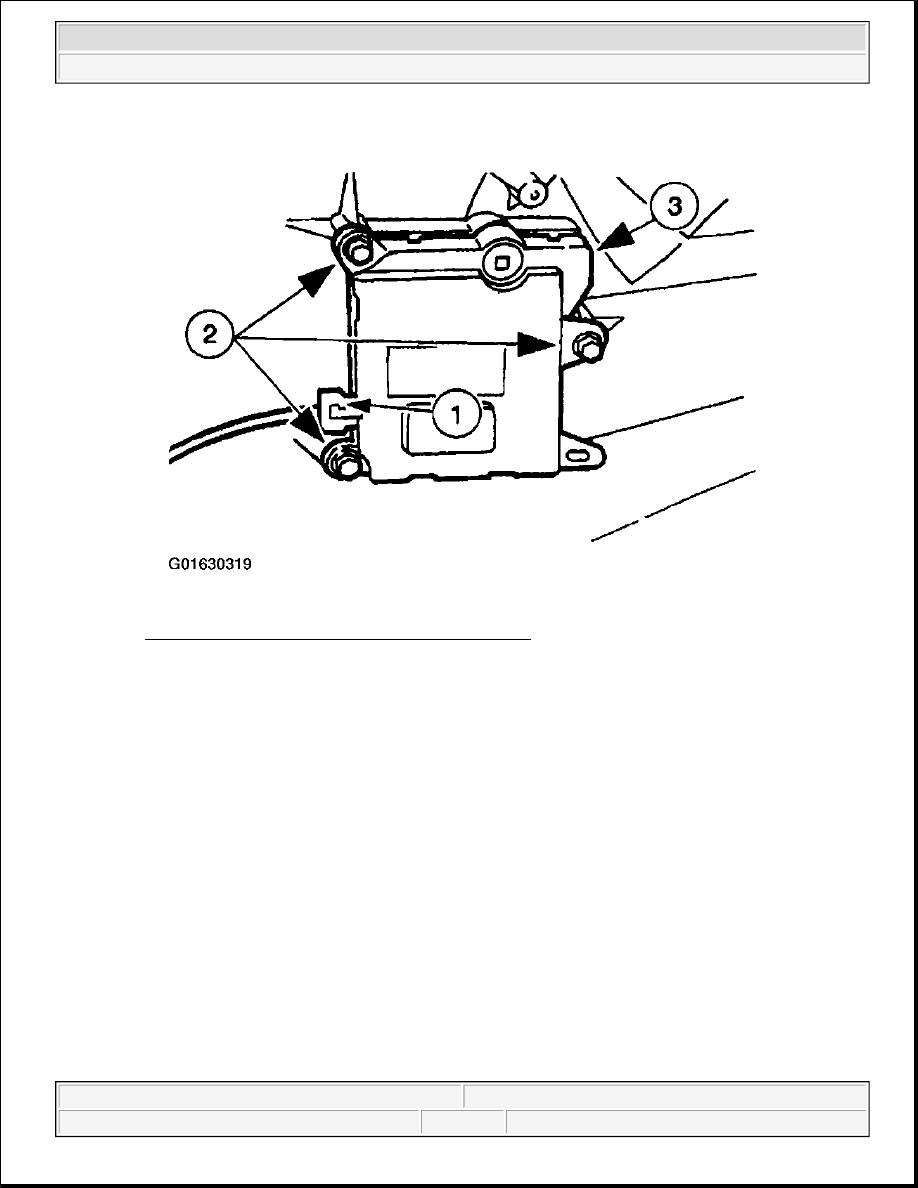

Fig. 29: Installing Electronic Blend Door Actuator
Courtesy of FORD MOTOR CO.

2. Install the floor duct.

1. Install the floor duct.

2. Install the two screws (one each side).



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

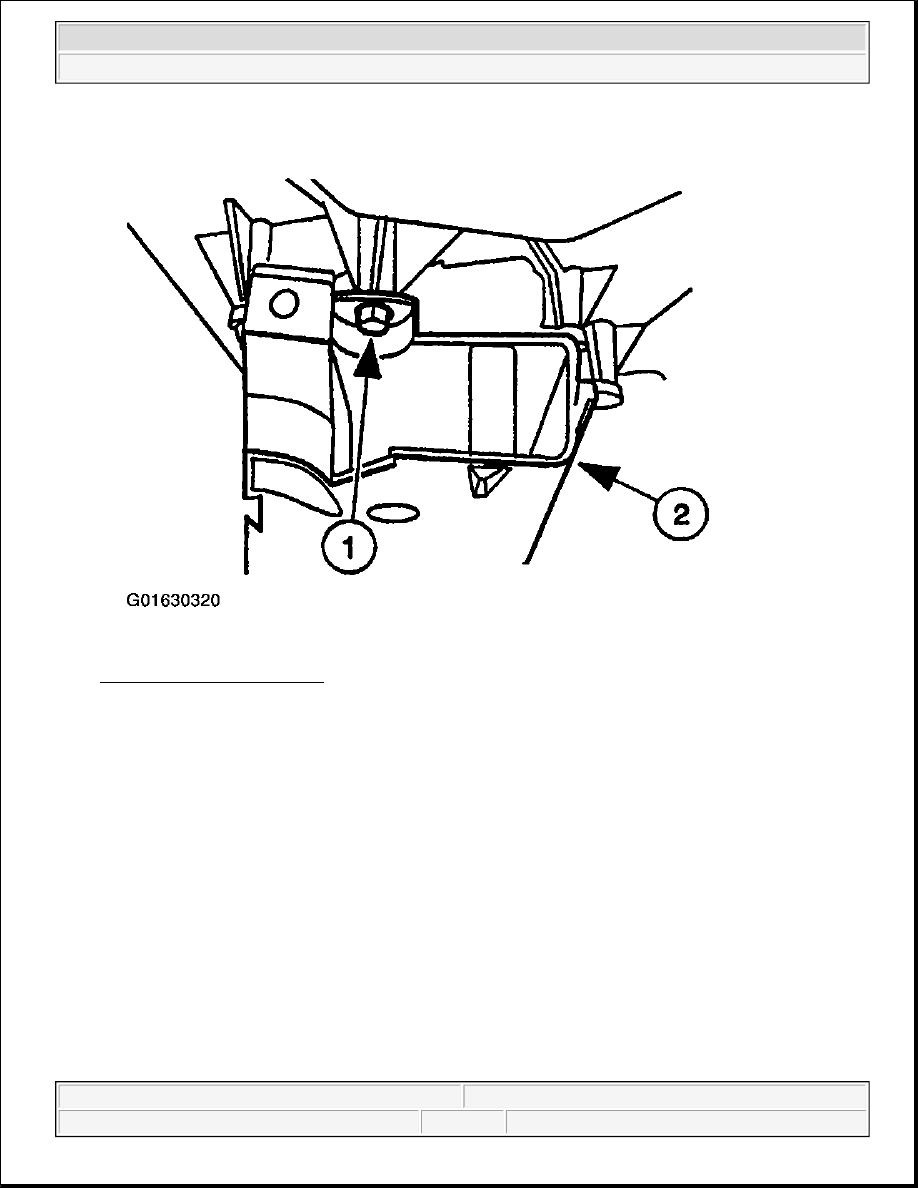

Fig. 30: Installing Floor Duct
Courtesy of FORD MOTOR CO.

Vehicles equipped with rear airflow duct

3. Zip-tie the rear airflow duct to floor duct.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 31: Locating Zip-Tie
Courtesy of FORD MOTOR CO.

4. Reposition the carpet.

All vehicles

5. Install the RCM and bracket assembly.

WARNING:

The tightening torque of the restraints control module (RCM)
retaining bolts is critical for correct system operation.
