Fig. 24: Removing RCM And Bracket Assembly
Courtesy of FORD MOTOR CO.

Vehicles equipped with rear airflow duct

8. Cut the rear seat airflow duct along both sides.

z

Fold back carpet.

z

Cut rear seat airflow duct.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 25: Identifying Position For Cutting Rear Seat Airflow Duct
Courtesy of FORD MOTOR CO.

9. Fold the air duct rearwards.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 26: Folding Air Duct Rearwards
Courtesy of FORD MOTOR CO.

All vehicles

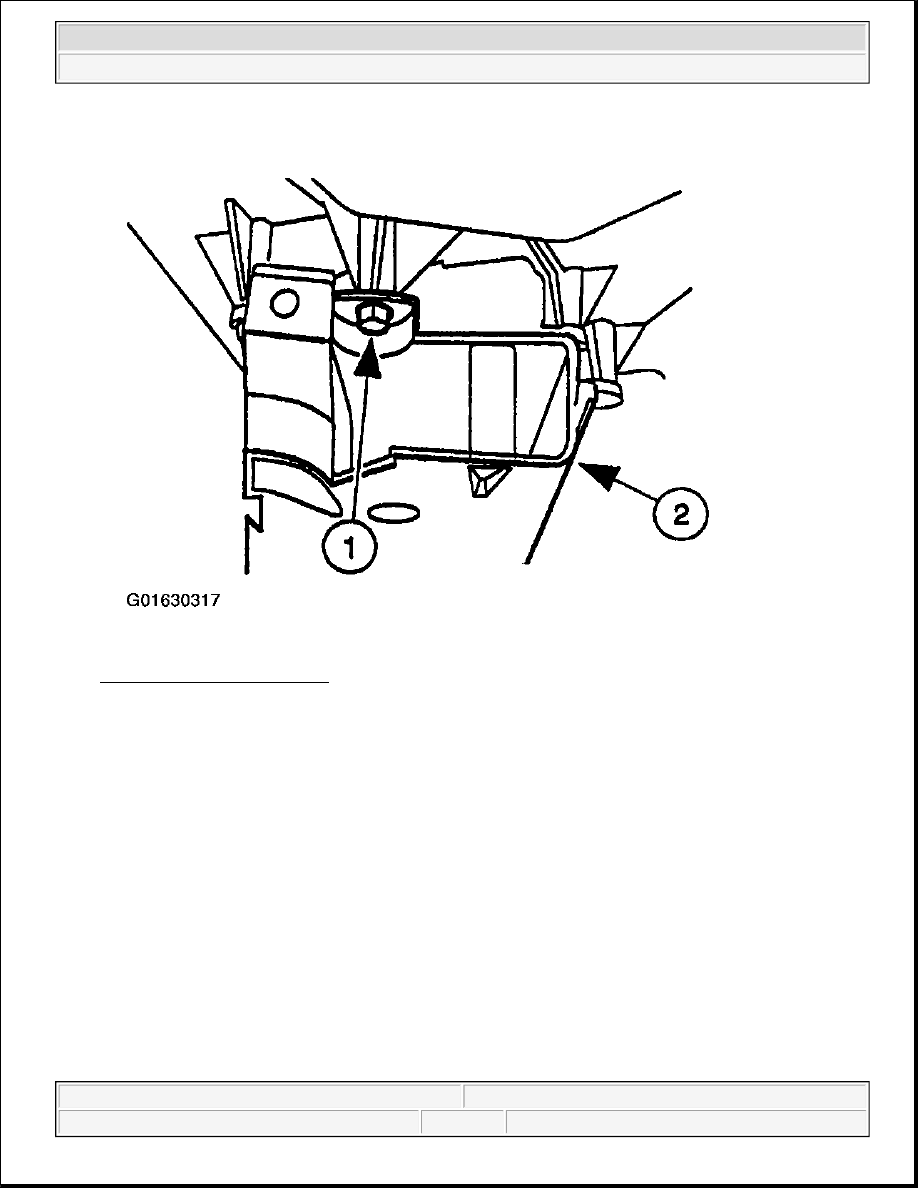

10. Remove the floor duct.

1. Remove the two screws (one each side).

2. Remove the floor duct.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 27: Removing Floor Duct
Courtesy of FORD MOTOR CO.

11. Remove the electronic blend door actuator.

1. Disconnect the connector.

2. Remove the screws.

3. Pull down to release the actuator shaft and remove the electronic blend door actuator.
