Ford F150 Pickup. Instruction - part 1665

Fig. 16: Identifying Electrical And Vacuum Line Connector
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

SWITCHES

Removal and Installation

1. Remove the climate control assembly. Refer to CLIMATE CONTROL ASSEMBLY - Instruction A/C .

NOTE:

The knob will drop off as the function selector is removed.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



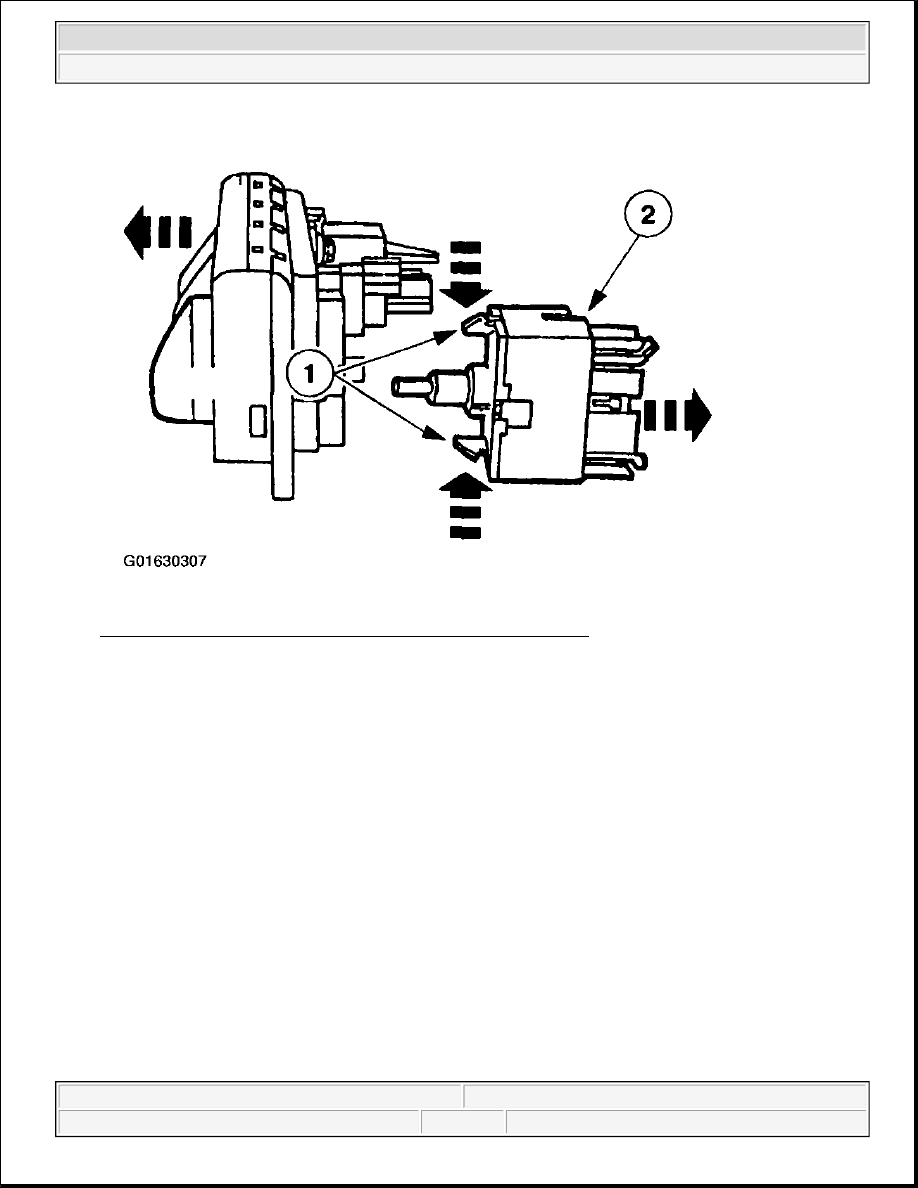

Fig. 17: Identifying Snap Tabs For Removing Function Selector
Courtesy of FORD MOTOR CO.

2. Remove the function selector.

1. Depress the snap tabs.

2. Remove the function selector.

NOTE:

The knob will drop off as the temperature blend control switch is removed.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

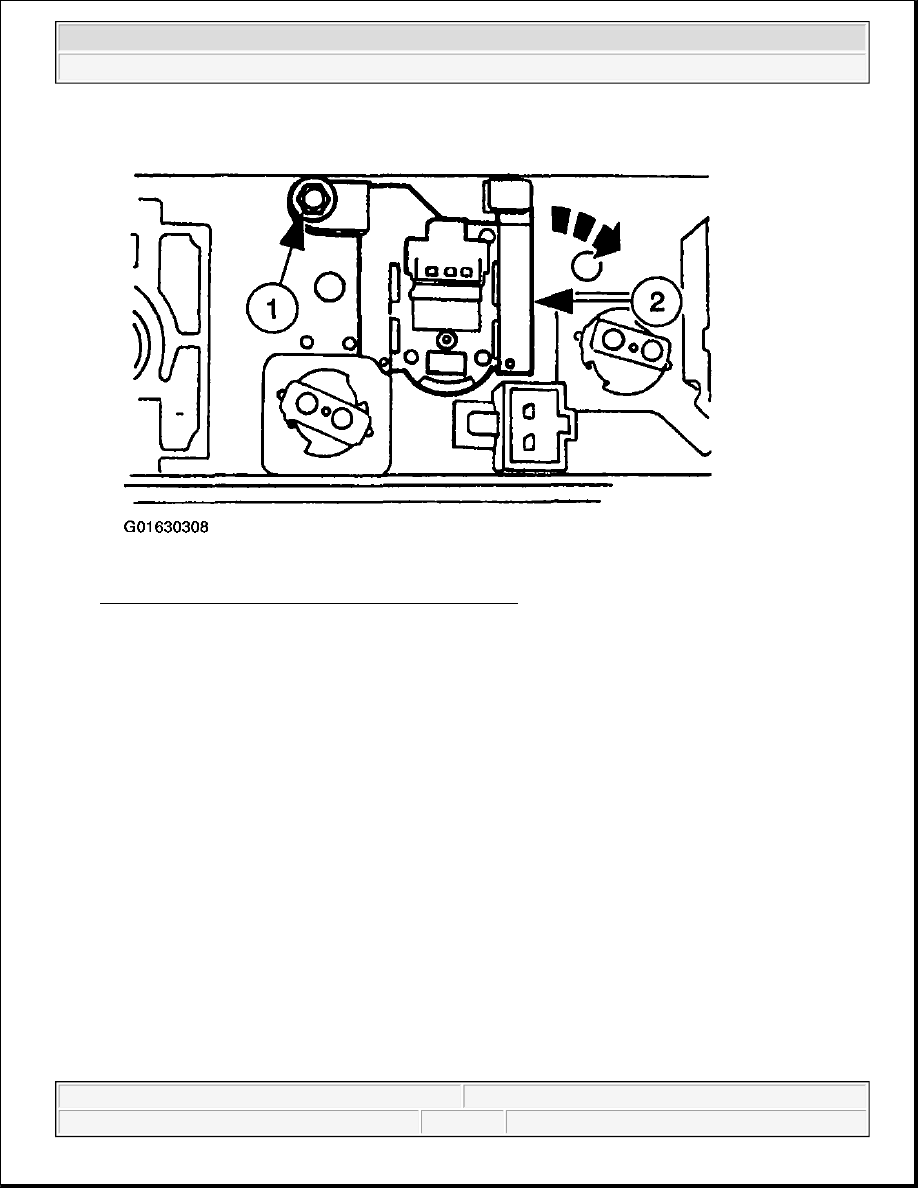

Fig. 18: Removing Temperature Blend Control Switch
Courtesy of FORD MOTOR CO.

3. Remove the temperature blend control switch.

1. Remove the screw.

2. Rotate and pull the temperature blend control switch.

NOTE:

The knob will drop off as the blower motor switch is removed.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 19: Removing Blower Motor Switch
Courtesy of FORD MOTOR CO.

4. Remove the blower motor switch.

1. Depress the snap tabs.

2. Remove the blower motor switch.

5. To install, reverse the removal procedure.

TEMPERATURE BLEND DOOR ACTUATOR

Removal

All vehicles

WARNING:

To avoid accidental deployment and possible personal injury, the
