Ford F150 Pickup. Instruction - part 1664

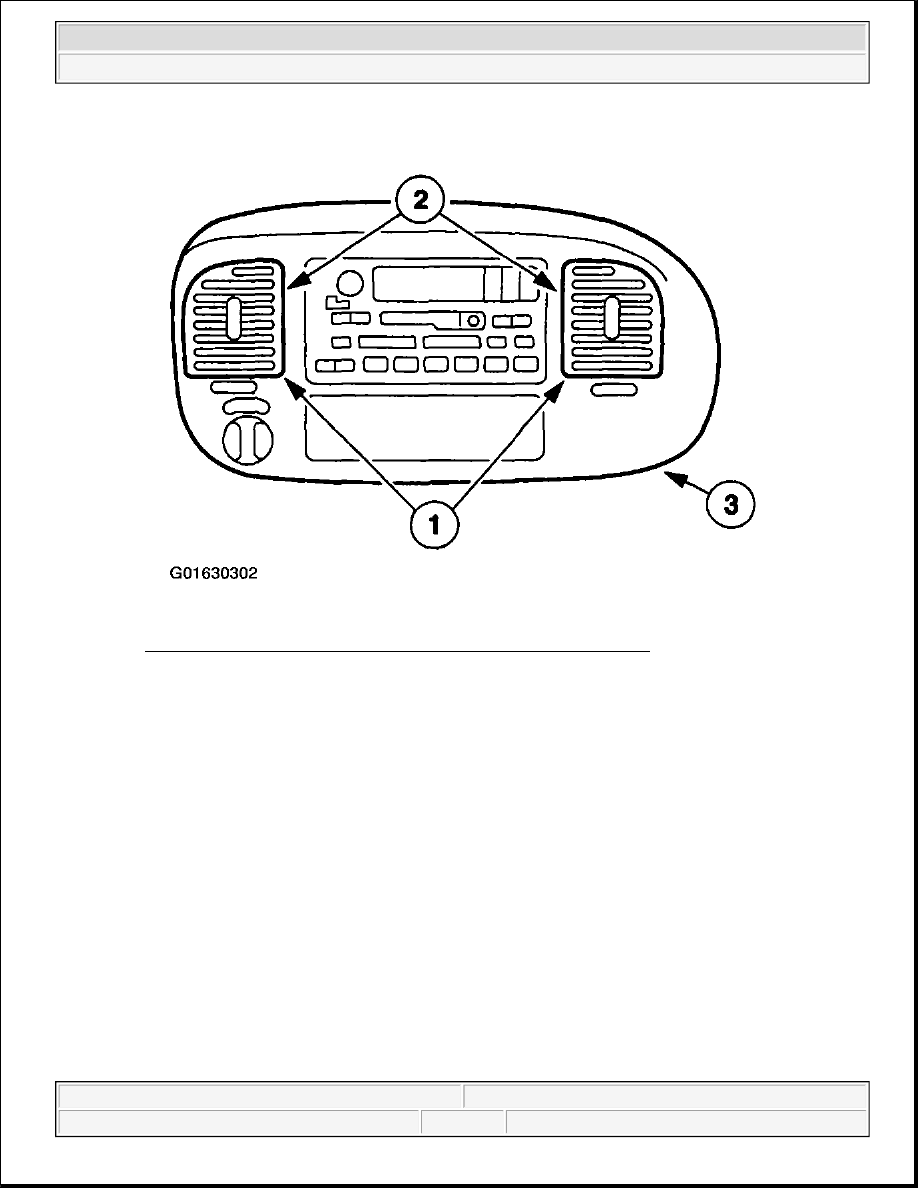

Fig. 12: View Of Detaching Center Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.

3. Disconnect the passenger air bag deactivation (PAD) switch electrical connector.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 13: Disconnecting (PAD) Switch Electrical Connector
Courtesy of FORD MOTOR CO.

4. If equipped, disconnect the 4WD control switch connector. Remove the center instrument panel finish

panel.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 14: Disconnecting 4WD Control Switch Connector
Courtesy of FORD MOTOR CO.

5. Remove the climate control assembly.

1. Remove the screws.

2. Pull out the climate control assembly.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 15: Removing Climate Control Assembly
Courtesy of FORD MOTOR CO.

6. Disconnect the climate control assembly.

1. Disconnect the electrical connectors.

2. Disconnect the vacuum line connector.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup
