Fig. 32: Installing RCM And Bracket Assembly
Courtesy of FORD MOTOR CO.

6. Connect the restraints control module (RCM) electrical connector.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 33: Connecting (RCM) Electrical Connector
Courtesy of FORD MOTOR CO.

7. Install the LH instrument panel lower nut.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 34: Installing LH Instrument Panel Lower Nut
Courtesy of FORD MOTOR CO.

8. Install the RH instrument panel brace.

z

Install the brace.

z

Install the nut.

z

Install the bolt.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



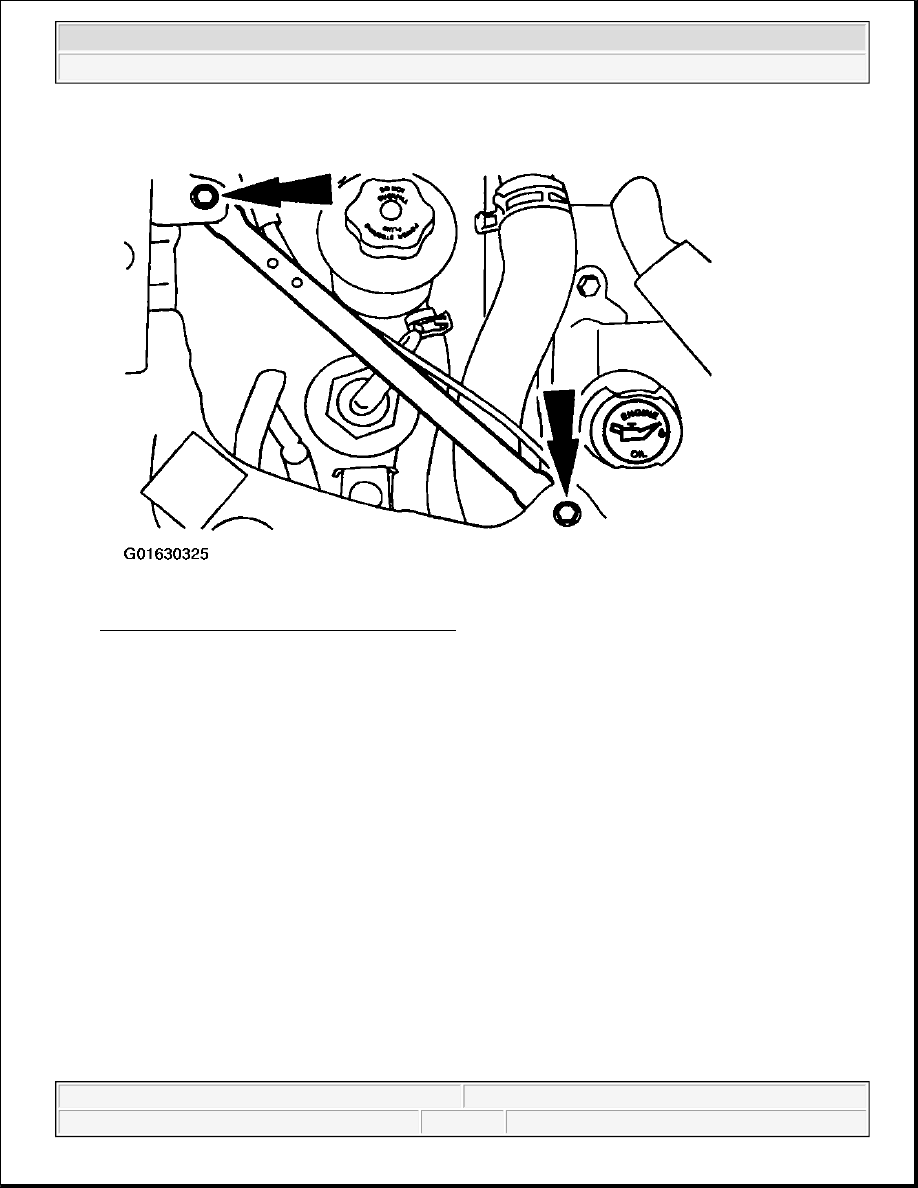

Fig. 35: Installing RH Instrument Panel Brace
Courtesy of FORD MOTOR CO.

9. Install the floor duct panel.

z

Install the pin-type retainers and release the expander clip.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup
