Fig. 40: Identifying Connector
Courtesy of FORD MOTOR CO.

3. Remove the bolt and remove the ambient air temperature sensor panel.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 41: Removing Ambient Air Temperature Sensor Panel
Courtesy of FORD MOTOR CO.

4. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup

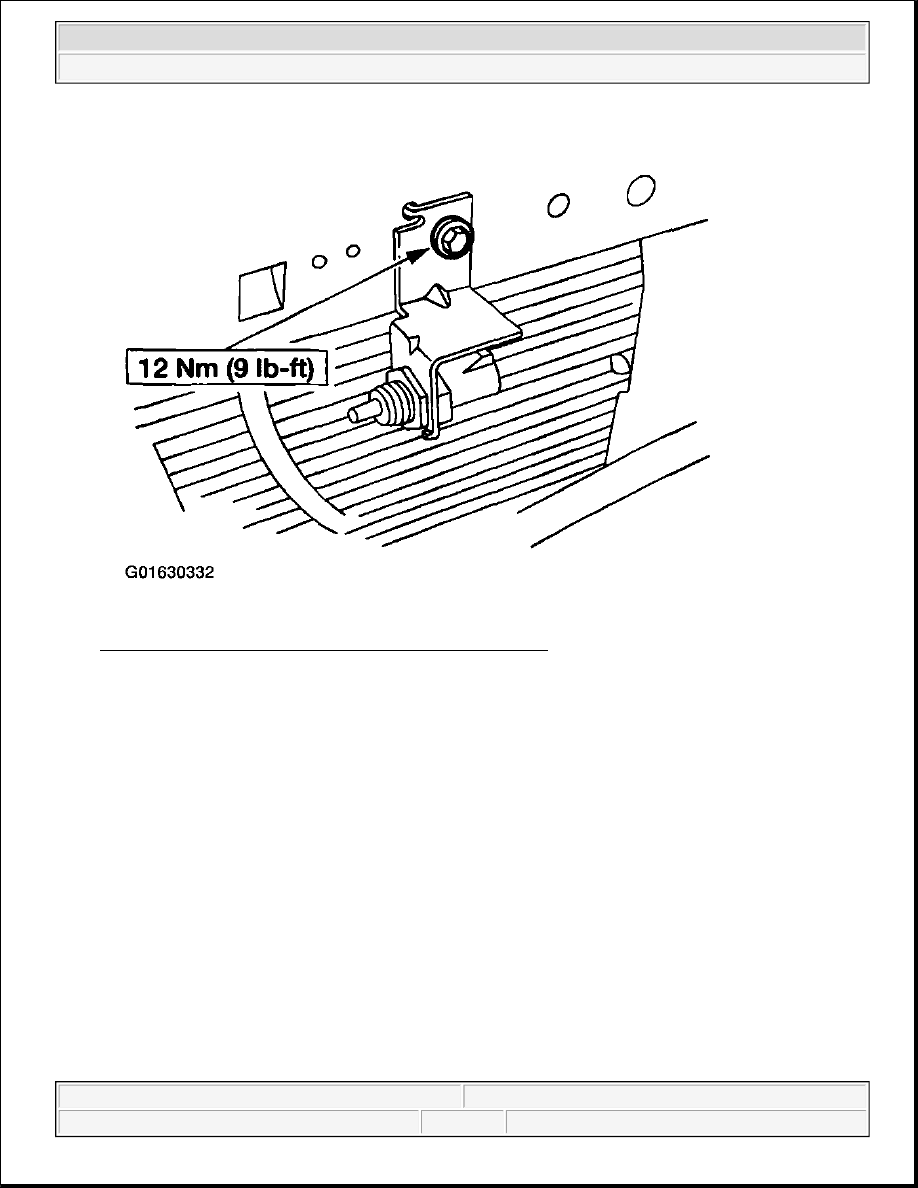

Fig. 42: Installing Ambient Air Temperature Sensor Panel
Courtesy of FORD MOTOR CO.

IN-VEHICLE TEMPERATURE SENSOR

Removal

1. Remove the center instrument panel finish panel.

z

Carefully pry to release the four clips.



2003 Ford Pickup F150

2003 HVAC Control Components - F150 Pickup



Fig. 43: Removing Center Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.

2. If equipped, disconnect the 4WD control switch connector.
