Ford F150 Pickup. Instruction - part 140

Fig. 115: Disconnecting Two Exterior Rear Door Handle Rods
Courtesy of FORD MOTOR CO.

5. Remove the exterior rear door handle.

1. Drill out the rivets.

2. Position the exterior rear door handle for access.

3. Remove the exterior rear door handle.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

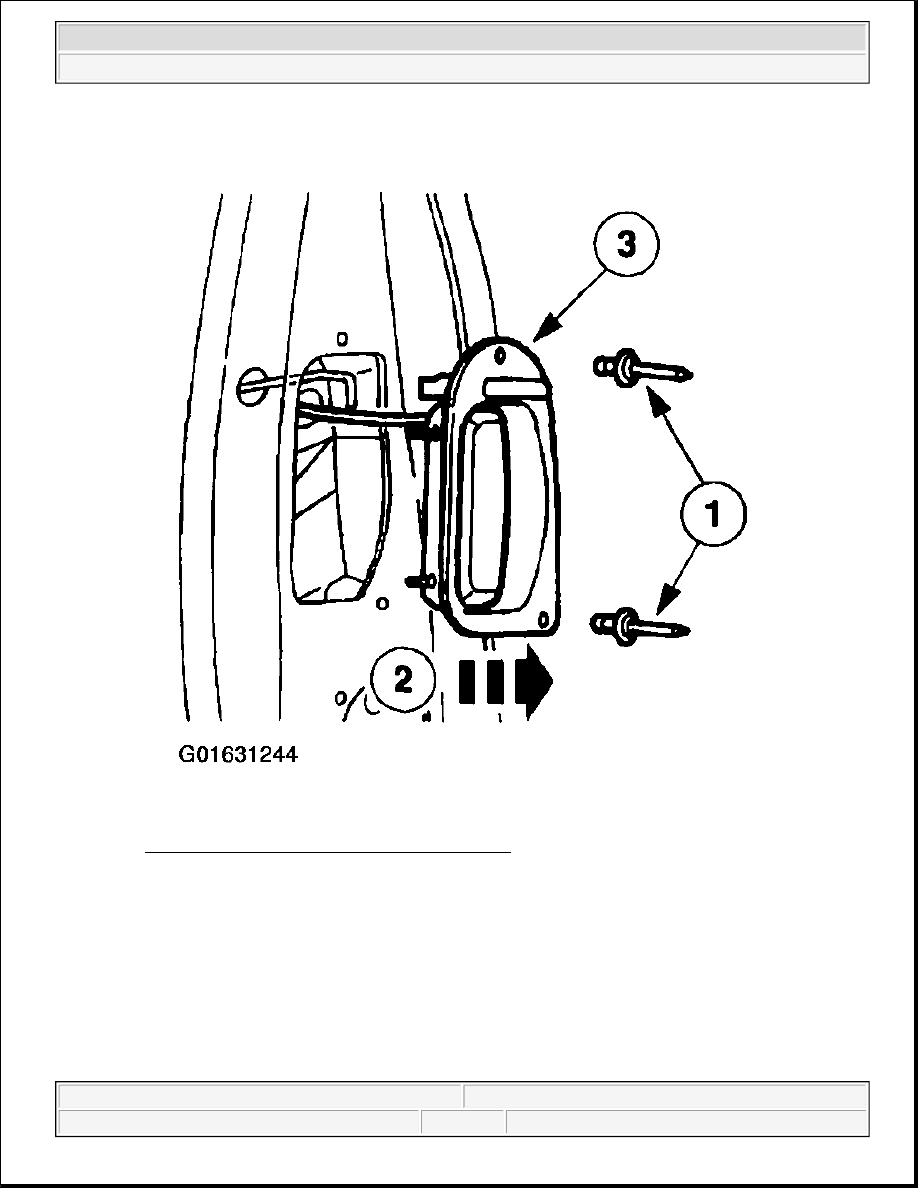

Fig. 116: Removing Exterior Rear Door Handle
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

z

Using Heavy Duty Riveter, install the new rivets.

NOTE:

Make sure the rear door handle rods are not Preloading the rear door latch
remote control. They should be clipped in a relaxed state with no slack.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 117: Installing New Rivets
Courtesy of FORD MOTOR CO.

EXTERIOR REAR DOOR HANDLE - SUPERCREW

Removal and Installation

1. Raise the rear door window to the closed position.

2. Disconnect the battery ground cable.

3. Remove the rear door trim panel. Refer to TRIM PANEL -- REAR DOOR .

4. Remove the bolts and the rear door brace.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 118: Removing Bolts And Rear Door Brace
Courtesy of FORD MOTOR CO.

5. Position the watershield aside.

6. Remove the exterior rear door handle.

1. Remove the nuts.

2. Release the clip and disconnect the exterior rear door handle actuating rod.

3. Remove the exterior rear door handle by pushing outward from the bottom.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup
