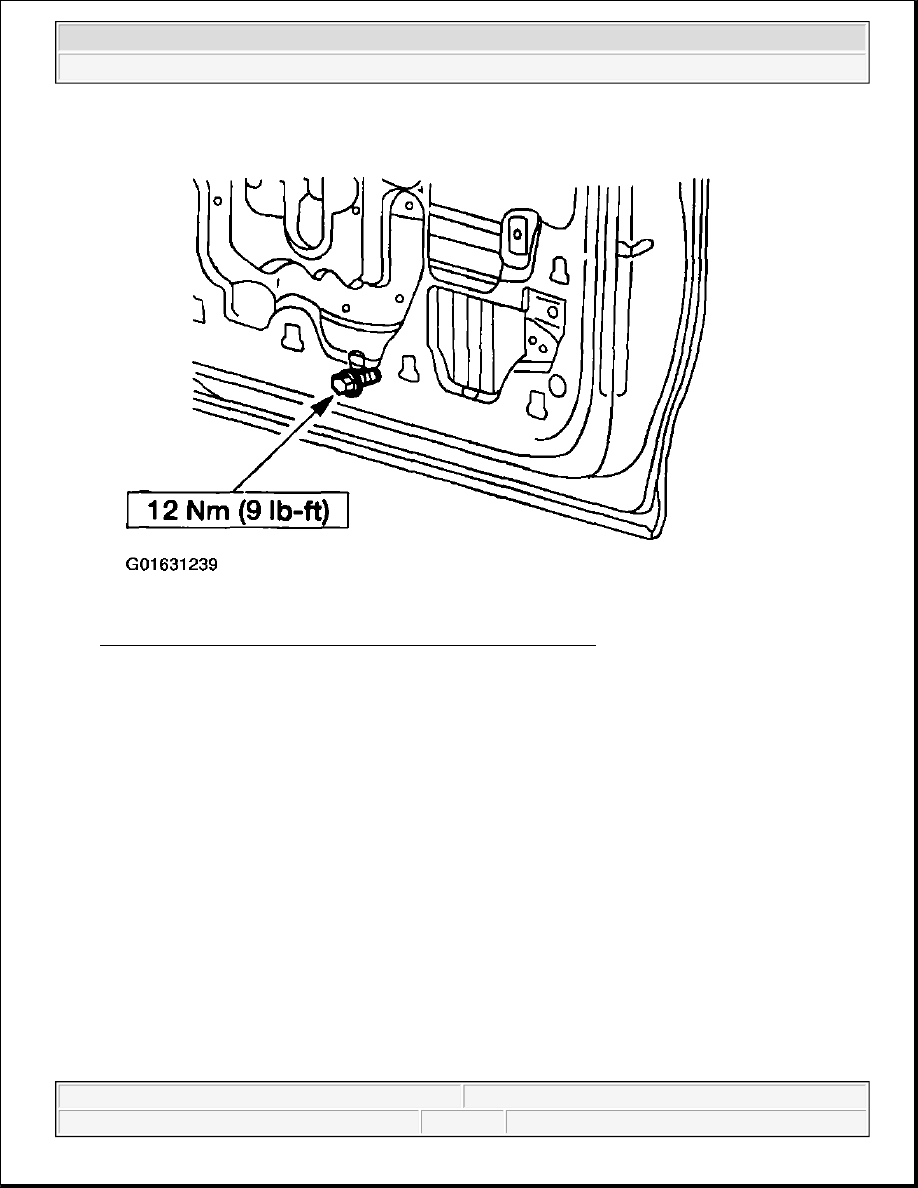

Fig. 111: Installing Bolt And Position Door Glass Top Run Aside
Courtesy of FORD MOTOR CO.

1. To install, reverse the removal procedure.

EXTERIOR REAR DOOR HANDLE - F-150

Special Tool(s)



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 112: Identifying Special Tool(s)
Courtesy of FORD MOTOR CO.

Removal

1. Remove the rear door trim panel. Refer to TRIM PANEL -- REAR DOOR .

2. Remove the rear door radio speaker (18808).

1. Remove the screws.

2. Disconnect the electrical connector.

3. Remove the rear door radio speaker.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 113: Removing Rear Door Radio Speaker
Courtesy of FORD MOTOR CO.

3. Remove the watershield.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 114: Removing Watershield
Courtesy of FORD MOTOR CO.

4. Disconnect the two exterior rear door handle rods from the rear door latch remote control.
