4. Remove the bolts and the front door brace.

Fig. 107: Removing Bolts And Front Door Brace
Courtesy of FORD MOTOR CO.

All Vehicles

5. Position the watershield aside.

6. Remove the bolt and position the door glass top run aside.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 108: Removing Bolt And Position Door Glass Top Run Aside
Courtesy of FORD MOTOR CO.

7. Remove the exterior front door handle.

1. Remove the nuts.

2. If equipped disconnect the actuating rod from the lock cylinder.

3. Release the clip and remove the exterior front door handle rod.

4. Remove the exterior front door handle by pushing outward from the bottom.

z

If equipped disconnect the electrical connector(s).



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

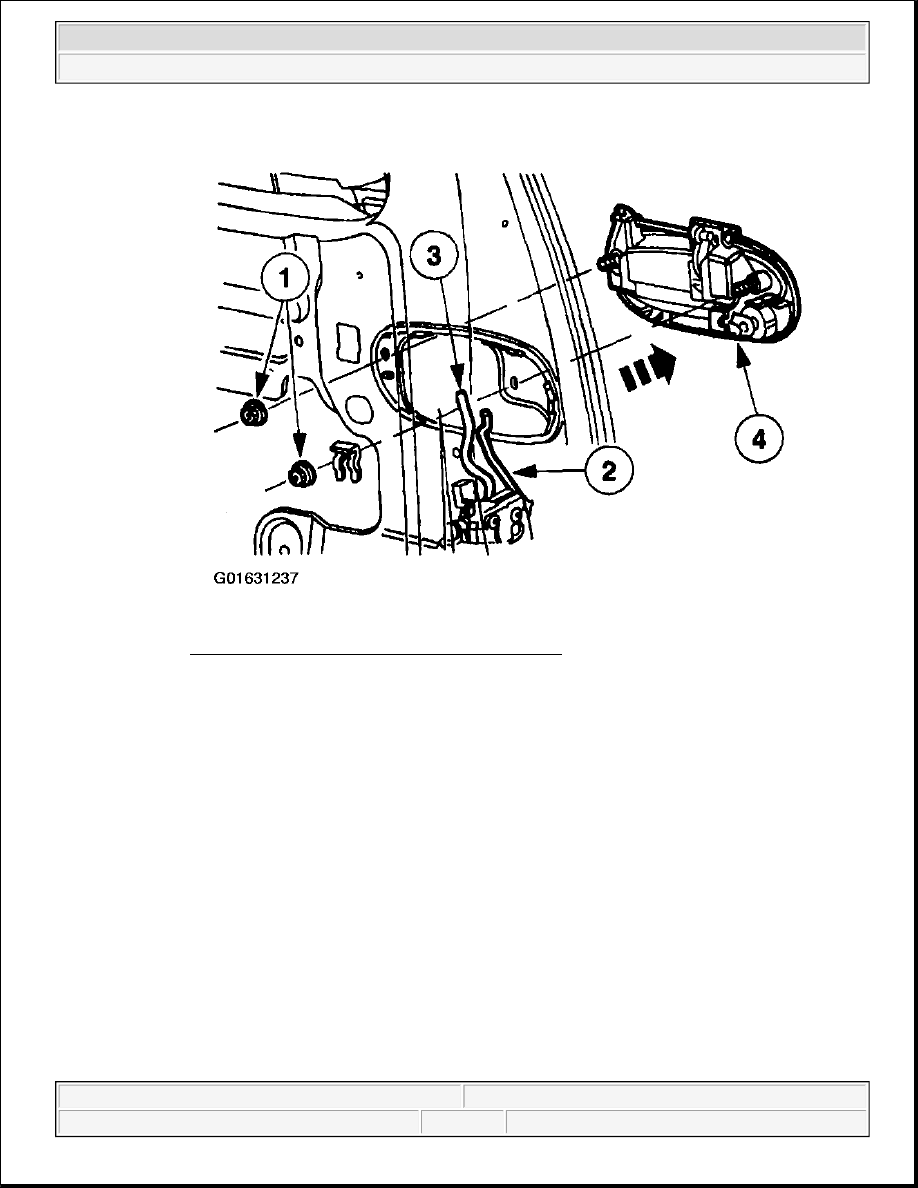

Fig. 109: Removing Exterior Front Door Handle
Courtesy of FORD MOTOR CO.

Installation

NOTE:

Make sure the door handle release rod is not Preloading the latch. It
should be clipped in a relaxed state with no slack.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 110: Installing Exterior Front Door Handle
Courtesy of FORD MOTOR CO.
