Ford F150 Pickup. Instruction - part 136

Fig. 99: Removing Tailgate Access Panel
Courtesy of FORD MOTOR CO.

3. Disconnect the tailgate latch rod.

1. Open the clip.

2. Disconnect the rod.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 100: Disconnecting Tailgate Latch Rod
Courtesy of FORD MOTOR CO.

4. Remove the tailgate latch (RH shown, LH similar).

1. Remove the two screws.

2. Remove the tailgate latch.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 101: Removing Tailgate Latch
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.

z

If necessary, use Multi-Purpose Grease Spray F5AZ-19G209-AA or equivalent meeting Ford
specification ESR-M1C159-A to lubricate the latches.

NOTE:

Make sure the latch release rods are not Preloading the latches. They
should be clipped in a relaxed state with no slack.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

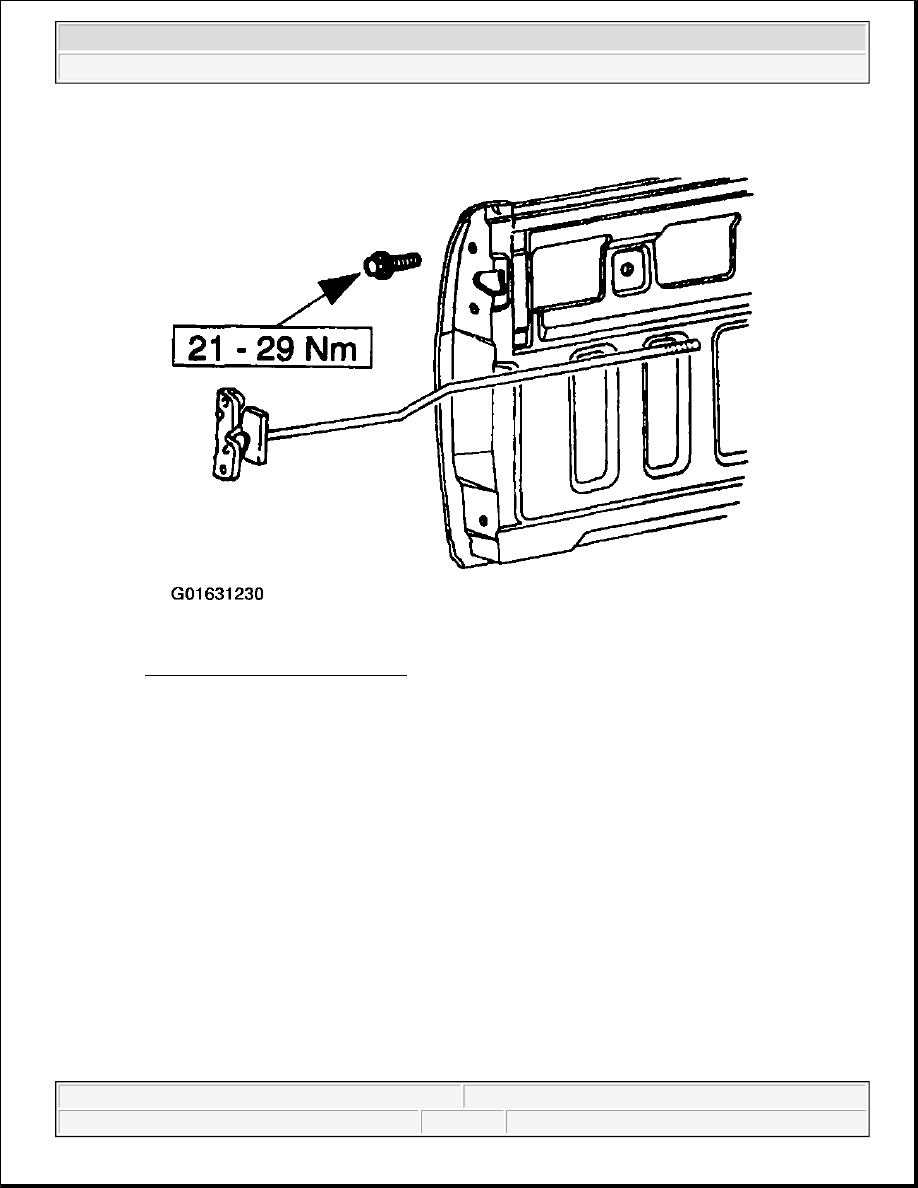

Fig. 102: Installing Tailgate Latch
Courtesy of FORD MOTOR CO.
