Ford F150 Pickup. Instruction - part 134

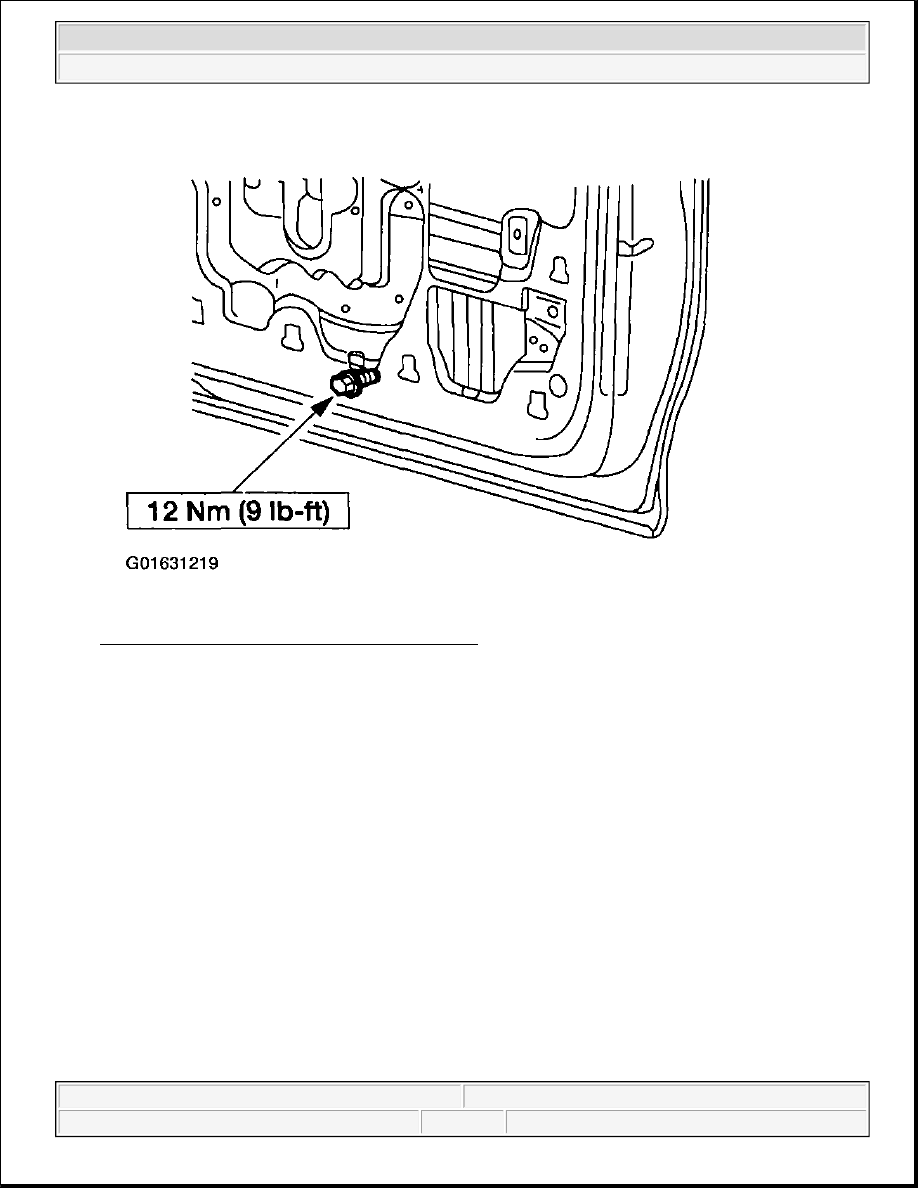

Fig. 91: Removing Bolt And Door Glass Top Run
Courtesy of FORD MOTOR CO.

7. Disconnect the door lock actuator electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

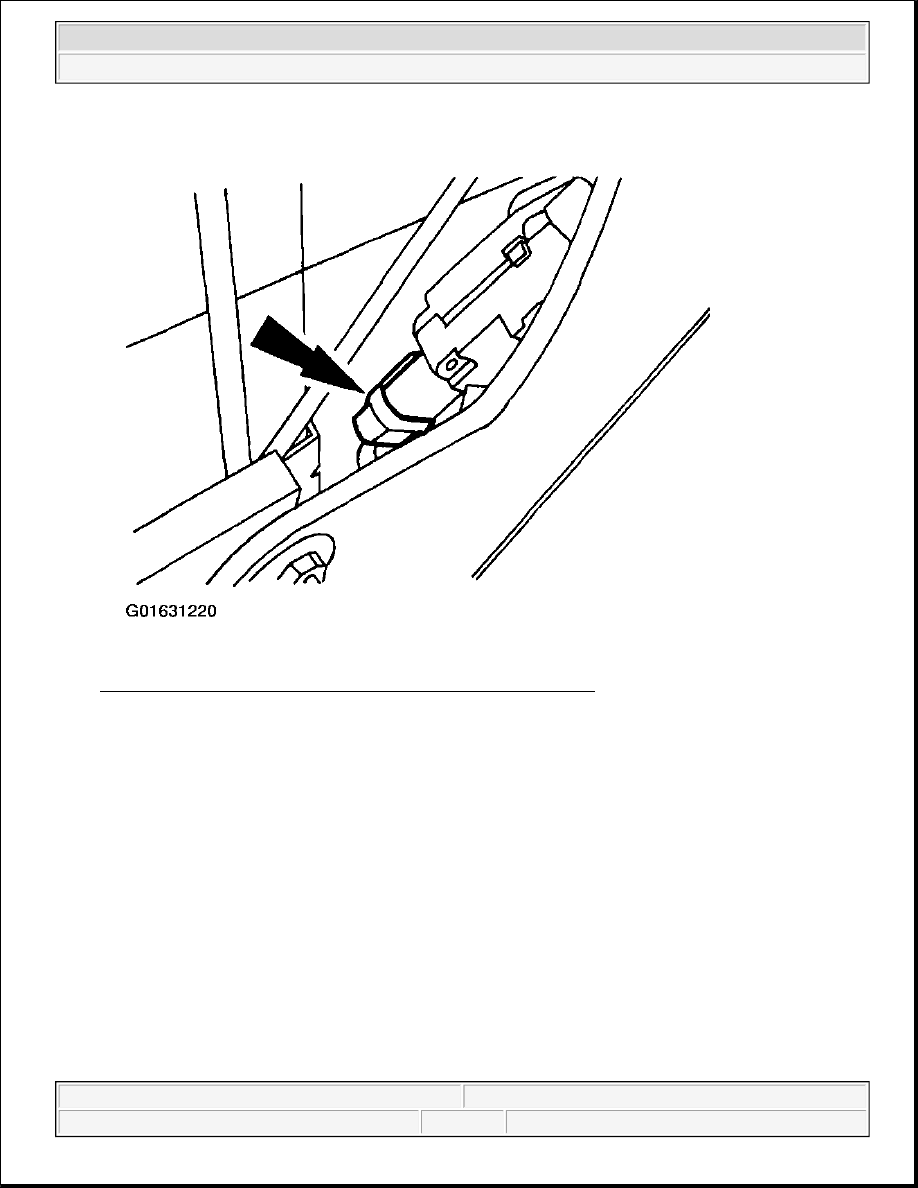

Fig. 92: Disconnecting Door Lock Actuator Electrical Connector
Courtesy of FORD MOTOR CO.

8. Remove the door lock actuator rivet.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 93: Removing Door Lock Actuator Rivet
Courtesy of FORD MOTOR CO.

9. Remove the lock rod bellcrank rivet.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 94: Removing Lock Rod Bellcrank Rivet
Courtesy of FORD MOTOR CO.

10. Disconnect the exterior door handle actuating rod.

1. Open the clip.

2. Disconnect the rod.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup
