Fig. 25: Removing Accelerator Cable From Cable Clip
Courtesy of FORD MOTOR CO.

4. Depress the accelerator cable lock tabs on the inside of the passenger compartment and push the

accelerator cable into the engine compartment.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup

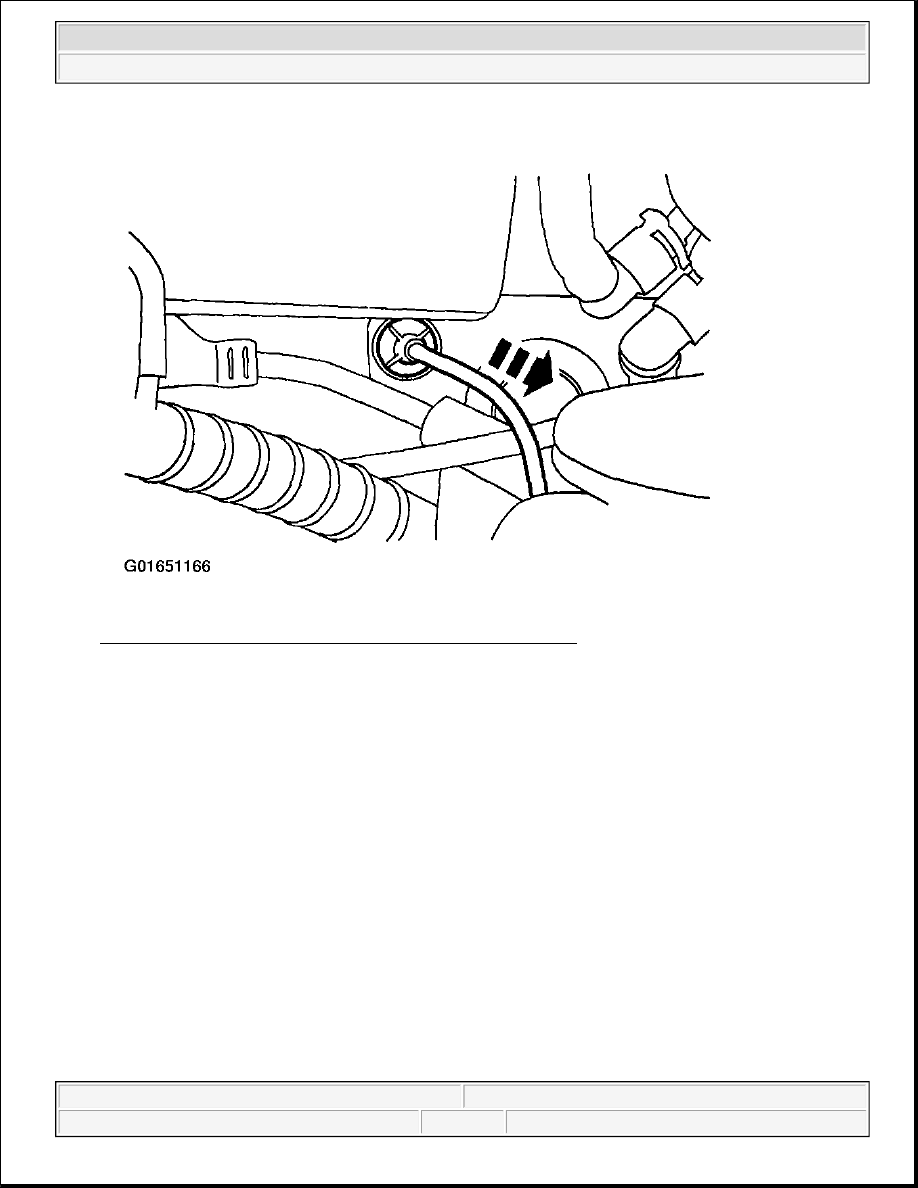

Fig. 26: Pushing Accelerator Cable Into Engine Compartment
Courtesy of FORD MOTOR CO.

5. Disconnect the accelerator cable from the throttle lever.

1. Rotate the throttle lever forward.

2. Slide the accelerator cable end from the throttle lever.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup



Fig. 27: Rotating Throttle Lever Forward
Courtesy of FORD MOTOR CO.

6. Depress the accelerator cable lock tabs and remove the accelerator cable from the accelerator cable

bracket. Remove the accelerator cable.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup



Fig. 28: Depressing Accelerator Cable Lock Tabs
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

ACCELERATOR CABLE - SUPERCHARGED ENGINE

Removal and Installation

1. Disconnect the accelerator cable from the accelerator pedal and shaft.
