Fig. 17: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.

2. Remove the three accelerator control splash shield bolts and remove the splash shield.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup

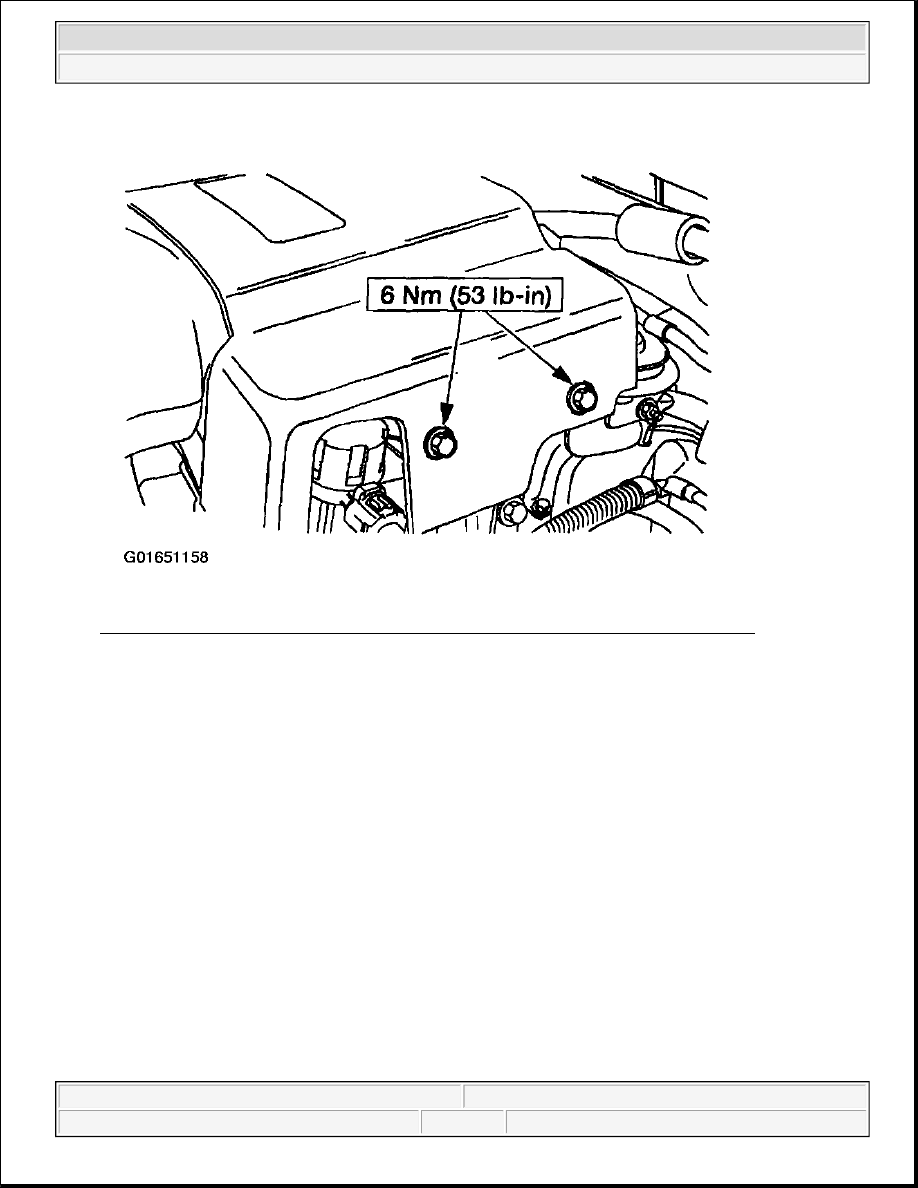

Fig. 18: Identifying Torque Specifications Of Accelerator Control Splash Shield Bolts
Courtesy of FORD MOTOR CO.

3. Disconnect the accelerator cable from the retaining clip.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup



Fig. 19: Disconnecting Accelerator Cable From Retaining Clip
Courtesy of FORD MOTOR CO.

4. Depress the accelerator cable lock tabs on the inside of the passenger compartment and push the

accelerator cable into the engine compartment.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup



Fig. 20: Pushing Accelerator Cable Into Engine Compartment
Courtesy of FORD MOTOR CO.

5. Rotate the throttle lever forward and disconnect the accelerator cable from the throttle body cam.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup
