Fig. 21: Disconnecting Accelerator Cable From Throttle Body Cam
Courtesy of FORD MOTOR CO.

6. Remove the snap-in-end fitting of the accelerator cable from the accelerator cable bracket. Remove the

accelerator cable.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup

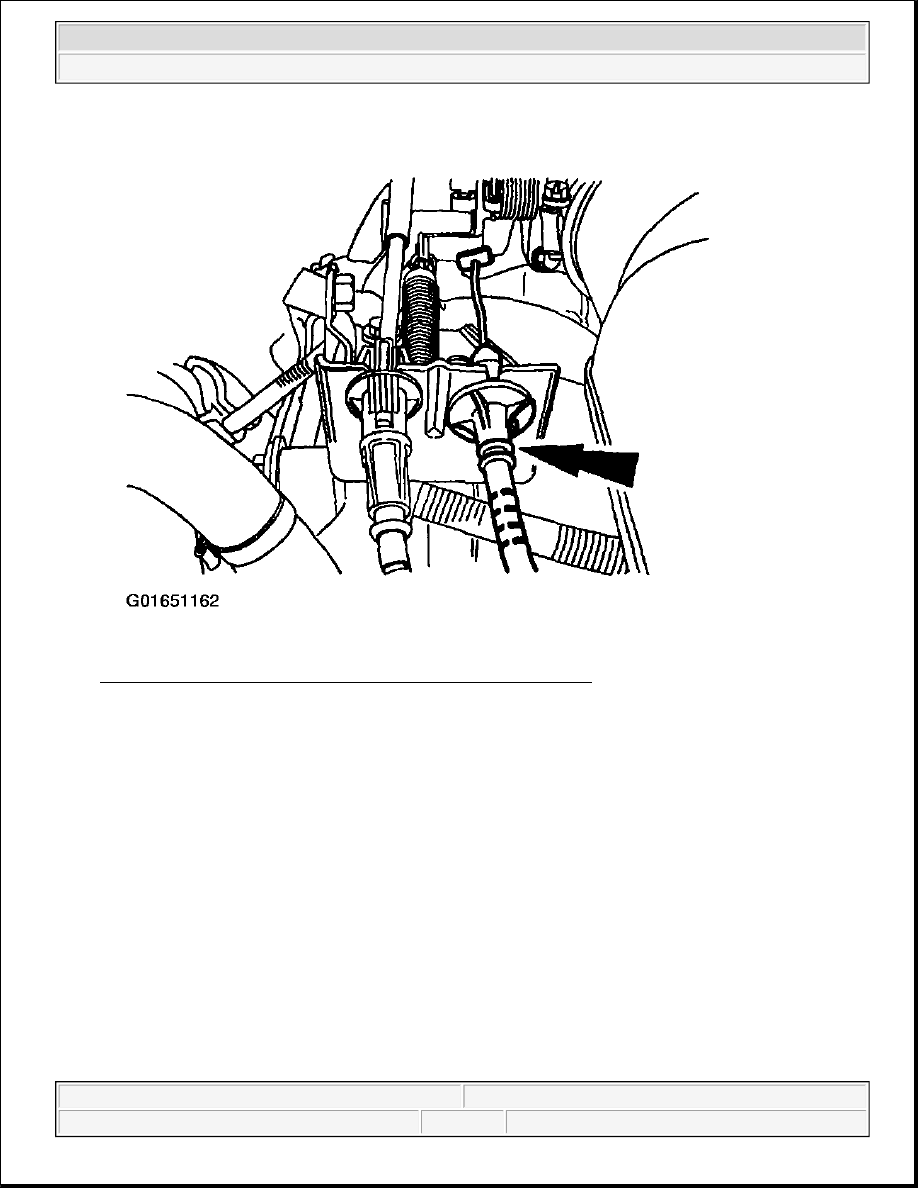

Fig. 22: Locating Snap In End Fitting Of The Accelerator Cable
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

ACCELERATOR CABLE - 5.4L

Removal and Installation

1. Disconnect the accelerator cable from the accelerator pedal and shaft.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup



Fig. 23: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.

2. Remove the three accelerator control splash shield bolts and the splash shield.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup

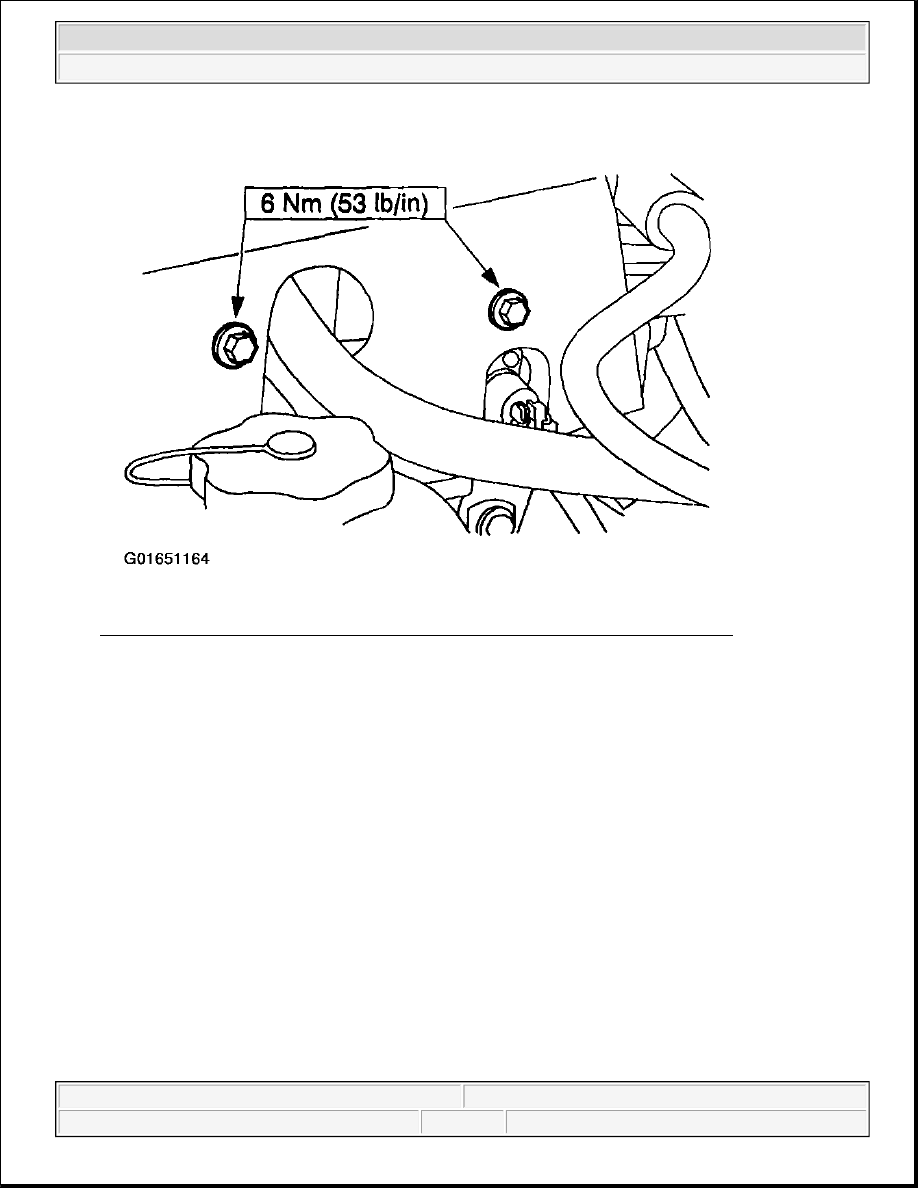

Fig. 24: Identifying Tightening Torque Of Accelerator Control Splash Shield Bolts
Courtesy of FORD MOTOR CO.

3. Remove the accelerator cable from the cable clip.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup
