Fig. 13: Removing Accelerator Cable From Dash Panel
Courtesy of FORD MOTOR CO.

5. Remove the air cleaner outlet tube.

6. Remove the push pin, and pull the splash shield froward off of the throttle body locating stud.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup



Fig. 14: Locating Splash Shield
Courtesy of FORD MOTOR CO.

7. Remove the accelerator cable from the throttle lever.

z

Rotate the throttle lever and unclip the accelerator cable.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup

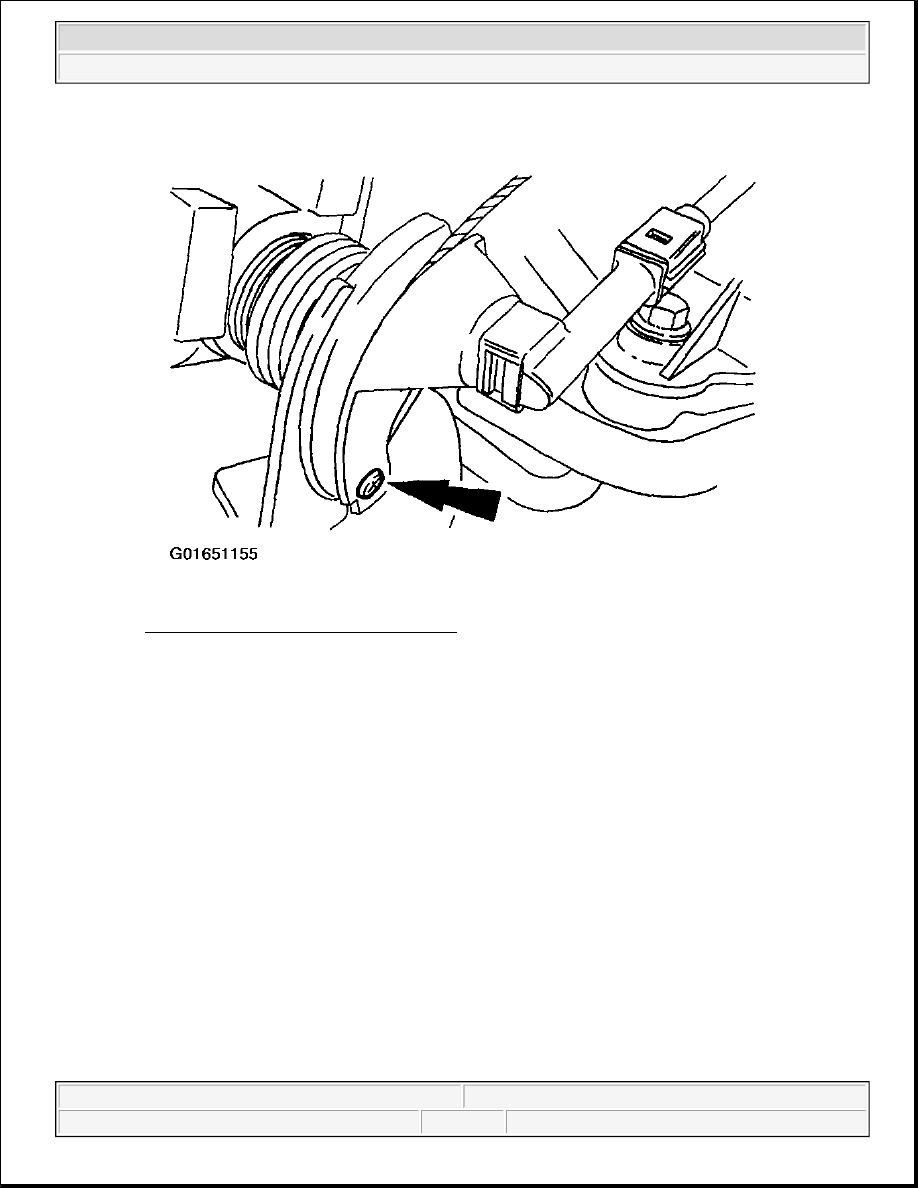

Fig. 15: Locating Accelerator Cable Clip
Courtesy of FORD MOTOR CO.

8. Depress the retaining tabs on the accelerator cable and remove the accelerator cable from the upper intake

manifold. Remove the accelerator cable from the vehicle.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Acceleration Control - F150 Pickup

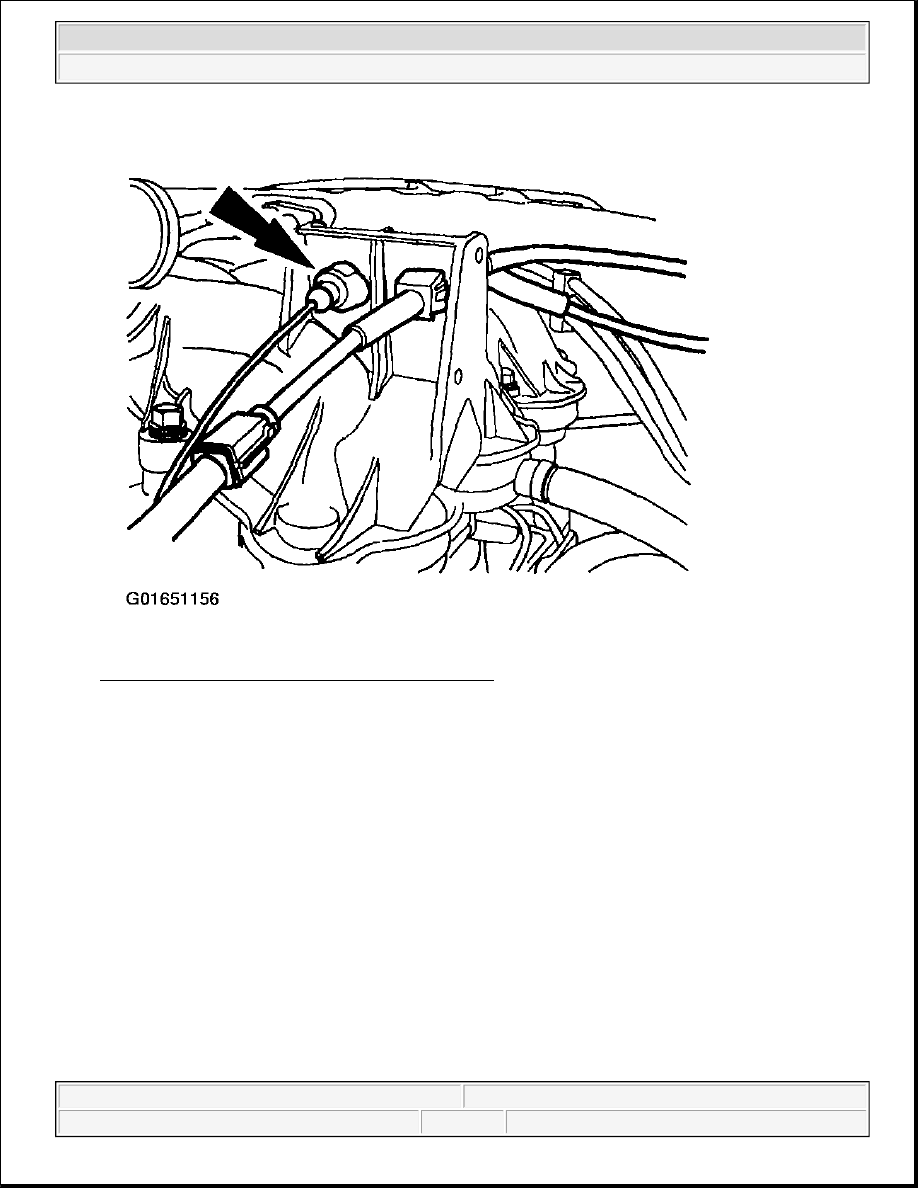

Fig. 16: Removing Accelerator Cable From Vehicle
Courtesy of FORD MOTOR CO.

9. To install, reverse the removal procedure.

ACCELERATOR CABLE - 4.6L

Removal and Installation

1. Disconnect the accelerator cable from the accelerator pedal and shaft.
